DDBF 4-SM Obj. číslo: 10155549 Display box for extensometers, 4-channel Contemporaneous measurement and display of 4 channels 2 analogue outputs Including analysis software InspectMaster na dotaz DPPC DS04.0-9.4 Obj. číslo: 10133691 Capacity 0...2000 bar Connector thread M4 x 0,35 Sensor diameter 4 mm na dotaz DSRC AX Obj. číslo: DSRCAX Strain ring with axial cable exit Installation without surface preparation For tension, compression or torsion measurement For cyclical applications na dotaz DSRC BT Obj. číslo: DSRCBT Strain ring with radial cable exit for tension or compression measurement Strain measurement at machine tiebars and pillars For calibration and qualification measurement Installation without surface preparation For cyclical applications na dotaz DSRC QM Obj. číslo: DSRCQM Strain ring for tension and compression measurement Installation without surface preparation Fast and simple installation thanks to quick mount latch Ideal for restricted space conditions For cyclical applications na dotaz DSRC ST Obj. číslo: DSRCST Strain ring with radial cable connector for tension or compression measurement Strain measurement at machine tiebars and pillars For calibration and qualification measurement Installation without surface preparation For cyclical applications na dotaz DSRH U/I Obj. číslo: DSRHU/I Strain probe with integrated amplifier Simple strain measurement in deep holes Characteristic curve deviation < 1% For cyclical applications Integrated amplifier with voltage or current output na dotaz DSRK Obj. číslo: 96003803 Strain measurement in deep holes Very robust design Increased lifetime with glued strain gauges Maintenance free With integrated amplifier na dotaz DSRT 22DA Obj. číslo: DSRT22DA For cyclical and static measurements, without amplifier Output signal mV/V S/G full bridge High repeatability High sensitivity na dotaz DSRT 22DD Obj. číslo: DSRT22DD For cyclical and static measurements, with integrated amplifier Voltage output ±10 VDC Excellent signal to noise ratio High sensitivity na dotaz DSRT 22DJ Obj. číslo: DSRT22DJ For cyclical and static measurements, with integrated amplifier CANopen Excellent signal to noise ratio High sensitivity na dotaz DST20 Obj. číslo: 96003910 Small dimensions 28x12x10 mm Sensor made of stainless steel, protection class IP65 Measuring ranges +/- 500 and 1000 µm/m For static and dynamic measurements Output signal 1.0 mV/V Connector M5, 4 pin, male na dotaz DST20-A102P Obj. číslo: 11231318 Measuring range ± 1000 µm/m Small dimensions 28x12x10 mm Sensor made of stainless steel, protection class IP65 For static and dynamic measurements Output signal 1.0 mV/V Connector M5, 4 pin, male na dotaz DST20-A500P Obj. číslo: 11231317 Measuring range ± 500 µm/m Small dimensions 28x12x10 mm Sensor made of stainless steel, protection class IP65 For static and dynamic measurements Output signal 1.0 mV/V Connector M5, 4 pin, male na dotaz DST53-A102I Obj. číslo: 11244542 Measuring range ± 1000 µm/m IO-Link interface for individual, application specific parameterization Minimal influence on the machine structure due to low stiffness Integrated amplifier electronics Output signal 4…20 mA, IO-Link, 2 x I/O Bore hole distance 53 mm M12 connector, 5 pin na dotaz DST53-A102L Obj. číslo: 11242320 Measuring range ± 1000 µm/m IO-Link interface for individual, application specific parameterization Minimal influence on the machine structure due to low stiffness Integrated amplifier electronics Output signal IO-Link, 2 x I/O Bore hole distance 53 mm M12 connector, 5 pin na dotaz DST53-A102P Obj. číslo: 11244540 Measuring range ±1000 µm/m Cost-effective force measurement of large forces Minimal influence on the machine structure due to low stiffness Output signal mV/V Bore hole distance 53 mm M12 connector, 5 pin, male na dotaz DST53-A102U Obj. číslo: 11242299 Measuring range ± 1000 µm/m IO-Link interface for individual, application specific parameterization Minimal influence on the machine structure due to low stiffness Integrated amplifier electronics Output signal ± 10 VDC, IO-Link, 2 x I/O Bore hole distance 53 mm M12 connector, 5 pin na dotaz DST53-A202I Obj. číslo: 11244544 Measuring range ± 2000 µm/m IO-Link interface for individual, application specific parameterization Minimal influence on the machine structure due to low stiffness Integrated amplifier electronics Output signal 4…20 mA, IO-Link, 2 x I/O Bore hole distance 53 mm M12 connector, 5 pin na dotaz DST53-A202L Obj. číslo: 11244545 Measuring range ± 2000 µm/m IO-Link interface for individual, application specific parameterization Minimal influence on the machine structure due to low stiffness Integrated amplifier electronics Output signal IO-Link, 2 x I/O Bore hole distance 53 mm M12 connector, 5 pin na dotaz DST53-A202P Obj. číslo: 11244541 Measuring range ±2000 µm/m Cost-effective force measurement of large forces Minimal influence on the machine structure due to low stiffness Output signal mV/V Bore hole distance 53 mm M12 connector, 5 pin, male na dotaz DST53-A202U Obj. číslo: 11244543 Measuring range ± 2000 µm/m IO-Link interface for individual, application specific parameterization Minimal influence on the machine structure due to low stiffness Integrated amplifier electronics Output signal ± 10 VDC, IO-Link, 2 x I/O Bore hole distance 53 mm M12 connector, 5 pin na dotaz DST53-A250I Obj. číslo: 11244457 Measuring range ± 250 µm/m IO-Link interface for individual, application specific parameterization Minimal influence on the machine structure due to low stiffness Integrated amplifier electronics Output signal 4…20 mA, IO-Link, 2 x I/O Bore hole distance 53 mm M12 connector, 5 pin na dotaz DST53-A250L Obj. číslo: 11244458 Measuring range ± 250 µm/m IO-Link interface for individual, application specific parameterization Minimal influence on the machine structure due to low stiffness Integrated amplifier electronics Output signal IO-Link, 2 x I/O Bore hole distance 53 mm M12 connector, 5 pin na dotaz DST53-A250P Obj. číslo: 11244459 Measuring range ±250 µm/m Cost-effective force measurement of large forces Minimal influence on the machine structure due to low stiffness Output signal mV/V Bore hole distance 53 mm M12 connector, 5 pin, male na dotaz DST53-A250U Obj. číslo: 11244456 Measuring range ± 250 µm/m IO-Link interface for individual, application specific parameterization Minimal influence on the machine structure due to low stiffness Integrated amplifier electronics Output signal ± 10 VDC, IO-Link, 2 x I/O Bore hole distance 53 mm M12 connector, 5 pin na dotaz DST53-AxxxI Obj. číslo: 96003910 IO-Link interface for individual, application specific parameterization Minimal influence on the machine structure due to low stiffness Specifically adapatable measuring ranges up to 0... ± 2000 µm/m Integrated amplifier electronics Output signal 4…20 mA, IO-Link, 2 x I/O Bore hole distance 53 mm M12 connector, 5 pin na dotaz DST53-AxxxL Obj. číslo: 96003910 IO-Link interface for individual and application specific parameterization Minimal influence on the machine structure due to low stiffness Specifically adaptable measuring ranges up to ± 2000 µm/m Integrated amplifier electronics Output signal IO-Link with 2 x I/O Bore hole distance 53 mm M12 connector, 5 pin, male na dotaz DST53-AxxxP Obj. číslo: 96003910 Cost-effective force measurement of large forces Minimal influence on the machine structure due to low stiffness Measuring ranges ± 250, ±1000, ± 2000 µm/m Output signal mV/V Bore hole distance 53 mm M12 connector, 5 pin, male na dotaz DST53-AxxxU Obj. číslo: 96003910 IO-Link interface for individual and application specific parameterization Minimal influence on the machine structure due to low stiffness Specifically adaptable measuring ranges up to ± 2000 µm/m Integrated amplifier electronics Output signal ± 10 VDC, IO-Link, 2 x I/O Bore hole distance 53 mm M12 connector, 5 pin, male na dotaz DST53-Z100I Obj. číslo: 11706115 Measuring range 0 ... 100 µm/m 1:1 replacement for former DSRT 22DB-S5-0100/T - Art.: 10161437 Cost-effective force measurement of large forces Minimal influence on the machine structure due to low stiffness Integrated amplifier electronics, output signal 4…20 mA Bore hole distance 53 mm M12 connector, 5 pin na dotaz DST53-Z100U Obj. číslo: 11244546 Measuring range ± 100 µm/m 1:1 replacement for former DSRT 22DD-S5-0100 - Art.: 10155311 Cost-effective force measurement of large forces Minimal influence on the machine structure due to low stiffness Integrated amplifier electronics, output signal ± 10 VDC Bore hole distance 53 mm M12 connector, 5 pin na dotaz DST53-Z250I Obj. číslo: 11706116 Measuring range 0 ... 250 µm/m 1:1 replacement for former DSRT 22DB-S5-0250/T - Art.: 10161828 Cost-effective force measurement of large forces Minimal influence on the machine structure due to low stiffness Integrated amplifier electronics, output signal 4…20 mA Bore hole distance 53 mm M12 connector, 5 pin na dotaz DST53-Z250U Obj. číslo: 11244547 Measuring range ± 250 µm/m 1:1 replacement for former DSRT 22DD-S5-0250 - Art.: 110154118 Cost-effective force measurement of large forces Minimal influence on the machine structure due to low stiffness Integrated amplifier electronics, output signal ± 10 VDC Bore hole distance 53 mm M12 connector, 5 pin na dotaz DST53-Z350I Obj. číslo: 11706117 Measuring range 0 ... 350 µm/m 1:1 replacement for former DSRT 22DB-S5-0350/T - Art.: 11000236 Cost-effective force measurement of large forces Minimal influence on the machine structure due to low stiffness Integrated amplifier electronics, output signal 4…20 mA Bore hole distance 53 mm M12 connector, 5 pin na dotaz DST53-Z350U Obj. číslo: 11244548 Measuring range ± 350 µm/m 1:1 replacement for former DSRT 22DD-S5-0350 - Art.: 10152732 Cost-effective force measurement of large forces Minimal influence on the machine structure due to low stiffness Integrated amplifier electronics, output signal ± 10 VDC Bore hole distance 53 mm M12 connector, 5 pin na dotaz DST53-Z500U Obj. číslo: 11244549 Measuring range ± 500 µm/m 1:1 replacement for former DSRT 22DD-S5-0500 - Art.: 10154297 Cost-effective force measurement of large forces Minimal influence on the machine structure due to low stiffness Integrated amplifier electronics, output signal ± 10 VDC Bore hole distance 53 mm M12 connector, 5 pin na dotaz DST53-Z750U Obj. číslo: 11244560 Measuring range ± 750 µm/m 1:1 replacement for former DSRT 22DD-S5-0750 - Art.: 10155312 Cost-effective force measurement of large forces Minimal influence on the machine structure due to low stiffness Integrated amplifier electronics, output signal ± 10 VDC Bore hole distance 53 mm M12 connector, 5 pin na dotaz DST55R Obj. číslo: 96003670

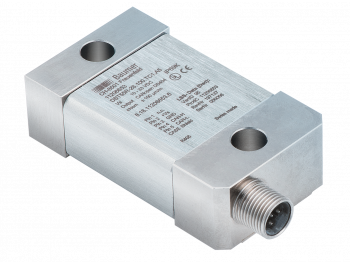

na dotaz DST55R Obj. číslo: 96003670 Highest protection rating IP 69K Tested long term seal according to proTect+ Corrosion protection C5-M Measuring range ±100 ... 1000 µm/m Output signal ± 10 VDC, CANopen Integrated amplifier electronics na dotaz DST55R Obj. číslo: 96003670
na dotaz DST55R-28.100.TC1.A5 Obj. číslo: 11206653 Measuring range ±100 µm/m Highest protection class IP 68/69K Tested long term seal according to proTect+ Corrosion protection C5-M Output signal CANopen Integrated amplifier electronics na dotaz DST55R-28.100.TI1.A5 Obj. číslo: 11707525 Measuring range ±100 µm/m Highest protection rating IP 69K Tested long term seal according to proTect+ Corrosion protection C5-M Output signal 4…20 mA Integrated amplifier electronics na dotaz DST55R-28.100.TU1.A5 Obj. číslo: 11206663 Measuring range ±100 µm/m Highest protection rating IP 69K Tested long term seal according to proTect+ Corrosion protection C5-M Output signal ± 10 VDC Integrated amplifier electronics na dotaz DST55R-28.102.TC1.A5 Obj. číslo: 11206662 Measuring range ±1000 µm/m Highest protection class IP 68/69K Tested long term seal according to proTect+ Corrosion protection C5-M Output signal CANopen Integrated amplifier electronics na dotaz DST55R-28.102.TI1.A5 Obj. číslo: 11707528 Measuring range ±1000 µm/m Highest protection rating IP 69K Tested long term seal according to proTect+ Corrosion protection C5-M Output signal 4…20 mA Integrated amplifier electronics na dotaz DST55R-28.102.TU1.A5 Obj. číslo: 11206666 Measuring range ±1000 µm/m Highest protection rating IP 69K Tested long term seal according to proTect+ Corrosion protection C5-M Output signal ± 10 VDC Integrated amplifier electronics na dotaz DST55R-28.202.TC1.A5 Obj. číslo: 11236366 Measuring range ±2000 µm/m Highest protection class IP 68/69K Tested long term seal according to proTect+ Corrosion protection C5-M Output signal CANopen Integrated amplifier electronics na dotaz DST55R-28.202.TI1.A5 Obj. číslo: 11707529 Measuring range ±2000 µm/m Highest protection rating IP 69K Tested long term seal according to proTect+ Corrosion protection C5-M Output signal 4…20 mA Integrated amplifier electronics na dotaz DST55R-28.202.TU1.A5 Obj. číslo: 11707530 Measuring range ±2000 µm/m Highest protection rating IP 69K Tested long term seal according to proTect+ Corrosion protection C5-M Output signal ± 10 VDC Integrated amplifier electronics na dotaz
