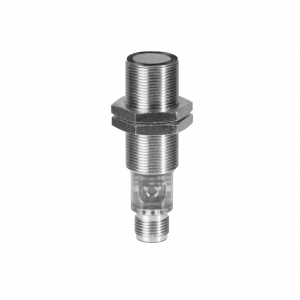

UR18.TB0.2-ZZZZ.9SF

Name: AJP-tech spol. s.r.o.
Address: Hudcova 533/78c, Medlánky, Brno, 61200, CZ
Telephone: +420 544 525 210
Price range: $$

emitter
0… 2000 mm
connector M12 5 pin
-25 … 65 °C
IP 69

Objednací číslo: 11200648
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák

Technik specialista pro průmyslové snímače
BAUMER

+420 733 533 400

jaroslav.dancak@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Vysílač / přijímač:	Emitter
Meřicí rozsah:	0 - 2000 mm
Maximální vzdálenost rozsahu Sde:	0 - 2000 mm
Frekvence zvuku:	200 kHz
Indikace napájení:	LED green

Elektrické parametry

Rozsah napájecího napětí +Vs:	12 - 30 VDC
Běžná spotřeba proudu:	25 mA
Zbytkové zvlnění:	< 10 % Vs
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes, Vs to GND

Mechanické parametry

Konstrukce:	Cylindrical threaded
Materiál pouzdra:	Stainless steel (V2A) / TR90
Povrch aktivní části:	PEEK
Šířka \| průměr:	18 mm
Výška \| Délka:	64 mm
Způsoby připojení:	Connector M12 5 pin

Okolní podmínky

Pracovní teplota:	-25 - +65 °C
Skladovací teplota:	-40 - +75 °C
Třída krytí:	IP 69
Krytí (připojení):	IP 67

Nákresy

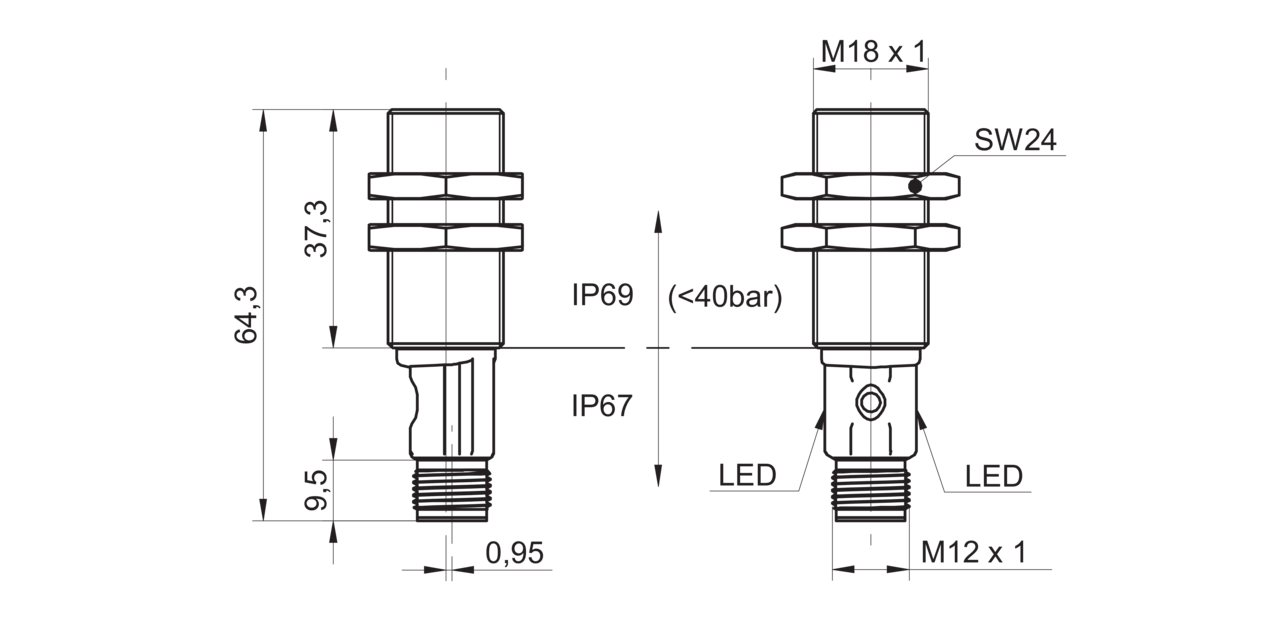

Výkresy

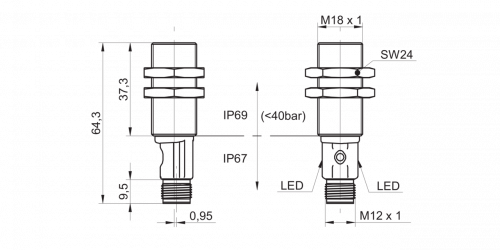

4624-UR18-xxx.2-S14-1.png | stáhnout (png, 2025-07-12 03:06:55)

Diagram připojení

Zchn-4001.png | stáhnout (png, 2025-07-11 17:28:23)

Ke stažení

Datový list

Data sheet – UR18.TB0.2-ZZZZ.9SF | stáhnout | zobrazit (ZH, pdf, 2025-04-11 11:41:30)
Data sheet – UR18.TB0.2-ZZZZ.9SF | stáhnout | zobrazit (DE, pdf, 2025-04-11 11:41:30)
Data sheet – UR18.TB0.2-ZZZZ.9SF | stáhnout | zobrazit (EN, pdf, 2025-04-11 11:41:30)

Rychlý start

Quickstart - UR18 | stáhnout | zobrazit (EN/DE/FR/IT/ES/ZH, pdf, 2025-04-11 11:41:28)

Příslušenství

Obsahuje:Vhodný přijímač Periferie Montážní příslušenství Kabely s volným koncem LED-Kabely s volným koncem Kabely

Vhodný přijímač
