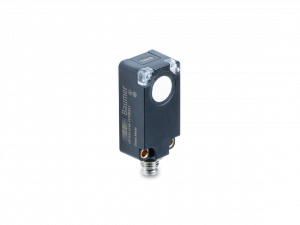

UF200.RA0-GP1J.72N

Most reliable object detection through barrier principle
Flexible parameterization and additional diagnostic data thanks to IO-Link
High performance in compact housing
Metal connector

Objednací číslo: 11708351
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák

Technik specialista pro průmyslové snímače
BAUMER

+420 733 533 400

jaroslav.dancak@ajptech.cz

Parametry

Nákresy

Diagramy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Meřicí rozsah:	0 - 1000 mm
Poloha odrazky:	20 - 1000 mm
Natavitelná tolerance vzdálenosti odrazky (běžná):	± 2,5 % Sde
Nastavitelná tolerance vzdálenosti odrazky (limitní):	± 5 % Sde
Verze:	IO-Link
Opakovatelnost:	0.5 mm
Doba odezvy:	< 24 ms
doba odezvy:	< 60 ms
Teplotní drift:	< 2 % of distance to target Sde
Teplotní drift po zapnutí:	Compensated after 15 min.
Frekvence zvuku:	220 kHz
Nastavení:	qTeach, line-Teach, IO-Link
Pomůcka pro zaměření:	Light indicator flashing
Světelný indikátor:	LED yellow
Indikace napájení:	LED green
Odklon od osy:	< 2°

Elektrické parametry

Rozsah napájecího napětí +Vs:	12 - 30 VDC
Běžná spotřeba proudu:	12 mA
Výstupní obvod:	Push-pull
Výstupní proud:	<100 mA
Pokles napětí Vd:	<3 VDC
Zbytkové zvlnění:	< 10 % Vs
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes, Vs to GND

Komunikační rozhraní

Rozhraní:	IO-Link V1.1
Modulační rychlost (baud rate):	38.4 kBaud (COM 2)
Čas cyklu:	≥ 12 ms
IO-Link připojení:	Class A
Další údaje:	Distance Excess gain Operating cycles Operating hours Boot cycles Operating voltage Device temperature Histograms
Nastavitelné parametry:	Switching point Switching hysteresis Measured value filtering Time filters LED status indicators Output logic Output circuit Counter Beam forming Analog output characteristic Deactivate the sensor element Find Me function

Mechanické parametry

Konstrukce:	Rectangular
Materiál pouzdra:	Plastic (ASA, PMMA)
Šířka \| průměr:	20.5 mm
Výška \| Délka:	41 mm
Hloubka:	15 mm
Způsoby připojení:	Connector M8 4 pin

Okolní podmínky

Pracovní teplota:	-25 - +65 °C
Skladovací teplota:	-25 - +75 °C
Třída krytí:	IP 67

Příslušenství

Obsahuje:Periferie Montážní příslušenství Kabely s volným koncem LED-Kabely s volným koncem Kabely LED-Připojovací kabely

Periferie

Foto	Produkt (6)
	CM50I.EC-11261572
	CM50I.EIP-11261573
	CM50I.PN-11261571
	SensControl - Wireless IO-Link Master
	USB-C IO-Link Master
	ZTEST-ALL.DIGITAL - Test unit for sensors digital

Montážní příslušenství

Foto	Produkt (9)
	10150326 - Sensofix series 10 / series 20
	Mounting base
	Mounting rod 250 mm
	Mounting rod 300 mm
	Mounting rod with mounting plate holder 200 mm
	Mounting rod with mounting plate holder 250 mm
	Mounting rod with mounting plate holder 300 mm
	Two-way connector
	ZUSDF-USS.S20 - Sonic beam deflector series 20

Kabely s volným koncem

Další podobné produkty naleznete v kategorii: Kabely a konektory

Produkt (22) / Popis	Délka kabelu	Skladová dostupnost
CAM8.A4-11232537 M8, female, A-coded; 4-poles; PUR, 100 cm, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against flames and oils Halogen free	1 m	na dotaz
CAM8.A4-11232538 M8, female, A-coded; 4-poles; PUR, 200 cm, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against flames and oils Halogen free	2 m	2 ks
CAM8.A4-11232539 M8, female, A-coded; 4-poles; PUR, 300 cm, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against flames and oils Halogen free	3 m	na dotaz
CAM8.A4-11232540 M8, female, A-coded; 4-poles; PUR, 500 cm, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against flames and oils Halogen free	5 m	na dotaz
CAM8.A4-11232541 M8, female, A-coded; 4-poles; PUR, 1000 cm, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against flames and oils Halogen free	10 m	na dotaz
CAM8.A4-11232542 M8, female, A-coded; 4-poles; PUR, 1500 cm, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against flames and oils Halogen free	15 m	na dotaz
CAM8.A4-11232543 M8, female, A-coded; 4-poles; PUR, 2000 cm, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against flames and oils Halogen free	20 m	na dotaz
CAM8.A4-11232544 M8, female, A-coded; 4-poles; PUR, 2500 cm, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against flames and oils Halogen free	25 m	na dotaz
CAM8.A4-11232545 M8, female, A-coded; 4-poles; PUR, 100 cm, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames and oils Halogen free	1 m	na dotaz
CAM8.A4-11232546 M8, female, A-coded; 4-poles; PUR, 200 cm, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames and oils Halogen free	2 m	na dotaz
CAM8.A4-11232547 M8, female, A-coded; 4-poles; PUR, 300 cm, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames and oils Halogen free	3 m	na dotaz
CAM8.A4-11232548 M8, female, A-coded; 4-poles; PUR, 500 cm, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames and oils Halogen free	5 m	> 15 ks
CAM8.A4-11232549 M8, female, A-coded; 4-poles; PUR, 1000 cm, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames and oils Halogen free	10 m	na dotaz
CAM8.A4-11232550 M8, female, A-coded; 4-poles; PUR, 1500 cm, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames and oils Halogen free	15 m	na dotaz
CAM8.A4-11232551 M8, female, A-coded; 4-poles; PUR, 2000 cm, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames and oils Halogen free	20 m	na dotaz
CAM8.A4-11232552 M8, female, A-coded; 4-poles; PUR, 2500 cm, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames and oils Halogen free	25 m	na dotaz
CAM8.A4-11234992 M8, female, A-coded; 4-poles; PUR, 3000 cm, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against flames and oils Halogen free	30 m	na dotaz
CAM8.A4-11247863 M8, female, A-coded; 4-poles; PUR, 200 cm, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against flames and oils Halogen free	2 m	> 15 ks
CAM8.A4-11247865 M8, female, A-coded; 4-poles; PUR, 300 cm, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against flames and oils Halogen free	3 m	na dotaz
CAM8.A4-11247866 M8, female, A-coded; 4-poles; PUR, 500 cm, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against flames and oils Halogen free	5 m	> 15 ks
CAM8.A4-11247869 M8, female, A-coded; 4-poles; PUR, 1000 cm, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against flames and oils Halogen free	10 m	na dotaz
CAM8.A4-11247893 M8, female, A-coded; 4-poles; PUR, 200 cm, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames and oils Halogen free	2 m	> 15 ks

LED-Kabely s volným koncem

Další podobné produkty naleznete v kategorii: Kabely a konektory

Produkt (8) / Popis	Délka kabelu	Skladová dostupnost
CAM8.A4-11232553 M8, female, A-coded; 4-poles; PUR, 100 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	1 m	na dotaz
CAM8.A4-11232554 M8, female, A-coded; 4-poles; PUR, 200 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	2 m	na dotaz
CAM8.A4-11232555 M8, female, A-coded; 4-poles; PUR, 300 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	3 m	na dotaz
CAM8.A4-11232556 M8, female, A-coded; 4-poles; PUR, 500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	5 m	na dotaz
CAM8.A4-11232557 M8, female, A-coded; 4-poles; PUR, 1000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	10 m	na dotaz
CAM8.A4-11232558 M8, female, A-coded; 4-poles; PUR, 1500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	15 m	na dotaz
CAM8.A4-11232559 M8, female, A-coded; 4-poles; PUR, 2000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	20 m	na dotaz
CAM8.A4-11232560 M8, female, A-coded; 4-poles; PUR, 2500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	25 m	na dotaz

Kabely

Další podobné produkty naleznete v kategorii: Kabely a konektory

Produkt (27) / Popis	Délka kabelu	Skladová dostupnost
CAM12.A4-11230429 M12, male, A-coded, 4-poles; PUR, 100 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A4-11230430 M12, male, A-coded, 4-poles; PUR, 500 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A4-11230432 M12, male, A-coded, 4-poles; PUR, 100 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A4-11230433 M12, male, A-coded, 4-poles; PUR, 500 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A4-11230949 M12, male, A-coded, 4-poles; PUR, 200 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	2 ks
CAM12.A4-11230950 M12, male, A-coded, 4-poles; PUR, 300 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A4-11230951 M12, male, A-coded, 4-poles; PUR, 1000 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A4-11230952 M12, male, A-coded, 4-poles; PUR, 200 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	3 ks
CAM12.A4-11230953 M12, male, A-coded, 4-poles; PUR, 1000 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A4-11232951 M12, male, A-coded, 4-poles; PUR, 1500 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A4-11232952 M12, male, A-coded, 4-poles; PUR, 2000 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM12.A4-11232953 M12, male, A-coded, 4-poles; PUR, 2500 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	25 m	na dotaz
CAM12.A4-11232954 M12, male, A-coded, 4-poles; PUR, 300 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A4-11232955 M12, male, A-coded, 4-poles; PUR, 1500 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A4-11232956 M12, male, A-coded, 4-poles; PUR, 2000 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM12.A4-11232957 M12, male, A-coded, 4-poles; PUR, 2500 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	25 m	na dotaz
CAM12.A4-11235044 M12, male, A-coded, 4-poles; PUR, 60 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 360 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	60 cm	na dotaz
CAM12.A4-11235048 M12, male, A-coded, 4-poles; PUR, 60 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 360 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	60 cm	na dotaz
CAM8.A4-11230374 M8, male, A-coded, 4-poles; PUR, 100 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM8.A4-11230375 M8, male, A-coded, 4-poles; PUR, 200 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM8.A4-11230518 M8, male, A-coded, 4-poles; PUR, 20 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 cm	na dotaz
CAM8.A4-11230519 M8, male, A-coded, 4-poles; PUR, 500 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM8.A4-11231071 M8, male, A-coded, 4-poles; PUR, 300 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM8.A4-11231072 M8, male, A-coded, 4-poles; PUR, 1000 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM8.A4-11231073 M8, male, A-coded, 4-poles; PUR, 1500 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM8.A4-11233221 M8, male, A-coded, 4-poles; PUR, 2000 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM8.A4-11233222 M8, male, A-coded, 4-poles; PUR, 2500 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	25 m	na dotaz

LED-Připojovací kabely

Další podobné produkty naleznete v kategorii: Kabely a konektory

Produkt (8) / Popis	Délka kabelu	Skladová dostupnost
CAM12.A4-11230434 M12, male, A-coded, 4-poles; PUR, 100 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	1 m	na dotaz
CAM12.A4-11230435 M12, male, A-coded, 4-poles; PUR, 500 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	5 m	na dotaz
CAM12.A4-11230954 M12, male, A-coded, 4-poles; PUR, 200 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	2 m	na dotaz
CAM12.A4-11230955 M12, male, A-coded, 4-poles; PUR, 1000 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	10 m	na dotaz
CAM12.A4-11232958 M12, male, A-coded, 4-poles; PUR, 300 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	3 m	na dotaz
CAM12.A4-11232959 M12, male, A-coded, 4-poles; PUR, 1500 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	15 m	na dotaz
CAM12.A4-11232960 M12, male, A-coded, 4-poles; PUR, 2000 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	20 m	na dotaz
CAM12.A4-11232961 M12, male, A-coded, 4-poles; PUR, 2500 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	25 m	na dotaz

Produkt (50)	Výstup/Rozhraní	Typ připojení	Skladová dostupnost
U300.EA0-GP2J.72CU	Push-pull IO-Link	Kabel	na dotaz
U300.EA0-GP2J.72N	Push-pull IO-Link	Konektor	na dotaz
U300.P50-GP1J.72CU	Push-pull IO-Link	Kabel	na dotaz
U300.P50-GP1J.72N	Push-pull IO-Link	Konektor	1 ks
U300.P50-GP2J.72CU - Ultrasonic 2 point proximity switch	Push-pull IO-Link	Kabel	na dotaz
U300.P50-GP2J.72N - Ultrasonic 2 point proximity switch	Push-pull IO-Link	Konektor	1 ks
U300.R50-GP1J.72CU	Push-pull IO-Link	Kabel	na dotaz
U300.R50-GP1J.72N	Push-pull IO-Link	Konektor	na dotaz
U300.TA0-ZZZX.72CU		Kabel	na dotaz
U300.TA0-ZZZX.72N		Konektor	na dotaz
U500.EB0.2-GP2J.72F	Push-pull IO-Link	Konektor	na dotaz
U500.PA0-GP1B.72CU - Ultrasonic proximity sensors - standard	Push-pull	Kabel	na dotaz
U500.PA0-GP1B.72O - Ultrasonic proximity sensors - standard	Push-pull	Konektor	1 ks
U500.RA0-GP1B.72CU - Ultrasonic retro-reflective sensors - standard	Push-pull	Kabel	na dotaz
U500.RA0-GP1B.72O - Ultrasonic retro-reflective sensors - standard	Push-pull	Konektor	na dotaz
UEDK 20P6103/S35A - Ultrasonic through beam sensors	PNP (NO)	Konektor	na dotaz
UEDK 30N5103 - Ultrasonic through beam sensors	NPN (NO / NC)	Kabel	na dotaz
UEDK 30N5103/S14 - Ultrasonic through beam sensors	NPN (NO / NC)	Konektor	na dotaz
UEDK 30P5103 - Ultrasonic through beam sensors	PNP (NO / NC)	Kabel	na dotaz
UEDK 30P5103/S14 - Ultrasonic through beam sensors	PNP (NO / NC)	Konektor	3 ks
UF200.EA0-GP2J.72CV	Push-pull IO-Link	Kabel	na dotaz
UF200.EA0-GP2J.72N	Push-pull IO-Link	Konektor	na dotaz
UF200.EB0-GP2J.72CV	Push-pull IO-Link	Kabel	na dotaz
UF200.EB0-GP2J.72N	Push-pull IO-Link	Konektor	na dotaz
UF200.P25-GP1J.72CV	Push-pull IO-Link	Kabel	na dotaz
UF200.P25-GP1J.72N	Push-pull IO-Link	Konektor	na dotaz
UF200.P25-GP2J.72CV	Push-pull IO-Link	Kabel	na dotaz
UF200.P25-GP2J.72N	Push-pull IO-Link	Konektor	na dotaz
UF200.P50-GP1J.72CV	Push-pull IO-Link	Kabel	na dotaz
UF200.P50-GP1J.72N	Push-pull IO-Link	Konektor	na dotaz
UF200.P50-GP2J.72CV	Push-pull IO-Link	Kabel	na dotaz
UF200.P50-GP2J.72N	Push-pull IO-Link	Konektor	na dotaz
UF200.PA0-GP1J.72CV	Push-pull IO-Link	Kabel	na dotaz
UF200.PA0-GP1J.72N	Push-pull IO-Link	Konektor	na dotaz
UF200.PA0-GP2J.72CV	Push-pull IO-Link	Kabel	na dotaz
UF200.PA0-GP2J.72N	Push-pull IO-Link	Konektor	na dotaz
UF200.R25-GP1J.72CV	Push-pull IO-Link	Kabel	na dotaz
UF200.R25-GP1J.72N	Push-pull IO-Link	Konektor	na dotaz
UF200.R50-GP1J.72CV	Push-pull IO-Link	Kabel	na dotaz
UF200.R50-GP1J.72N	Push-pull IO-Link	Konektor	na dotaz
UF200.RA0-GP1J.72CV	Push-pull IO-Link	Kabel	na dotaz
UF200.RA0-GP1J.72N	Push-pull IO-Link	Konektor	na dotaz
UF200.TA0-ZZZX.72CV		Kabel	na dotaz
UF200.TA0-ZZZX.72N		Konektor	na dotaz
UF200.TB0-ZZZX.72CV		Kabel	na dotaz
UF200.TB0-ZZZX.72N		Konektor	na dotaz
UNAM 12N1912/S14 - Ultrasonic proximity sensors	NPN (NO)	Konektor	na dotaz
UNAM 12N1914/S14 - Ultrasonic proximity sensors	NPN (NO)	Konektor	na dotaz
UNAM 12N1914/S14D - Ultrasonic proximity sensors - smallest objects/openings	NPN (NO)	Konektor	na dotaz
UNAM 12N3912/S14 - Ultrasonic proximity sensors	NPN (NC)	Konektor	na dotaz
