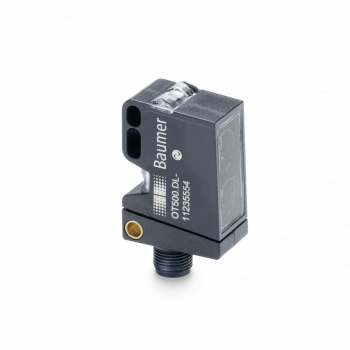

OT500.SL-GDGQJ.72F - SmartReflect Light barriers - for longer ranges

Name: AJP-tech spol. s.r.o.
Address: Hudcova 533/78c, Medlánky, Brno, 61200, CZ
Telephone: +420 544 525 210
Price range: $$

OT500.SL-GDGQJ.72F - SmartReflect Light barriers - for longer ranges

SmartReflect - Safe barrier principle without reflector
Distance measurement value via IO-Link
Reliable also on very dark and shiny objects
Manipulation-proof, simple teach-in via qTeach or line teach
Extended parameterization options and additional diagnostic data
Longest distances thanks to time of flight principle
Laser light source for an accurate switching behavior

Objednací číslo: 11240054
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák

Technik specialista pro průmyslové snímače
BAUMER

+420 733 533 400

jaroslav.dancak@ajptech.cz

Parametry

Nákresy

Diagramy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Typ:	Light barrier
Verze:	Time of Flight
Vzdálenost pozadí:	500 - 2500 mm
Skenovací rozsah:	85% ... 80% Sde
Opakovatelnost:	≤ 1200 - 4300 µm
Teplotní drift:	± 15 mm
Chyba linearity:	± 10 mm
Indikace napájení:	LED green
Výstupní indikátor:	LED yellow / LED red
Natavení vzdálenosti snímáni:	Teach-in and IO-Link
Vzdálenost k zaostření paprsku:	1500 mm
Potlačení vzájemného ovlivňování:	Yes
Typ paprsku:	Point
Odklon od osy:	< 1°

Zdroj světla

Zdroj světla:	Pulsed red laser diode
Třída laseru:	1
Vlnová délka:	680 nm

Elektrické parametry

Doba odezvy:	< 4 ms (High Speed Mode) < 8 ms (Standard Mode) < 50 ms (Long Range Mode)
Rozsah napájecího napětí +Vs:	12 - 30 VDC
Maximální spotřeba proudu (bez zátěže):	60 mA
Pokles napětí Vd:	<2 VDC
Výstupní funkce:	Dark operate, switchable
Výstupní obvod:	Push-pull / IO-Link Push-pull
Výstupní proud:	50 mA, sum of all outputs
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes

Komunikační rozhraní

Rozhraní:	IO-Link V1.1.3
Rozhraní:	DMSS
IO-Link připojení:	Class A
Modulační rychlost (baud rate):	230.4 kBaud (COM 3)
Čas cyklu:	≥ 2 ms
Procesní data:	32 Bit
Struktura procesních dat:	Bit 0 = SSC1 (distance) Bit 1 = SSC2 (distance) Bit 2 = quality Bit 3 = alarm Bit 5 = SSC4 (counter) Bit 8-15 = scale factor Bit 16-31 = 16 Bit measurement
Nastavitelné parametry:	Switching point Switching hysteresis Operation mode Time filters LED status indicators Output logic Output circuit Counter Deactivate the sensor element Find Me function Teach-in mode
Další údaje:	Distance Excess gain Operating cycles Operating hours Boot cycles Operating voltage Device temperature Histograms

Mechanické parametry

Šířka \| průměr:	18 mm
Výška \| Délka:	45 mm
Hloubka:	32 mm
Konstrukce:	Rectangular
Materiál pouzdra:	Plastic (ASA, PMMA)
Materiál krycího skla:	PMMA
Způsoby připojení:	Connector M12 5 pin

Okolní podmínky

Třída krytí:	IP 67
Pracovní teplota:	-20 - +50 °C
Skladovací teplota:	-40 - +70 °C
odolnost vůči vibracím:	IEC 60068-2-6:2008 10 g at f = 10 - 2000 Hz, duration 150 min per axis
Odolnost vůči nárazu:	IEC 60068-2-27:2009 50 g / 11 ms, 10 impulses per axis and direction

Nákresy

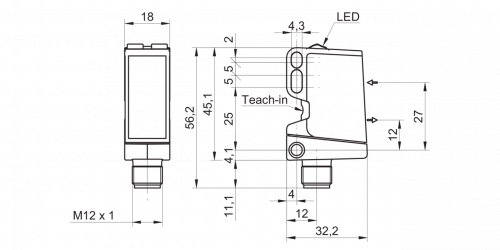

Výkresy

2988-O500-x-S14.png | stáhnout (png, 2021-01-14 10:24:41)

Diagram připojení

Zchn-6461-PP-IO-Link.png | stáhnout (png, 2021-01-14 16:17:40)

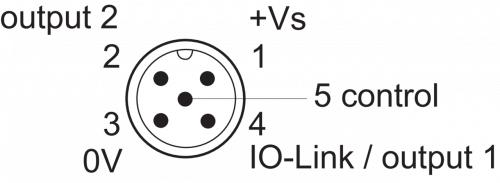

Přiřazení pinů

Zchn-5605-9.png | stáhnout (png, 2021-01-14 16:18:08)

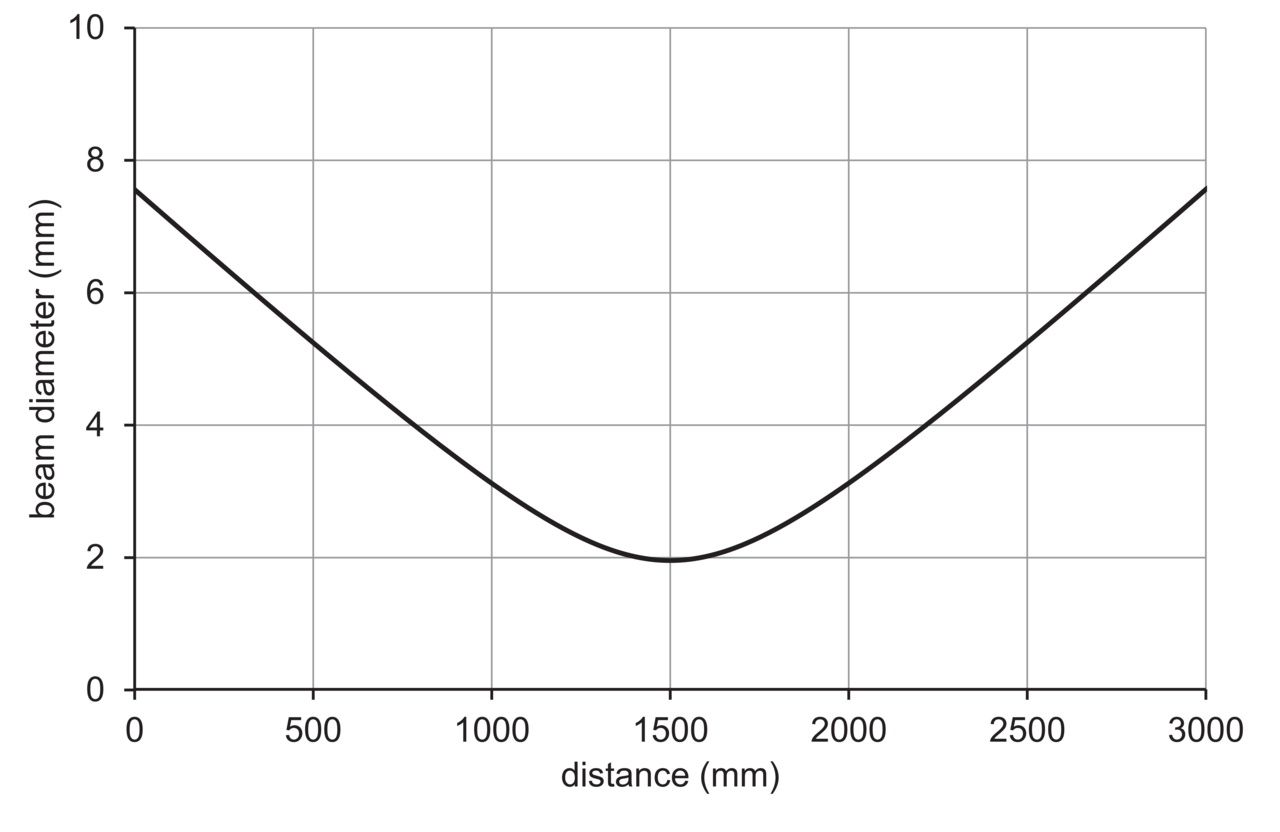

charakteristika paprsku (obvykle)

C_E_OT500_Strahlverlauf.png | stáhnout (png, 2021-12-15 13:29:53)

Varování

Laserwarnung_1.png | stáhnout (png, 2020-11-05 14:39:28)

Diagramy

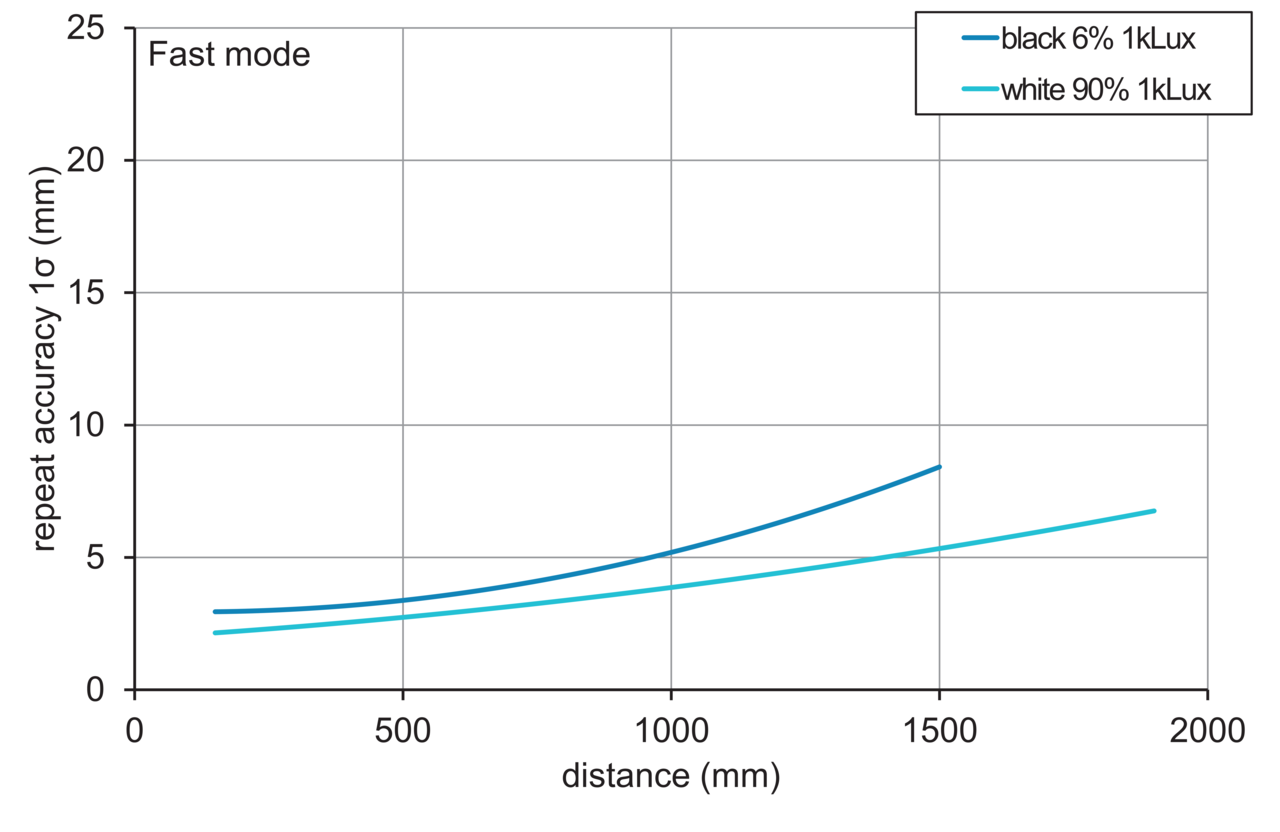

Přesnost opakování

E_OT500_Wiederholgenauigkeit_Fast.png | stáhnout (png, 2021-12-15 13:29:41)

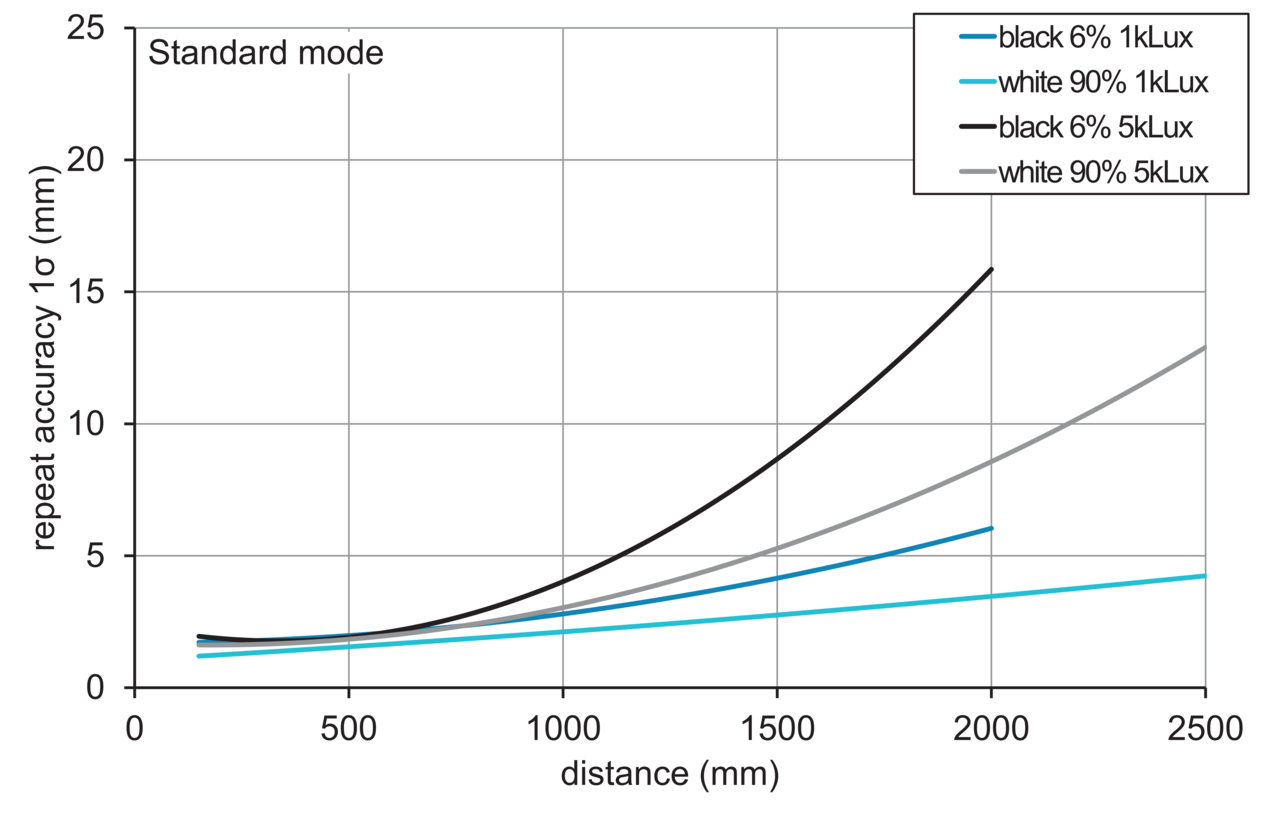

E_OT500_Wiederholgenauigkeit_Standard.png | stáhnout (png, 2021-12-15 13:29:41)

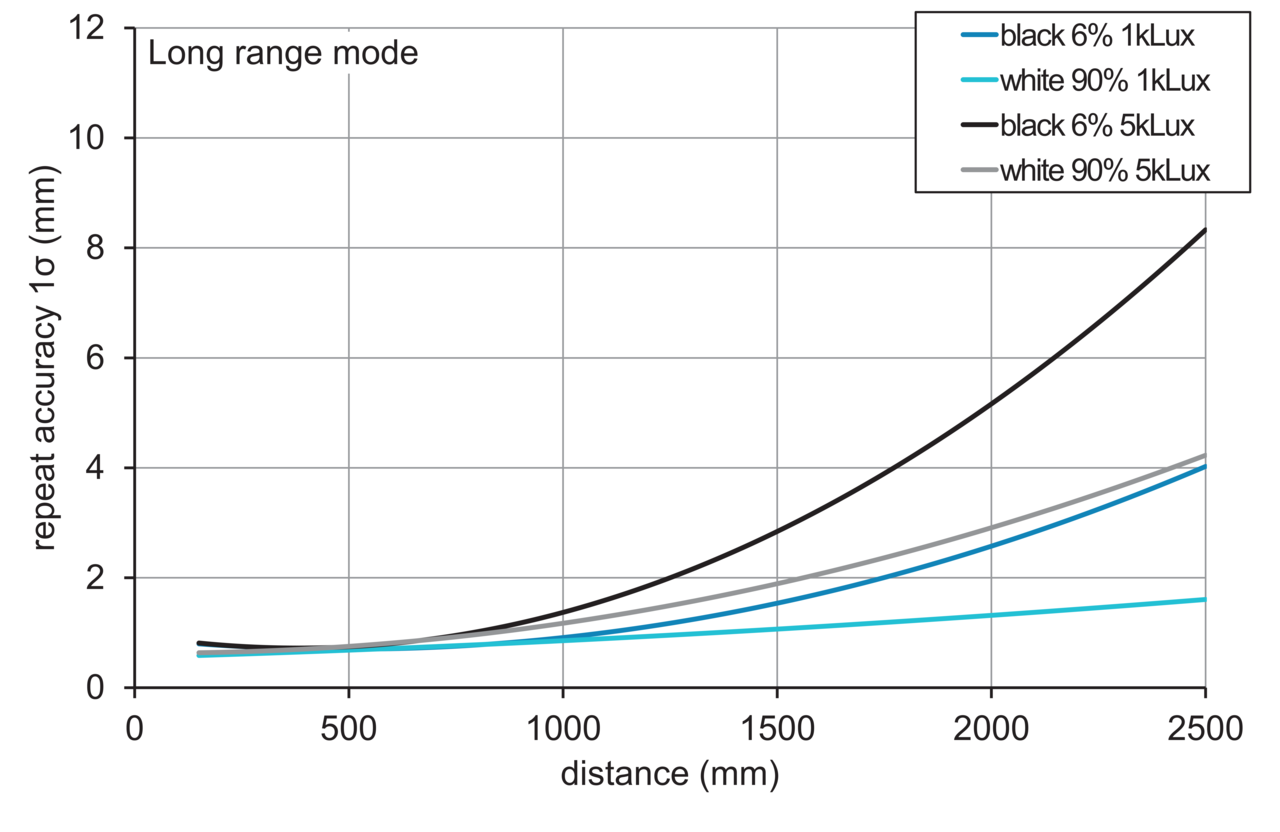

E_OT500_Wiederholgenauigkeit_Long range.png | stáhnout (png, 2021-12-15 13:29:41)

Ke stažení

Datový list

Data sheet – OT500.SL-GDGQJ.72F | stáhnout | zobrazit (DE, pdf, 2022-02-15 09:49:50)
Data sheet – OT500.SL-GDGQJ.72F | stáhnout | zobrazit (EN, pdf, 2022-02-15 09:49:32)
Data sheet – OT500.SL-GDGQJ.72F | stáhnout | zobrazit (ZH, pdf, 2021-12-23 13:29:25)

Rychlý start

Quickstart - OT500 | stáhnout | zobrazit (EN/DE/FR/ES/IT/ZH, pdf, 2023-01-11 12:09:33)

Certifikáty/ osvědčení

Baumer_OT500_ML_DoC_81384830.pdf | stáhnout | zobrazit (EN/DE/BG/CZ/DK/ES/FI/FR/GR/HU/IT/LT/LV/NL/NO/PL/PT/RO/SK/SI, pdf, 2024-04-05 14:38:03)

CAD

ePlan macro - 11240054 | stáhnout (edz, 2023-09-20 09:54:42)

Software

Software - IODD V1.1 (OT500SL) | stáhnout (zip, 2023-01-30 13:52:33)
