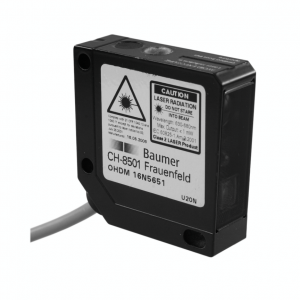

OHDM 16N5651 - Diffuse sensors with background suppression - standard

OHDM 16N5651 - Diffuse sensors with background suppression - standard
  • background suppression
  • 123 … 143 mm
  • pulsed red laser diode
  • NPN
  • no
  • cable 5 pin, 2 m
  • -5 … 50 °C
  • IP 67
Objednací číslo: 10159135
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry

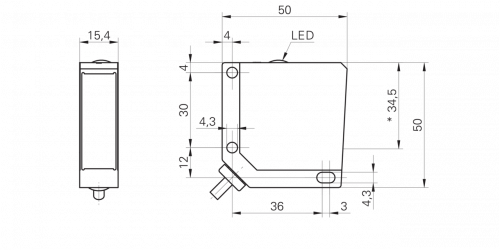

Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Základní parametry

Typ: Background suppression
Verze: Wafer mapping sensor
Snímací vzdálenost: 123 - 143 mm
Opakovatelnost: < 0.1 mm at laser focus
Indikace napájení: LED green
Výstupní indikátor: LED yellow
Natavení vzdálenosti snímáni: No
Potlačení vzájemného ovlivňování: Yes

Zdroj světla

Zdroj světla: Pulsed red laser diode
Třída laseru: 2
Vlnová délka: 650 nm

Elektrické parametry

Doba odezvy: < 5 ms
Rozsah napájecího napětí +Vs: 10 - 30 VDC
Maximální spotřeba proudu (bez zátěže): 35 mA
Běžná spotřeba proudu: 25 mA
Pokles napětí Vd: <2 VDC

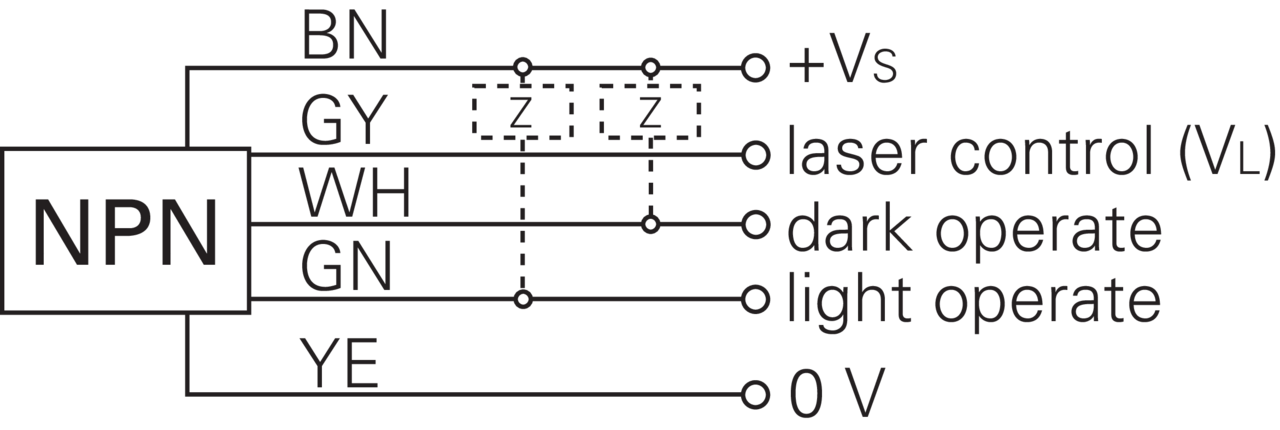

Výstupní funkce: Light / dark operate
Výstupní obvod: NPN
Výstupní proud: 200 mA
Ochrana proti zkratu: Yes
Ochrana proti přepólování: Yes

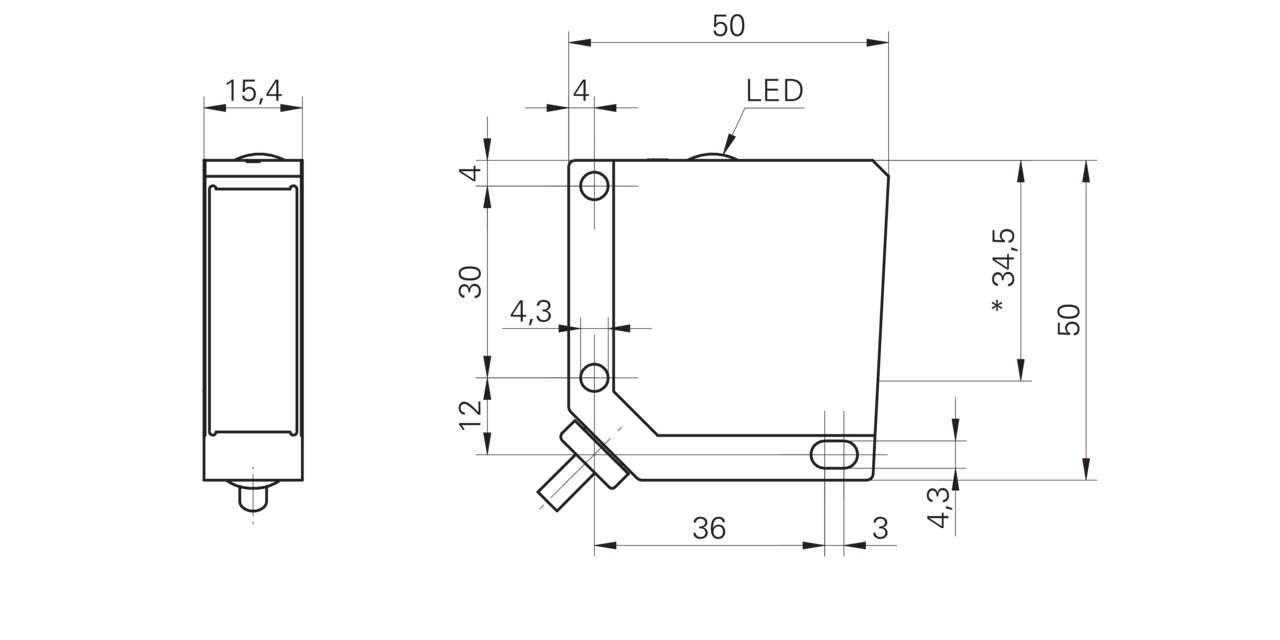

Mechanické parametry

Šířka | průměr: 15.4 mm
Výška | Délka: 50 mm
Hloubka: 50 mm
Konstrukce: Rectangular
Materiál pouzdra: Die-cast zinc
Materiál krycího skla: Glass
Způsoby připojení: Cable 5 pin, 2 m

Okolní podmínky

Třída krytí: IP 67
Pracovní teplota: -5 - +50 °C
