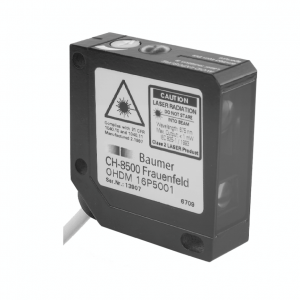

OHDM 16N5001 - Diffuse sensors with background suppression - standard

background suppression
25 … 300 mm
pulsed red laser diode
NPN
mechanical, 8 turn
cable 4 pin, 2 m
-10 … 50 °C
IP 67

Objednací číslo: 10119524
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák

Technik specialista pro průmyslové snímače
BAUMER

+420 733 533 400

jaroslav.dancak@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Typ:	Background suppression
Snímací vzdálenost:	25 - 300 mm
Snímací rozsah Tb (při Tw max.):	40 - 300 mm
Snímací rozsah Tb (při Tw min.):	5 - 25 mm
Opakovatelnost:	< 0.1 mm at laser focus
Výstupní indikátor:	LED yellow
Natavení vzdálenosti snímáni:	Mechanical, 8 turn
Vzdálenost k zaostření paprsku:	80 mm
Potlačení vzájemného ovlivňování:	Yes

Zdroj světla

Zdroj světla:	Pulsed red laser diode
Třída laseru:	2
Vlnová délka:	650 nm

Elektrické parametry

Doba odezvy:	< 0.6 ms
Rozsah napájecího napětí +Vs:	10 - 30 VDC
Maximální spotřeba proudu (bez zátěže):	35 mA
Běžná spotřeba proudu:	25 mA
Pokles napětí Vd:	<2 VDC
Výstupní funkce:	Light / dark operate
Výstupní obvod:	NPN
Výstupní proud:	200 mA
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes

Mechanické parametry

Šířka \| průměr:	15.4 mm
Výška \| Délka:	50 mm
Hloubka:	50 mm
Konstrukce:	Rectangular
Materiál pouzdra:	Die-cast zinc
Materiál krycího skla:	Glass
Způsoby připojení:	Cable 4 pin, 2 m

Okolní podmínky

Třída krytí:	IP 67
Pracovní teplota:	-10 - +50 °C
