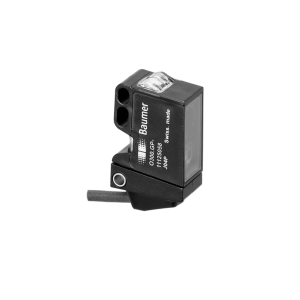

O300.GP-GW1B.72NU - Diffuse sensors with background suppression - miniature

O300.GP-GW1B.72NU - Diffuse sensors with background suppression - miniature
  • background suppression
  • 30 … 200 mm
  • pulsed PinPoint LED
  • push-pull
  • qTeach / external
  • flylead connector M8, L=200 mm
  • -25 … 60 °C
  • IP 67
Objednací číslo: 11143644
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry
Nákresy
Diagramy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Základní parametry

Typ: Background suppression
Snímací vzdálenost: 30 - 200 mm
Snímací rozsah: 15 - 200 mm
Indikace napájení: LED green
Světelný indikátor: LED yellow
Natavení vzdálenosti snímáni: qTeach / external
Potlačení vzájemného ovlivňování: Yes
Odklon od osy: < 2°

Zdroj světla

Zdroj světla: Pulsed PinPoint LED
Vlnová délka: 630 nm

Elektrické parametry

Doba odezvy: < 0.49 ms
Rozsah napájecího napětí +Vs: 10 - 30 VDC
Maximální spotřeba proudu (bez zátěže): 45 mA
Běžná spotřeba proudu: 30 mA
Pokles napětí Vd: <3 VDC
Výstupní funkce: Light / dark operate
Výstupní obvod: Push-pull
Výstupní proud: 100 mA
Ochrana proti zkratu: Yes
Ochrana proti přepólování: Yes

Mechanické parametry

Šířka | průměr: 12.9 mm
Výška | Délka: 32.3 mm
Hloubka: 23 mm
Konstrukce: Rectangular
Materiál pouzdra: Plastic (ASA, PMMA)
Materiál krycího skla: PMMA
Způsoby připojení: Flylead connector M8, L=200 mm

Okolní podmínky

Třída krytí: IP 67
Pracovní teplota: -25 - +60 °C
