O200.RL.T-NV1T.72NV/FIN1_H006

Extended functional reserve capacities for maximum reliability
Long-term stable detection of transparent objects thanks to compensation of environmental influences
Parallel laser beam for uniform detection over the measuring range
qTeach - tamper-proof, simple teach-in with ferromagnetic tool
Quick mounting by means of M3 threaded bushes made of stainless steel

Objednací číslo: 11231198
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák

Technik specialista pro průmyslové snímače
BAUMER

+420 733 533 400

jaroslav.dancak@ajptech.cz

Parametry

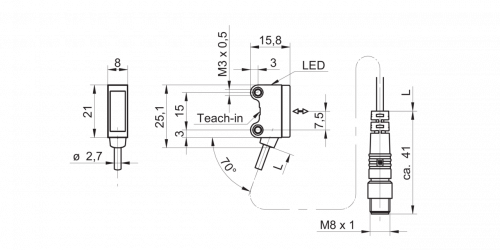

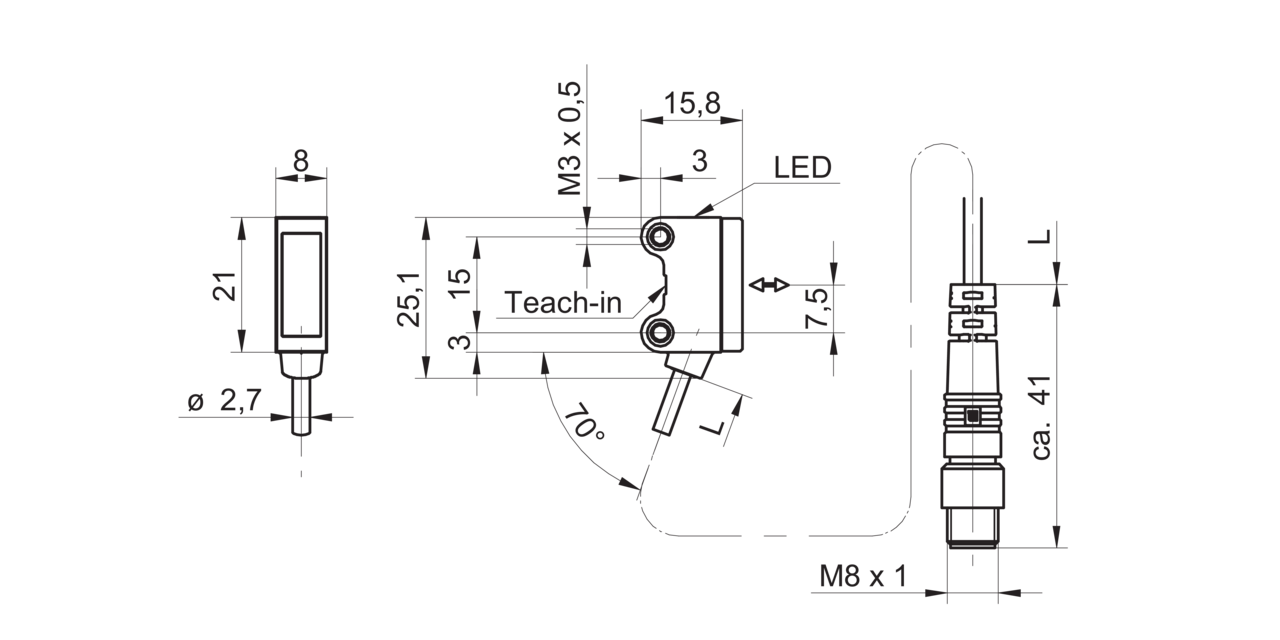

Nákresy

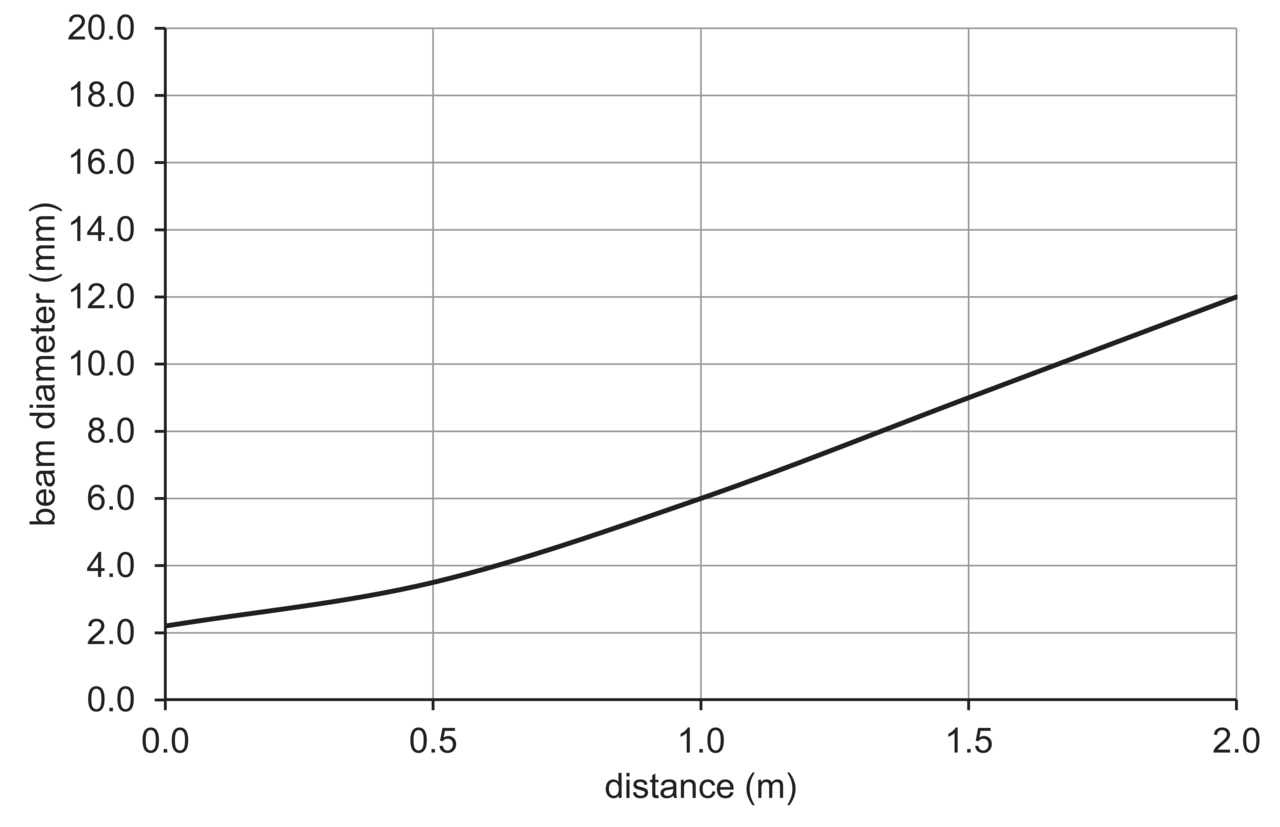

Diagramy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Typ:	Retro-reflective sensor
Verze:	Transparency object detection
Zdroj světla:	Pulsed red laser diode
Skutečný rozsah Sb:	0.8 m
jmenovitý rozsah:	1.2 m
Polarizační filtr:	Yes
Minimální útlum signálu:	10 %
Indikace znečištění:	Flashing output indicator
Výstupní indikátor:	LED yellow
Indikace napájení:	LED green
Nastavení citlivosti:	qTeach
Třída laseru:	1
Vzdálenost k zaostření paprsku:	Parallel beam
Vlnová délka:	680 nm
Potlačení vzájemného ovlivňování:	Yes
Odklon od osy:	< 1,5°

Elektrické parametry

Doba odezvy:	< 0.25 ms
Jitter:	< 0.06 ms
Rozsah napájecího napětí +Vs:	10 - 30 VDC
Maximální spotřeba proudu (bez zátěže):	20 mA (@ 10 VDC)
Běžná spotřeba proudu:	10 mA (@ 24 VDC)
Pokles napětí Vd:	<2 VDC
Výstupní funkce:	Light / dark operate
Výstupní obvod:	NPN complementary
Výstupní proud:	50 mA
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes

Mechanické parametry

Šířka \| průměr:	8 mm
Výška \| Délka:	25.1 mm
Hloubka:	15.8 mm
Konstrukce:	Rectangular
Mechanické upevnění:	Threaded sleeves M3 (stainless steel)
Materiál pouzdra:	Plastic (ASA, PMMA)
Materiál krycího skla:	PMMA
Způsoby připojení:	Flylead connector M8 4 pin, L=200 mm
Parametry kabelu:	PVC / PVC 4 x 0.08 mm²

Okolní podmínky

Pracovní teplota:	-20 - +50 °C
Třída krytí:	IP 67
