FZDK 07P6901 - Diffuse sensors with intensity difference - subminiature

intensity difference
20 … 150 mm
pulsed red LED
PNP
Teach-in
cable bottom side, 2 m
-20 … 50 °C
IP 65

Objednací číslo: 10151057
Výrobce: Baumer Electric AG

Dostupnost: 4 ks (zobrazit skladovou dostupnost)

Můžete mít ihned. Možnost osobního odběru v pracovní dny od 8:00 do 16:00 na adrese firmy po předchozí telefonické dohodě.

Zboží odesíláme okamžitě. Zboží, které závazně objednáte v pracovních dnech do 11:00 hodin, vám odešleme ještě tentýž den.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák

Technik specialista pro průmyslové snímače
BAUMER

+420 733 533 400

jaroslav.dancak@ajptech.cz

Parametry

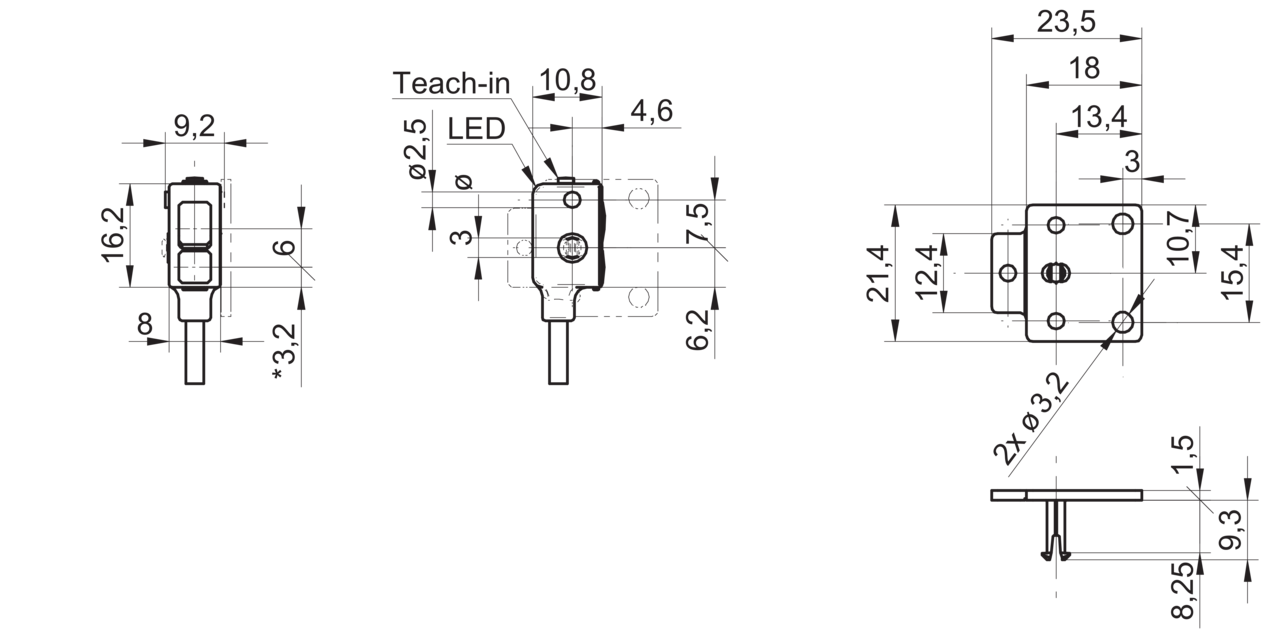

Nákresy

Ke stažení

Příslušenství

Podpora

Skladová dostupnost

Podobné produkty

Parametry

Základní parametry

Typ:	Intensity difference
Snímací vzdálenost:	20 - 150 mm
Indikace znečištění:	Flashing light indicator
Světelný indikátor:	LED green
Výstupní indikátor:	LED yellow
Nastavení citlivosti:	Teach-in
Potlačení vzájemného ovlivňování:	Yes

Zdroj světla

Zdroj světla:	Pulsed red LED
Vlnová délka:	660 nm

Elektrické parametry

Doba odezvy:	< 0.5 ms
Rozsah napájecího napětí +Vs:	11 - 30 VDC
Maximální spotřeba proudu (bez zátěže):	25 mA
Běžná spotřeba proudu:	20 mA
Pokles napětí Vd:	<1.8 VDC
Výstupní funkce:	Light / dark operate

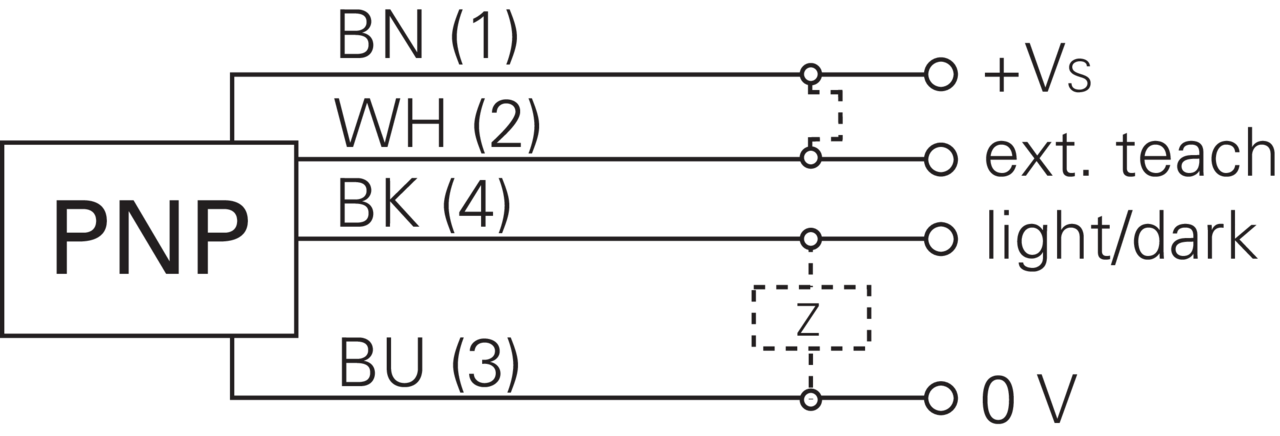

Výstupní obvod:	PNP
Výstupní proud:	100 mA
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes

Mechanické parametry

Šířka \| průměr:	8 mm
Výška \| Délka:	16.2 mm
Hloubka:	10.8 mm
Konstrukce:	Rectangular
Materiál pouzdra:	Plastic (PMMA, MABS, PA)
Materiál krycího skla:	PMMA
Způsoby připojení:	Cable bottom side, 2 m

Okolní podmínky

Třída krytí:	IP 65
Pracovní teplota:	-20 - +50 °C

Foto	Produkt (2)	Produktová skupina	Skladová dostupnost
	ZTEST-ALL.ANALOG - Test unit for sensors analog & digital	Periferie	na dotaz
	ZTEST-ALL.DIGITAL - Test unit for sensors digital	Periferie	na dotaz

Foto	Produkt (1) / Popis	Produktová skupina	Skladová dostupnost
	10150844 - Minofix mounting 07 Materiál: Poniklovaná mosaz	Montážní příslušenství	na dotaz

Název produktu	Počet na skladě
FZDK 07P6901	4 ks
