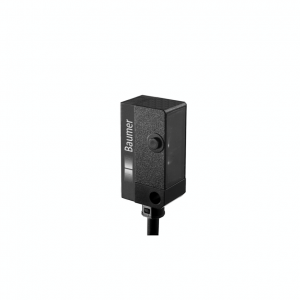

FSDK 10D9601 - Through beam sensors - miniature

FSDK 10D9601 - Through beam sensors - miniature
  • emitter
  • through beam sensor
  • 5 m
  • pulsed red LED
  • cable 4 pin, 2 m
  • -25 … 65 °C
  • IP 65
Objednací číslo: 10139964
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Základní parametry

Typ: Through beam sensor
Vysílač / přijímač: Emitter
Zdroj světla: Pulsed red LED
Skutečný rozsah Sb: 5 m
jmenovitý rozsah: 6 m
Vlnová délka: 660 nm

Elektrické parametry

Rozsah napájecího napětí +Vs: 10 - 30 VDC
Maximální spotřeba proudu (bez zátěže): 23 mA
Běžná spotřeba proudu: 15 mA
Ochrana proti přepólování: Yes

Mechanické parametry

Šířka | průměr: 10.4 mm
Výška | Délka: 27 mm
Hloubka: 14 mm
Konstrukce: Rectangular
Materiál pouzdra: Plastic (ASA)
Materiál krycího skla: PMMA
Způsoby připojení: Cable 4 pin, 2 m

Okolní podmínky

Pracovní teplota: -25 - +65 °C
Třída krytí: IP 65
