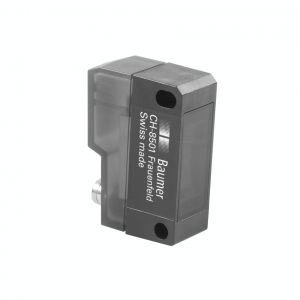

FPDK 14N5101/S35A - Retro-reflective sensors - standard

FPDK 14N5101/S35A - Retro-reflective sensors - standard
  • retro-reflective sensor
  • 7 m
  • pulsed red LED
  • NPN
  • no
  • connector M8 4 pin
  • -25 … 65 °C
  • IP 67
Objednací číslo: 11001183
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Základní parametry

Typ: Retro-reflective sensor
Zdroj světla: Pulsed red LED
Skutečný rozsah Sb: 7 m
jmenovitý rozsah: 7.2 m
Polarizační filtr: Yes
Indikace znečištění: Flashing light indicator
Světelný indikátor: LED yellow
Nastavení citlivosti: No
Vlnová délka: 660 nm
Potlačení vzájemného ovlivňování: Yes

Elektrické parametry

Doba odezvy: < 1 ms
Rozsah napájecího napětí +Vs: 10 - 30 VDC
Maximální spotřeba proudu (bez zátěže): 25 mA
Běžná spotřeba proudu: 20 mA
Pokles napětí Vd: <1.8 VDC
Výstupní funkce: Light / dark operate
Výstupní obvod: NPN
Výstupní proud: 100 mA
Ochrana proti zkratu: Yes
Ochrana proti přepólování: Yes

Mechanické parametry

Šířka | průměr: 14.8 mm
Výška | Délka: 43 mm
Hloubka: 31 mm
Konstrukce: Rectangular
Materiál pouzdra: Plastic (ASA, MABS)
Materiál krycího skla: PMMA
Způsoby připojení: Connector M8 4 pin

Okolní podmínky

Pracovní teplota: -25 - +65 °C
Třída krytí: IP 67
