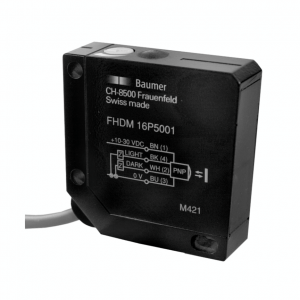

FHDM 16P5001 - Diffuse sensors with background suppression - standard

FHDM 16P5001 - Diffuse sensors with background suppression - standard
  • background suppression
  • 20 … 450 mm
  • pulsed red LED
  • PNP
  • mechanical, 5 turn
  • cable 4 pin, 2 m
  • -25 … 65 °C
  • IP 67
Objednací číslo: 10232117
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Základní parametry

Typ: Background suppression
Snímací vzdálenost: 20 - 450 mm
Snímací rozsah Tb (při Tw max.): 20 - 450 mm
Snímací rozsah Tb (při Tw min.): 5 - 20 mm
Světelný indikátor: LED yellow
Natavení vzdálenosti snímáni: Mechanical, 5 turn
Potlačení vzájemného ovlivňování: Yes

Zdroj světla

Zdroj světla: Pulsed red LED
Vlnová délka: 660 nm

Elektrické parametry

Doba odezvy: < 1 ms
Rozsah napájecího napětí +Vs: 10 - 30 VDC
Maximální spotřeba proudu (bez zátěže): 41 mA
Běžná spotřeba proudu: 29 mA
Pokles napětí Vd: <1.8 VDC
Výstupní funkce: Light / dark operate
Výstupní obvod: PNP
Výstupní proud: 200 mA
Ochrana proti zkratu: Yes
Ochrana proti přepólování: Yes

Mechanické parametry

Šířka | průměr: 15.4 mm
Výška | Délka: 50 mm
Hloubka: 50 mm
Konstrukce: Rectangular
Materiál pouzdra: Die-cast zinc
Materiál krycího skla: PMMA
Způsoby připojení: Cable 4 pin, 2 m

Okolní podmínky

Třída krytí: IP 67
Pracovní teplota: -25 - +65 °C
