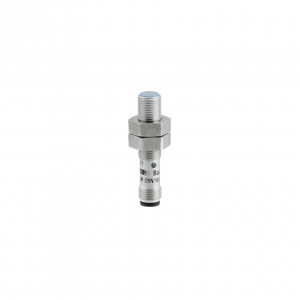

IFRM 05P17A3/S05L - Inductive proximity switch - subminiature

1,6 mm
PNP make function (NO)
connector M5
-25 … 75 °C
IP 67

Objednací číslo: 11082470
Výrobce: Baumer Electric AG

Dostupnost: 5 ks (zobrazit skladovou dostupnost)

Můžete mít ihned. Možnost osobního odběru v pracovní dny od 8:00 do 16:00 na adrese firmy po předchozí telefonické dohodě.

Zboží odesíláme okamžitě. Zboží, které závazně objednáte v pracovních dnech do 11:00 hodin, vám odešleme ještě tentýž den.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák

Technik specialista pro průmyslové snímače
BAUMER

+420 733 533 400

jaroslav.dancak@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Montážní typ:	Flush
Nominální snímací vzdálenost Sn:	1.6 mm
Hystereze:	2 - 20 % of Sr
Výstupní indikátor:	2 port LED red

Elektrické parametry

Spínací frekvence:	3 kHz
Rozsah napájecího napětí +Vs:	6 - 30 VDC
Maximální spotřeba proudu (bez zátěže):	12 mA
Výstupní obvod:	PNP make function (NO)
Pokles napětí Vd:	<2 VDC
Výstupní proud:	100 mA
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes

Mechanické parametry

Konstrukce:	Cylindrical threaded
Materiál aktivní části:	LCP
Materiál pouzdra:	Stainless steel
Rozměry:	5 mm
Délka pouzdra:	24 mm
Způsoby připojení:	Connector M5
utahovací moment max.:	2 Nm (Front: 1,4 Nm)

Okolní podmínky

Pracovní teplota:	-25 - +75 °C
Třída krytí:	IP 67

Foto	Produkt (2)	Produktová skupina	Skladová dostupnost
	ZTEST-ALL.ANALOG - Test unit for sensors analog & digital	Periferie	na dotaz
	ZTEST-ALL.DIGITAL - Test unit for sensors digital	Periferie	na dotaz

Foto	Produkt (5) / Popis	Délka kabelu	Skladová dostupnost
	ESG 05SP0200 - Connector M5, 3 pin, straight, 2 m Connecting cable for Connector type M5 2 m Unshielded		> 15 ks
	ESG 05SP0500 - Connector M5, 3 pin, straight, 5 m Connecting cable for Connector type M5 5 m Unshielded		> 15 ks
	ESG 05SP1000 - Connector M5, 3 pin, straight, 10 m Connecting cable for Connector type M5 10 m Unshielded		na dotaz
	ESW 05SP0200 - Connector M5, 3 pin, angular, 2 m Connecting cable for Connector type M5 2 m Unshielded		6 ks
	ESW 05SP0500 - Connector M5, 3 pin, angular, 5 m Connecting cable for Connector type M5 5 m Unshielded		2 ks
