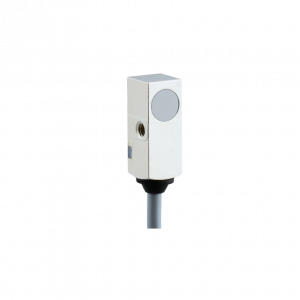

IFFM 08P1703/O1L - Inductive proximity switch - subminiature

IFFM 08P1703/O1L - Inductive proximity switch - subminiature
  • 2 mm
  • PNP make function (NO)
  • cable, 2 m
  • -25 … 75 °C
  • IP 67
Objednací číslo: 10216132
Výrobce: Baumer Electric AG
Dostupnost: 13 ks (zobrazit skladovou dostupnost)

Můžete mít ihned. Možnost osobního odběru v pracovní dny od 8:00 do 16:00 na adrese firmy po předchozí telefonické dohodě.
Zboží odesíláme okamžitě. Zboží, které závazně objednáte v pracovních dnech do 11:00 hodin, vám odešleme ještě tentýž den.
+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Skladová dostupnost
Podobné produkty

Parametry

Základní parametry

Montážní typ: Flush
Nominální snímací vzdálenost Sn: 2 mm
Hystereze: 3 - 20 % of Sr
Výstupní indikátor: LED red

Elektrické parametry

Spínací frekvence: 5 kHz
Rozsah napájecího napětí +Vs: 6 - 36 VDC
Maximální spotřeba proudu (bez zátěže): 12 mA
Výstupní obvod: PNP make function (NO)
Pokles napětí Vd: <2 VDC
Výstupní proud: 200 mA
Ochrana proti zkratu: Yes
Ochrana proti přepólování: Yes

Mechanické parametry

Konstrukce: Rectangular
Materiál aktivní části: PBT
Materiál pouzdra: Die-cast zinc nickel plated
Rozměry: 8 mm
Délka pouzdra: 20 mm
Způsoby připojení: Cable, L=2 m

Okolní podmínky

Pracovní teplota: -25 - +75 °C
Třída krytí: IP 67
