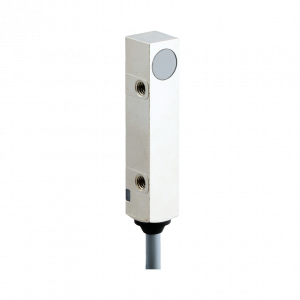

IFFM 08P1701/O1L - Inductive proximity switch - miniature

2 mm
PNP make function (NO)
cable, 2 m
-25 … 75 °C
IP 67

Objednací číslo: 10212310
Výrobce: Baumer Electric AG

Dostupnost: více než 15 ks (zobrazit skladovou dostupnost)

Můžete mít ihned. Možnost osobního odběru v pracovní dny od 8:00 do 16:00 na adrese firmy po předchozí telefonické dohodě.

Zboží odesíláme okamžitě. Zboží, které závazně objednáte v pracovních dnech do 11:00 hodin, vám odešleme ještě tentýž den.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák

Technik specialista pro průmyslové snímače
BAUMER

+420 733 533 400

jaroslav.dancak@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Skladová dostupnost

Podobné produkty

Parametry

Základní parametry

Montážní typ:	Flush
Nominální snímací vzdálenost Sn:	2 mm
Hystereze:	3 - 20 % of Sr
Výstupní indikátor:	LED red

Elektrické parametry

Spínací frekvence:	5 kHz
Rozsah napájecího napětí +Vs:	6 - 36 VDC
Maximální spotřeba proudu (bez zátěže):	12 mA
Výstupní obvod:	PNP make function (NO)
Pokles napětí Vd:	<2 VDC
Výstupní proud:	200 mA
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes

Mechanické parametry

Konstrukce:	Rectangular
Materiál aktivní části:	PBT
Materiál pouzdra:	Die-cast zinc nickel plated
Rozměry:	8 mm
Délka pouzdra:	38.5 mm
Způsoby připojení:	Cable, L=2 m

Okolní podmínky

Pracovní teplota:	-25 - +75 °C
Třída krytí:	IP 67
