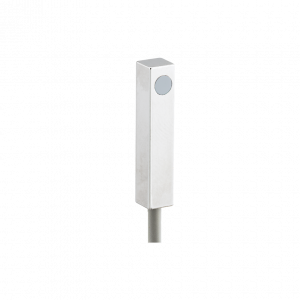

IFFM 06N15A3/O1L - Inductive proximity switch - subminiature

1 mm
NPN make function (NO)
cable, 2 m
-25 … 75 °C
IP 67

Objednací číslo: 10146220
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák

Technik specialista pro průmyslové snímače
BAUMER

+420 733 533 400

jaroslav.dancak@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Montážní typ:	Flush
Nominální snímací vzdálenost Sn:	1 mm
Hystereze:	2 - 20 % of Sr
Výstupní indikátor:	LED red (backside)

Elektrické parametry

Spínací frekvence:	5 kHz
Rozsah napájecího napětí +Vs:	6 - 30 VDC
Maximální spotřeba proudu (bez zátěže):	12 mA
Výstupní obvod:	NPN make function (NO)
Pokles napětí Vd:	<2 VDC
Výstupní proud:	200 mA
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes

Mechanické parametry

Konstrukce:	Rectangular
Materiál aktivní části:	LCP
Materiál pouzdra:	Brass nickel plated
Rozměry:	6 mm
Délka pouzdra:	20 mm
Způsoby připojení:	Cable, L=2 m

Okolní podmínky

Pracovní teplota:	-25 - +75 °C
Třída krytí:	IP 67
