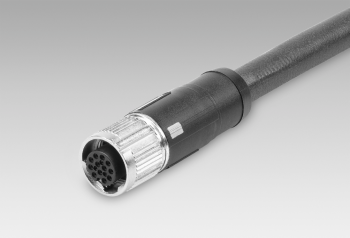

Female connector M12, 12-pin, straight, shielded, 10 m cable (ESG 34JP1000G)

Female connector M12 with screwable nut
With or without cable (shielded) in different lengths

Objednací číslo: 11048455
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ondřej Štěpánek

Produktový specialista pro průmyslové enkodéry
BAUMER

+420 733 101 651

ondrej.stepanek@ajptech.cz

Parametry

Nákresy

Ke stažení

Podpora

Podobné produkty

Parametry

Technické informace

Jmenovité napětí:	30 V
Jmenovitý proud:	1.5 A
Průměr vodiče:	1.00 +0.05 mm
Rozdělení vodičů:	12 x 0.14 mm²
Délka kabelu:	2 m, 5 m, 10 m (further length upon request)
Poloměr ohybu:	85 mm
Vnější průměr:	8.5 mm
Izolační odpor:	≥100 MΩ
Odpor vodičů:	142 Ω/km (20 °C)
Materiál:	Cable sheath: PUR black

Mechanické provedení

Ochrana EN 60529:

IP 65
IP 68
IP 69K
