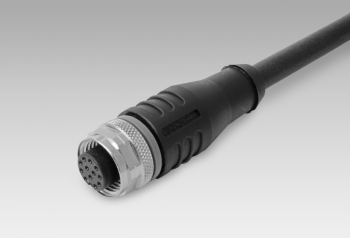

Female connector M12, 12-pin, 10 m cable (Z 201.M10)

Female connector M12, 12-pin, 10 m cable (Z 201.M10)
  • Female connector M12 with screwable nut
  • With shielded cable
  • Cable for flexible cable carriers
  • Protection IP 67, IP 69K
Objednací číslo: 11142902
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ondřej Štěpánek
Ondřej Štěpánek
Produktový manažer
BAUMER
Ondřej Štěpánek - QR Kontakt
+420 733 101 651
ondrej.stepanek@ajptech.cz
Parametry
Nákresy
Ke stažení
Podpora
Podobné produkty

Parametry

Technické informace

Rozdělení vodičů: 12 x 0.14 mm²
Délka kabelu: 1 m, 5 m, 10 m (further length upon request)
Poloměr ohybu: 10 x cable diameter
Vnější průměr: 6 mm
Okolní teplota:
  • -30...+90 °C (IP 67, IP 69K)
  • -40...+90 °C (IP 65, fixed cable)
Materiál: Cable sheath: PUR black, halogen free

Mechanické provedení

Ochrana EN 60529:
  • IP 67
  • IP 69K

Nákresy

Výkresy

  • Z201-M05-MZ-X-01.png - Female connector M12, 12-pin, 10 m cable (Z 201.M10)
    Z201-M05-MZ-X-01.png | stáhnout (png, 2025-07-11 17:20:51)

Ke stažení

Datový list
