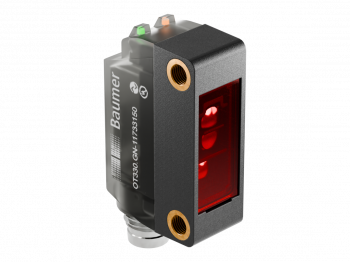

OT330.GN-PLPVT.72N - Optický snímač s potlačeným pozadím Baumer

Name: AJP-tech spol. s.r.o.
Address: Hudcova 533/78c, Medlánky, Brno, 61200, CZ
Telephone: +420 544 525 210
Price range: $$

OT330.GN-PLPVT.72N - Diffusesensor with background suppression

2.5 m sensing range thanks to time of flight principle
Reliable also on very dark and shiny objects
Manipulation-proof, simple teach-in via qTeach
Infrared laser light source suitable for use in dusty or smoky environments
Alignment Guide - visible, red light beam for aligning the infrared laser

Objednací číslo: 11731314
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

Mám dotaz

Přidat do nezávazné poptávky

Parametry

Nákresy

Diagramy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Typ:	Background suppression
Verze:	Time of Flight
Snímací vzdálenost:	0 - 2500 mm
Snímací rozsah:	0 - 2625 mm
Opakovatelnost:	< 2 - 1.5 mm
Teplotní drift:	<0,3 mm/K: <750 mm <0,04 % Sde/K: >750 mm
Indikace napájení:	LED green
Výstupní indikátor:	LED yellow
Natavení vzdálenosti snímáni:	qTeach
Potlačení vzájemného ovlivňování:	Yes
Typ paprsku:	Point
Odklon od osy:	< 1,5°

Zdroj světla

Zdroj světla:	Pulsed infrared laser diode
Třída laseru:	1
Vlnová délka:	940 nm

Elektrické parametry

Doba odezvy:	< 50 ms (Standard Mode)
Rozsah napájecího napětí +Vs:	10 - 30 VDC
Maximální spotřeba proudu (bez zátěže):	55 mA (@ 10 VDC)
Běžná spotřeba proudu:	25 mA (@ 24 VDC)
Pokles napětí Vd:	<2.5 VDC
Výstupní funkce:	Light operate, switchable
Výstupní obvod:	PNP complementary
Výstupní proud:	100 mA
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes

Mechanické parametry

Šířka \| průměr:	11 mm
Výška \| Délka:	32 mm
Hloubka:	21 mm
Konstrukce:	Rectangular
Mechanické upevnění:	Sleeve smooth (brass)
Materiál pouzdra:	Plastic (ABS, ASA, PMMA)
Materiál krycího skla:	PMMA
Způsoby připojení:	Connector M8 4 pin

Okolní podmínky

Třída krytí:	IP 67
Pracovní teplota:	-30 - +55 °C
Skladovací teplota:	-40 - +70 °C
odolnost vůči vibracím:	IEC 60068-2-6:2008 10 g at f = 10 - 2000 Hz, duration 150 min per axis
Odolnost vůči nárazu:	IEC 60068-2-27:2009 50 g / 11 ms resp. 100 g / 6 ms, 10 jolts per axis and direction

Nákresy

Výkresy

OT330_MZ_OT330.xx-xxxxx.xxN_91.png | stáhnout (png, 2025-07-12 08:28:28)

Diagram připojení

E-Zchn-0289-C-23.png | stáhnout (png, 2026-03-03 09:55:53)

Přiřazení pinů

M8-4Pol-männlich-A.png | stáhnout (png, 2025-07-12 05:55:28)

charakteristika paprsku (obvykle)

OT330_FD_Strahlverlauf_91_EN.png | stáhnout (png, 2026-06-12 08:56:37)

Varování

Laserwarnung_1.png | stáhnout (png, 2025-07-11 20:18:31)

Diagramy

Přesnost opakování

FD_OT330_GenauigkeitHighAccuracy_91.png | stáhnout (png, 2025-07-12 08:38:27)
FD_OT330_GenauigkeitStandard_91.png | stáhnout (png, 2026-06-12 08:55:41)
FD_OT330_GenauigkeitHighSpeed_91.png | stáhnout (png, 2025-07-12 08:38:00)

Hystereze

FD_OT330_HystereseHighAccuracy_91.png | stáhnout (png, 2025-07-12 08:38:40)
FD_OT330_HystereseStandard_91.png | stáhnout (png, 2026-06-12 08:55:39)
FD_OT330_HystereseHighSpeed_91.png | stáhnout (png, 2025-07-12 08:39:47)

Ke stažení

Datový list

Data sheet – OT330.GN-PLPVT.72N | stáhnout | zobrazit (DE, pdf, 2025-07-07 08:28:02)
Data sheet – OT330.GN-PLPVT.72N | stáhnout | zobrazit (EN, pdf, 2025-07-07 08:28:02)

Rychlý start

Quickstart OT330 EN/DE/FR | stáhnout | zobrazit (EN/DE/FR, pdf, 2026-02-10 17:20:06)
Quickstart OT330 IT/ZH/ES | stáhnout | zobrazit (IT/ZH/ES, pdf, 2026-02-10 17:20:05)

Certifikáty/ osvědčení

DoC/CoC - OT330 | stáhnout | zobrazit (pdf, 2026-06-12 07:04:06)

CAD

Dummy-CAD.stp | stáhnout (stp, 2024-07-02 13:03:26)
