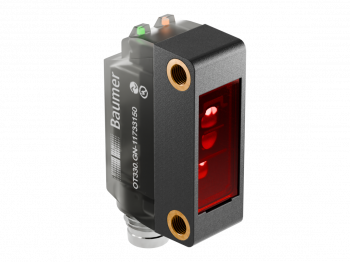

OT330.GN-GLZZJ.72N/H006 - Optický snímač s potlačeným pozadím Baumer

Name: AJP-tech spol. s.r.o.
Address: Hudcova 533/78c, Medlánky, Brno, 61200, CZ
Telephone: +420 544 525 210
Price range: $$

OT330.GN-GLZZJ.72N/H006 - Diffuse sensors with background suppression

2.5 m sensing range thanks to time of flight principle
Distance measurement value via IO-Link
Reliable also on very dark and shiny objects
Manipulation-proof, simple teach-in via qTeach or line teach
Extended parameterization options and additional diagnostic data via IO-Link
Infrared laser light source suitable for use in dusty or smoky environments
Alignment Guide - visible, red light beam for aligning the infrared laser

Objednací číslo: 11733150
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

Mám dotaz

Přidat do nezávazné poptávky

Parametry

Nákresy

Diagramy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Typ:	Background suppression
Verze:	Time of Flight
Snímací vzdálenost:	0 - 2500 mm
Snímací rozsah:	0 - 2625 mm
Opakovatelnost:	< 2 - 1.5 mm
Teplotní drift:	<0,3 mm/K: <750 mm <0,04 % Sde/K: >750 mm
Indikace napájení:	LED green
Výstupní indikátor:	LED yellow
Natavení vzdálenosti snímáni:	Teach-in and IO-Link
Potlačení vzájemného ovlivňování:	Yes
Typ paprsku:	Point
Odklon od osy:	< 1,5°

Zdroj světla

Zdroj světla:	Pulsed infrared laser diode
Třída laseru:	1
Vlnová délka:	940 nm

Elektrické parametry

Doba odezvy:	< 25 ms (High Speed Mode) < 50 ms (Standard Mode) < 200 ms (High Accuracy Mode)
Rozsah napájecího napětí +Vs:	10 - 30 VDC
Maximální spotřeba proudu (bez zátěže):	55 mA (@ 10 VDC)
Běžná spotřeba proudu:	25 mA (@ 24 VDC)
Pokles napětí Vd:	<2.5 VDC
Výstupní funkce:	Light operate
Výstupní obvod:	Push-pull / IO-Link
Výstupní proud:	100 mA
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes

Komunikační rozhraní

Rozhraní:	IO-Link V1.1.4
Rozhraní:	DMSS
IO-Link připojení:	Class A
Modulační rychlost (baud rate):	230.4 kBaud (COM 3)
Čas cyklu:	≥ 0.7 ms
Procesní data:	48 Bit
Struktura procesních dat:	Bit 0 = SSC1.1 (distance) Bit 1 = SSC1.2 (distance) Bit 2 = Uncertainty Flag Bit 3 = alarm Bit 8-15 = scale factor Bit 16-47 = 32 Bit measurement
Nastavitelné parametry:	Switching point Operation mode Time filters Locater function Output logic Sensor element function (on/off) Teach-in mode Analog output characteristic
Další údaje:	Distance Excess gain Device temperature

Mechanické parametry

Šířka \| průměr:	11 mm
Výška \| Délka:	32 mm
Hloubka:	21 mm
Konstrukce:	Rectangular
Mechanické upevnění:	Threaded sleeves M3 (brass)
Materiál pouzdra:	Plastic (ABS, ASA, PMMA)
Materiál krycího skla:	PMMA
Způsoby připojení:	Connector M8 4 pin

Okolní podmínky

Třída krytí:	IP 67
Pracovní teplota:	-30 - +55 °C
Skladovací teplota:	-40 - +70 °C
odolnost vůči vibracím:	IEC 60068-2-6:2008 10 g at f = 10 - 2000 Hz, duration 150 min per axis
Odolnost vůči nárazu:	IEC 60068-2-27:2009 50 g / 11 ms resp. 100 g / 6 ms, 10 jolts per axis and direction

Nákresy

Výkresy

OT330_MZ_OT330.xx-xxxxx.xxN_H006_91.png | stáhnout (png, 2025-07-12 08:38:25)

Diagram připojení

Zchn-5753-1.png | stáhnout (png, 2026-02-24 14:27:01)

Přiřazení pinů

M8-4Pol-männlich-A.png | stáhnout (png, 2025-07-12 05:55:28)

charakteristika paprsku (obvykle)

OT330_FD_Strahlverlauf_91_EN.png | stáhnout (png, 2026-06-12 08:56:37)

Varování

Laserwarnung_1.png | stáhnout (png, 2025-07-11 20:18:31)

Diagramy

Přesnost opakování

FD_OT330_GenauigkeitHighAccuracy_91.png | stáhnout (png, 2025-07-12 08:38:27)
FD_OT330_GenauigkeitStandard_91.png | stáhnout (png, 2026-06-12 08:55:41)
FD_OT330_GenauigkeitHighSpeed_91.png | stáhnout (png, 2025-07-12 08:38:00)

Hystereze

FD_OT330_HystereseHighAccuracy_91.png | stáhnout (png, 2025-07-12 08:38:40)
FD_OT330_HystereseStandard_91.png | stáhnout (png, 2026-06-12 08:55:39)
FD_OT330_HystereseHighSpeed_91.png | stáhnout (png, 2025-07-12 08:39:47)

Ke stažení

Datový list

Data sheet – OT330.GN-GLZZJ.72N/H006 | stáhnout | zobrazit (DE, pdf, 2025-06-13 10:31:05)
Data sheet – OT330.GN-GLZZJ.72N/H006 | stáhnout | zobrazit (EN, pdf, 2025-06-13 10:29:04)

Rychlý start

Quickstart OT330 EN/DE/FR | stáhnout | zobrazit (EN/DE/FR, pdf, 2026-02-10 17:20:06)
Quickstart OT330 IT/ZH/ES | stáhnout | zobrazit (IT/ZH/ES, pdf, 2026-02-10 17:20:05)

Pracovní instrukce

Manual OT330 (EN) | stáhnout | zobrazit (EN, pdf, 2026-02-24 16:14:05)
Manual OT330 (DE) | stáhnout | zobrazit (DE, pdf, 2026-02-24 16:12:08)

Certifikáty/ osvědčení

DoC/CoC - OT330 | stáhnout | zobrazit (pdf, 2026-06-12 07:04:06)

CAD

Dummy-CAD.stp | stáhnout (stp, 2024-07-02 13:03:26)

Software

Software – IODD V1.1 (OT330.GN_ID321) | stáhnout (zip, 2025-07-11 19:27:35)
Baumer Sensor Suite | stáhnout (zip, 2026-06-03 13:40:26)
