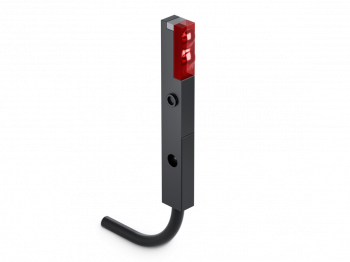

O40.GP-GLZZI.52NV - Miniaturní optický snímač s potlačeným pozadím Baumer

Name: AJP-tech spol. s.r.o.
Address: Hudcova 533/78c, Medlánky, Brno, 61200, CZ
Telephone: +420 544 525 210
Price range: $$

Outstanding reliability and unrivalled immunity against ambient light
Baumer PinPoint LED: small, homogeneous light spot with sharp edges
IO-Link for extended parametrization options and additional diagnostic data
Adjustable sensing distance Tw 10 ... 70 mm, light operate
Flylead connector M8 4 pin, 0.2 m
Slim design for mounting in extruded aluminum profiles using the profile adapter 10163299

Objednací číslo: 11727405
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Mám dotaz

Přidat do nezávazné poptávky

Parametry

Nákresy

Diagramy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Typ:	Background suppression
Snímací vzdálenost:	10 - 70 mm
Snímací rozsah:	2 - 77 mm
Indikace znečištění:	Flashing output indicator
Výstupní indikátor:	LED yellow
Natavení vzdálenosti snímáni:	IO-Link
Rozměr paprsku:	2 mm
Potlačení vzájemného ovlivňování:	Yes
Odklon od osy:	< 2°

Zdroj světla

Zdroj světla:	Pulsed PinPoint LED
Vlnová délka:	650 nm

Elektrické parametry

Doba odezvy:	< 0.5 ms
Rozsah napájecího napětí +Vs:	10 - 30 VDC
Maximální spotřeba proudu (bez zátěže):	25 mA
Běžná spotřeba proudu:	25 mA
Pokles napětí Vd:	<2 VDC
Výstupní funkce:	Light operate
Výstupní obvod:	Push-pull
Výstupní proud:	50 mA
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes

Komunikační rozhraní

Rozhraní:	IO-Link V1.1
IO-Link připojení:	Class A
Modulační rychlost (baud rate):	230.4 kBaud (COM 3)
Procesní data:	32 Bit
Struktura procesních dat:	Bit 0 = SSC1 (presence) Bit 2 = quality Bit 3 = alarm Bit 5 = SSC4 (counter) Bit 16-31 = 16 Bit measurement
Nastavitelné parametry:	Switching point Switching hysteresis Time filters LED status indicators Output logic Counter Operation mode Deactivate the sensor element Find Me function Teach-in mode
Další údaje:	Excess gain Operating cycles Device temperature

Mechanické parametry

Šířka \| průměr:	4 mm
Výška \| Délka:	45 mm
Hloubka:	6.2 mm
Konstrukce:	Rectangular
Materiál pouzdra:	Plastic (ASA)
Materiál krycího skla:	PMMA
Způsoby připojení:	Flylead connector M8 4 pin, L=200 mm
Parametry kabelu:	PVC / PVC 4 x 0.08 mm²

Okolní podmínky

Třída krytí:	IP 65
Pracovní teplota:	-10 - +50 °C

Nákresy

Výkresy

1619-FxDK_04_KS35A.png | stáhnout (png, 2025-07-30 10:41:18)

Diagram připojení

O40-AB_Push-Pull_IO-Link-4pol.png | stáhnout (png, 2025-07-12 08:40:58)

Přiřazení pinů

Zchn-3743-7.png | stáhnout (png, 2025-07-12 04:46:20)

Diagramy

Diagram snímací vzdálenosti

O40_FD_Tastweitenverschiebung_91.png | stáhnout (png, 2025-08-04 09:27:19)

Hystereze

O40_FD_Hysterese_91_1.png | stáhnout (png, 2025-08-04 09:59:15)

Ke stažení

Datový list

Data sheet – O40.GP-GLZZI.52NV | stáhnout | zobrazit (ZH, pdf, 2025-08-08 13:54:04)
Data sheet – O40.GP-GLZZI.52NV | stáhnout | zobrazit (DE, pdf, 2025-08-08 13:54:04)
Data sheet – O40.GP-GLZZI.52NV | stáhnout | zobrazit (EN, pdf, 2025-08-08 13:54:03)

Příručka k softwaru

Baumer_O40-IO-Link_DE_V1_SHB.pdf | stáhnout | zobrazit (DE, pdf, 2025-08-11 08:57:29)
Manual - O40 | stáhnout | zobrazit (pdf, 2026-05-05 15:28:02)

Certifikáty/ osvědčení

O40 - CoC / DoC | stáhnout | zobrazit (BG/CZ/DE/DK/EN/ES/FI/FR/GR/HU/IT/LT/LV/NL/NO/PL/PT/RO/SI/SK/KO, pdf, 2025-08-18 14:22:36)

CAD

Dummy-CAD.stp | stáhnout (stp, 2024-07-02 13:03:26)

Software

O40x.Gx_ID41-20250114-IODD1.1 | stáhnout (zip, 2025-08-11 08:41:05)
Baumer Sensor Suite | stáhnout (zip, 2026-06-03 13:40:26)
