ajptech.cz > Produkty > Průmyslové snímače > Baumer - Nerozřazené > O300H.GR-GW1T.PVNK/E022

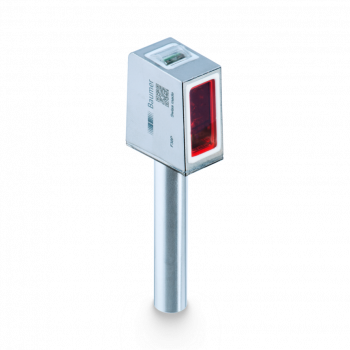

O300H.GR-GW1T.PVNK/E022 - Optický snímač s potlačeným pozadím do hygienického prostředí Baumer

Name: AJP-tech spol. s.r.o.
Address: Hudcova 533/78c, Medlánky, Brno, 61200, CZ
Telephone: +420 544 525 210
Price range: $$

background suppression
30 … 180 mm
pulsed red LED
push-pull
Teach-in
flylead connector M8, L=200 mm
-25 … 60 °C
IP 68/69K & proTect+

Objednací číslo: 11204920
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Mám dotaz

Přidat do nezávazné poptávky

Parametry

Nákresy

Diagramy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Typ:	Background suppression
Speciální typ:	Hygienic design
Verze:	Line beam
Snímací vzdálenost:	30 - 180 mm
Snímací rozsah:	15 - 180 mm
Indikace napájení:	LED green
Světelný indikátor:	LED yellow
Natavení vzdálenosti snímáni:	qTeach
Potlačení vzájemného ovlivňování:	Yes
Typ paprsku:	Line
Odklon od osy:	< 2°
Schválení \| Osvědčení:	Ecolab Adapted from EHEDG

Zdroj světla

Zdroj světla:	Pulsed red LED
Vlnová délka:	630 nm

Elektrické parametry

Doba odezvy:	< 1.5 ms
Rozsah napájecího napětí +Vs:	10 - 30 VDC
Maximální spotřeba proudu (bez zátěže):	45 mA
Běžná spotřeba proudu:	30 mA
Pokles napětí Vd:	<3 VDC
Výstupní funkce:	Light / dark operate
Výstupní obvod:	Push-pull
Výstupní proud:	100 mA
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes

Mechanické parametry

Šířka \| průměr:	16.5 mm
Výška \| Délka:	34.6 mm
Hloubka:	28.7 mm
Konstrukce:	Rectangular
Materiál pouzdra:	Stainless steel 1.4404 (V4A)
Materiál krycího skla:	PMMA
Způsoby připojení:	Connector M8 4 pin

Okolní podmínky

Třída krytí:	IP 68/69K & proTect+
Pracovní teplota:	-25 - +60 °C

Nákresy

Výkresy

3559-O300H-x.png | stáhnout (png, 2026-01-29 08:12:52)

Diagram připojení

Zchn-5264-2.png | stáhnout (png, 2025-07-11 17:34:59)

Přiřazení pinů

Zchn-3743-1.png | stáhnout (png, 2025-07-11 16:31:28)

charakteristika paprsku (obvykle)

Zchn-6733_O300_GR_Linie.png | stáhnout (png, 2025-07-12 01:18:11)

Diagramy

Diagram snímací vzdálenosti

C_E_O300.GR_E022.png | stáhnout (png, 2025-07-12 01:14:32)

Ke stažení

Datový list

Data sheet – O300H.GR-GW1T.PVNK/E022 | stáhnout | zobrazit (ZH, pdf, 2026-01-29 12:00:08)
Data sheet – O300H.GR-GW1T.PVNK/E022 | stáhnout | zobrazit (DE, pdf, 2026-01-29 12:00:06)
Data sheet – O300H.GR-GW1T.PVNK/E022 | stáhnout | zobrazit (EN, pdf, 2026-01-29 12:00:06)

Rychlý start

Baumer_O300H-GR_DE-EN-FR_MI_V1_11204920.pdf | stáhnout | zobrazit (EN/DE/FR, pdf, 2024-11-22 11:10:33)

Certifikáty/ osvědčení

FRDoC - O300 | stáhnout | zobrazit (EN/DE/BG/CZ/DK/ES/FI/FR/GR/HU/IT/LT/LV/NL/NO/PL/PT/RO/SK/SI, pdf, 2025-04-11 11:36:47)
Ecolab O300 O500 | stáhnout | zobrazit (DE, pdf, 2025-04-11 11:36:47)
Ecolab O300 O500 | stáhnout | zobrazit (EN, pdf, 2025-04-11 11:36:47)
