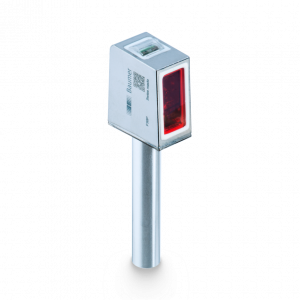

O300H.DP-GM1J.PVCK

distance measuring
30 … 300 mm
pulsed PinPoint LED
push-pull
Teach-in and IO-Link
-25 … 60 °C
IP 68/69K & proTect+

Objednací číslo: 11219272
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Parametry

Nákresy

Diagramy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Typ:	Distance measuring
Verze:	IO-Link measuring
Měřicí vzdálenost Sd:	30 - 300 mm
Nastavení:	Teach-in and IO-Link
Indikace napájení:	LED green
Světelný indikátor:	LED yellow
Rozlišení:	0.5 - 5 mm
Chyba linearity:	± 1.5 - 15 mm
Typ paprsku:	Point
Potlačení vzájemného ovlivňování:	Yes
Odklon od osy:	< 2°
Teplotní drift:	< 0,2 % Sde/K
Schválení \| Osvědčení:	Ecolab Adapted from EHEDG

Zdroj světla

Zdroj světla:	Pulsed PinPoint LED
Vlnová délka:	630 nm

Elektrické parametry

Doba odezvy:	< 0.49 ms
Rozsah napájecího napětí +Vs:	10 - 30 VDC
Maximální spotřeba proudu (bez zátěže):	45 mA
Pokles napětí Vd:	<3 VDC
Výstupní obvod:	Push-pull
Výstupní proud:	100 mA
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes

Komunikační rozhraní

Rozhraní:	IO-Link V1.1
Modulační rychlost (baud rate):	38.4 kBaud (COM 2)
Čas cyklu:	≥ 2.7 ms
Procesní data:	3 Byte
Struktura procesních dat:	Bit 0 = BDC1 Bit 2 = quality Bit 3 = alarm Bit 8-23 = 16 Bit measurement

Mechanické parametry

Šířka \| průměr:	16.5 mm
Výška \| Délka:	34.6 mm
Hloubka:	28.7 mm
Konstrukce:	Rectangular
Materiál pouzdra:	Stainless steel 1.4404 (V4A)
Materiál krycího skla:	PMMA
Způsoby připojení:	Cable 4 pin, 2 m

Okolní podmínky

Třída krytí:	IP 68/69K & proTect+
Pracovní teplota:	-25 - +60 °C
