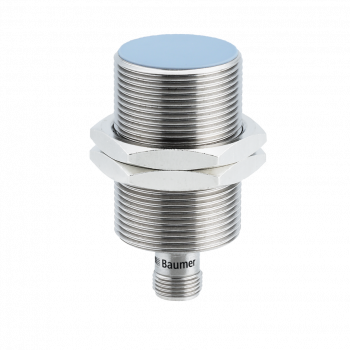

IR30.P18S.2-Q60.PV1Z.7BO - Inductive proximity sensor Baumer

IR30.P18S.2-Q60.PV1Z.7BO
  • Cylindrical standard housing for versatile use
  • Extended sensing distance for maximum reliability
  • Lowest serial dispersion due to end-of-line calibration
  • Robust even in demanding environments
  • Temperature and long-term stable switching behavior
Objednací číslo: 11725194
Výrobce: Baumer Electric AG
Dostupnost: na dotaz
Mail
Mám dotaz
+Order
Přidat do nezávazné poptávky
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Základní parametry

Montážní typ: Quasi-flush
Nominální snímací vzdálenost Sn: 18 mm
Zajištěná snímací vzdálenost Sa: ≤ 81 % of Sn
Reálná snímací vzdálenost Sr: ± 10 % von Sn
Teplotní drift: ± 10 % of Sr
Hystereze: 3 - 20 % of Sr
Výstupní indikátor: LED red
Korekční faktor: Mild steel 100 %, stainless steel 85 %, aluminum 40 %, copper 35 %
Referenční objekt: Fe360 54 x 54 x 1 mm

Elektrické parametry

Spínací frekvence: 500 Hz
Rozsah napájecího napětí +Vs: 6 - 36 VDC
Maximální spotřeba proudu (bez zátěže): 10 mA
Výstupní obvod: PNP complementary
Pokles napětí Vd: <2 VDC
Výstupní proud: 200 mA
Ochrana proti zkratu: Yes
Ochrana proti přepólování: Yes

Mechanické parametry

Konstrukce: Cylindrical threaded
Materiál aktivní části: PBT
Materiál pouzdra: Brass nickel plated
Rozměry: 30 mm
Délka pouzdra: 60 mm
Způsoby připojení: Connector M12 5 pin
utahovací moment max.: 140 Nm

Okolní podmínky

Pracovní teplota: -25 - +75 °C
Skladovací teplota: -40 - +75 °C
Třída krytí: IP 67
Odolnost vibracím: IEC 60068-2-6:2008 10 g at f = 10 - 2000 Hz, duration 150 min per axis
Odolnost vůči zkratu: IEC 60068-2-27:2009 100 g / 6 ms, 10 jolts per axis and direction

Bezpečnost

MTTF: 979 years
Diagnostikované krytí (DC): 0 %

Nákresy

Výkresy

  • IR_MZ_IR30.P15S-F60.XXXZ.7BO_91.png - IR30.P18S.2-Q60.PV1Z.7BO
    IR_MZ_IR30.P15S-F60.XXXZ.7BO_91.png | stáhnout (png, 2025-07-12 08:10:27)

Diagram připojení

  • Zchn-6100-DPV.png - IR30.P18S.2-Q60.PV1Z.7BO
    Zchn-6100-DPV.png | stáhnout (png, 2025-07-11 17:44:45)

Přiřazení pinů

  • M12-5Pol-männlich-A.png - IR30.P18S.2-Q60.PV1Z.7BO
    M12-5Pol-männlich-A.png | stáhnout (png, 2025-07-12 05:55:29)

Diagram odezvy

  • IR30_P18S-F_FD_Schaltkeule_91_EN.png - IR30.P18S.2-Q60.PV1Z.7BO
    IR30_P18S-F_FD_Schaltkeule_91_EN.png | stáhnout (png, 2025-07-12 08:00:08)

Ke stažení

Datový list

  • Data sheet – IR30.P18S.2-Q60.PV1Z.7BO | stáhnout | zobrazit (ZH, pdf, 2025-04-11 10:59:08)
  • Data sheet – IR30.P18S.2-Q60.PV1Z.7BO | stáhnout | zobrazit (DE, pdf, 2025-04-11 11:31:40)
  • Data sheet – IR30.P18S.2-Q60.PV1Z.7BO | stáhnout | zobrazit (EN, pdf, 2025-04-11 11:31:40)

Certifikáty/ osvědčení

CAD

  • Dummy-CAD.stp | stáhnout (stp, 2024-07-02 13:03:26)
