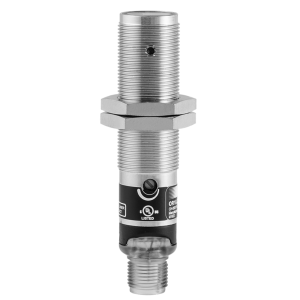

OR18.RL-NV1P.7BO - Retro-reflective sensors - standard

Objednací číslo: 11157786, Výrobce: Baumer Electric AG

retro-reflective sensor
15 m
pulsed red laser diode
NPN complementary
potentiometer, 270°
connector M12 4 pin
-10 … 55 °C
IP 67

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do poptávky

Poradím vám

Ing. Martin Bulenínec

Produktový specialista
Průmyslové snímače Baumer

+420 734 153 954

martin.buleninec@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Typ:	Retro-reflective sensor
Zdroj světla:	Pulsed red laser diode
Skutečný rozsah Sb:	15 m
jmenovitý rozsah:	16 m
Polarizační filtr:	Yes
Výstupní indikátor:	LED yellow
Indikace napájení:	LED green
Nastavení citlivosti:	Potentiometer, 270°
Třída laseru:	1
Vzdálenost k zaostření paprsku:	Parallel beam
Vlnová délka:	630 nm
Potlačení vzájemného ovlivňování:	Yes

Elektrické parametry

Doba odezvy:	< 0.34 ms
Rozsah napájecího napětí +Vs:	10 - 30 VDC
Maximální spotřeba proudu (bez zátěže):	45 mA
Běžná spotřeba proudu:	35 mA
Pokles napětí Vd:	<2 VDC
Výstupní funkce:	Light / dark operate
Výstupní obvod:	NPN complementary
Výstupní proud:	100 mA
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes

Mechanické parametry

Šířka \| průměr:	18 mm
Výška \| Délka:	81.5 mm
Design:	Cylindrical threaded
Materiál pouzdra:	Brass nickel plated
Materiál krycího skla:	PMMA
Způsoby připojení:	Connector M12 4 pin

Okolní podmínky

Pracovní teplota:	-10 - +55 °C
Třída krytí:	IP 67

Příslušenství

Obsahuje:Periferie Montážní příslušenství Kabely s volným koncem LED-Kabely s volným koncem Kabely

Periferie

Další podobné produkty naleznete v kategorii: Periferie

Foto	Produkt (2)	Produktová skupina	Skladová dostupnost
	ZTEST-ALL.ANALOG - Test unit for sensors analog & digital	Periferie	na dotaz
	ZTEST-ALL.DIGITAL - Test unit for sensors digital	Periferie	na dotaz

Montážní příslušenství

Foto	Produkt (25)
	10151658 - Sensofix series 18
	Mounting base
	Mounting base
	Mounting plate series 500 and ø18 mm
	Mounting plate series 500 and ø18 mm
	Mounting rod 200 mm
	Mounting rod 200 mm
	Mounting rod 250 mm
	Mounting rod 250 mm
	Mounting rod 300 mm
	Mounting rod 300 mm
	Mounting rod with mounting plate holder 200 mm
	Mounting rod with mounting plate holder 200 mm
	Mounting rod with mounting plate holder 250 mm
	Mounting rod with mounting plate holder 250 mm
	Mounting rod with mounting plate holder 300 mm
	Mounting rod with mounting plate holder 300 mm
	Two-way connector
	Two-way connector
	ZADAP-M18.LONG - Mounting bracket long series 18 (L design)
	ZADAP-M18.MICRO - Mounting bracket for adjustment for sensors series 18
	ZADAP-M18.SHORT - Mounting bracket short series 18 (L design)
	ZADAP-M18.STANDARD - Mounting bracket series 18
	ZADAP-M18.SWING - Mounting bracket for adjustment for sensors series 18
	ZPART-M18.NUT - Clamping nut for sensors Ø 18 mm

Kabely s volným koncem

Další podobné produkty naleznete v kategorii: Kabely a konektory

Produkt (62)	Popis	Délka kabelu	Skladová dostupnost
CAM12.A4-11230334	M12, female, A-coded, 4-poles; PUR, 200 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A4-11230335	M12, female, A-coded, 4-poles; PUR, 500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A4-11230336	M12, female, A-coded, 4-poles; PUR, 1000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A4-11230342	M12, female, A-coded, 4-poles; PUR, 200 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A4-11230343	M12, female, A-coded, 4-poles; PUR, 500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A4-11230344	M12, female, A-coded, 4-poles; PUR, 1000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A4-11230347	M12, female, A-coded, 4-poles; PUR, 200 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A4-11230349	M12, female, A-coded, 4-poles; PUR, 500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A4-11230350	M12, female, A-coded, 4-poles; PUR, 1000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A4-11230354	M12, female, A-coded, 4-poles; PUR, 200 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A4-11230355	M12, female, A-coded, 4-poles; PUR, 500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A4-11230356	M12, samice, A-kódování, 4-póly; PUR, 1000 cm, stíněný, volný konec Vhodný pro dragchain Hlava A: IP65, IP66K, IP67 Kabel: odolný vůči chemikáliím, plamenům, olejům Bez halogenů	10 m	na dotaz
CAM12.A4-11230379	M12, female, A-coded; 4-poles; TPE-S, 200 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	2 m	na dotaz
CAM12.A4-11230380	M12, female, A-coded; 4-poles; TPE-S, 500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	5 m	na dotaz
CAM12.A4-11230381	M12, female, A-coded; 4-poles; TPE-S, 1000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	10 m	na dotaz
CAM12.A4-11230382	M12, female, A-coded; 4-poles; TPE-S, 200 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	2 m	na dotaz
CAM12.A4-11230383	M12, female, A-coded; 4-poles; TPE-S, 500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	5 m	na dotaz
CAM12.A4-11230384	M12, female, A-coded; 4-poles; TPE-S, 1000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	10 m	na dotaz
CAM12.A4-11230400	M12, female, A-coded, 4-poles; PUR, 100 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A4-11230403	M12, female, A-coded, 4-poles; PUR, 100 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	4 ks
CAM12.A4-11230409	M12, female, A-coded, 4-poles; PUR, 100 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A4-11230463	M12, female, A-coded; 4-poles; TPE-S, 500 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	5 m	na dotaz
CAM12.A4-11230464	M12, female, A-coded; 4-poles; TPE-S, 500 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	5 m	na dotaz
CAM12.A4-11230929	M12, female, A-coded, 4-poles; PUR, 300 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A4-11230930	M12, female, A-coded, 4-poles; PUR, 1500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A4-11230931	M12, female, A-coded, 4-poles; PUR, 2000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM12.A4-11230934	M12, female, A-coded, 4-poles; PUR, 300 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A4-11230935	M12, female, A-coded, 4-poles; PUR, 1500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A4-11230936	M12, female, A-coded, 4-poles; PUR, 2000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM12.A4-11230939	M12, female, A-coded, 4-poles; PUR, 300 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A4-11230940	M12, female, A-coded, 4-poles; PUR, 1500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A4-11230968	M12, female, A-coded; 4-poles; TPE-S, 200 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	2 m	na dotaz
CAM12.A4-11230969	M12, female, A-coded; 4-poles; TPE-S, 1000 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	10 m	na dotaz
CAM12.A4-11230970	M12, female, A-coded; 4-poles; TPE-S, 200 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	2 m	na dotaz
CAM12.A4-11230971	M12, female, A-coded; 4-poles; TPE-S, 1000 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	10 m	na dotaz
CAM12.A4-11232793	M12, female, A-coded; 4-poles; PVC, 200 cm, free cable end Suitable for food & beverage Head A: IP65, IP68 Cable: good resistance against chemicals, flames	2 m	na dotaz
CAM12.A4-11232794	M12, female, A-coded; 4-poles; PVC, 500 cm, free cable end Suitable for food & beverage Head A: IP65, IP68 Cable: good resistance against chemicals, flames	5 m	na dotaz
CAM12.A4-11232795	M12, female, A-coded; 4-poles; PVC, 1000 cm, free cable end Suitable for food & beverage Head A: IP65, IP68 Cable: good resistance against chemicals, flames	10 m	na dotaz
CAM12.A4-11232797	M12, female, A-coded; 4-poles; PVC, 200 cm, free cable end Suitable for food & beverage Head A: IP65, IP68 Cable: good resistance against chemicals, flames	2 m	na dotaz
CAM12.A4-11232798	M12, female, A-coded; 4-poles; PVC, 500 cm, free cable end Suitable for food & beverage Head A: IP65, IP68 Cable: good resistance against chemicals, flames	5 m	na dotaz
CAM12.A4-11232799	M12, female, A-coded; 4-poles; PVC, 1000 cm, free cable end Suitable for food & beverage Head A: IP65, IP68 Cable: good resistance against chemicals, flames	10 m	na dotaz
CAM12.A4-11232883	M12, female, A-coded, 4-poles; PUR, 100 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A4-11232884	M12, female, A-coded, 4-poles; PUR, 300 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A4-11232885	M12, female, A-coded, 4-poles; PUR, 1500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A4-11232886	M12, female, A-coded, 4-poles; PUR, 2000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM12.A4-11232888	M12, female, A-coded, 4-poles; PUR, 2000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM12.A4-11232900	M12, female, A-coded; 4-poles; TPE-S, 100 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	1 m	na dotaz
CAM12.A4-11232901	M12, female, A-coded; 4-poles; TPE-S, 300 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	3 m	na dotaz
CAM12.A4-11232902	M12, female, A-coded; 4-poles; TPE-S, 1500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	15 m	na dotaz
CAM12.A4-11232903	M12, female, A-coded; 4-poles; TPE-S, 2000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	20 m	na dotaz
CAM12.A4-11232904	M12, female, A-coded; 4-poles; TPE-S, 100 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	1 m	na dotaz
CAM12.A4-11232905	M12, female, A-coded; 4-poles; TPE-S, 300 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	3 m	na dotaz
CAM12.A4-11232906	M12, female, A-coded; 4-poles; TPE-S, 1500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	15 m	na dotaz
CAM12.A4-11232907	M12, female, A-coded; 4-poles; TPE-S, 2000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	20 m	na dotaz
CAM12.A4-11232923	M12, female, A-coded; 4-poles; TPE-S, 100 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	1 m	na dotaz
CAM12.A4-11232924	M12, female, A-coded; 4-poles; TPE-S, 300 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	3 m	na dotaz
CAM12.A4-11232925	M12, female, A-coded; 4-poles; TPE-S, 1500 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	15 m	na dotaz
CAM12.A4-11232926	M12, female, A-coded; 4-poles; TPE-S, 2000 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	20 m	na dotaz
CAM12.A4-11232928	M12, female, A-coded; 4-poles; TPE-S, 100 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	1 m	na dotaz
CAM12.A4-11232929	M12, female, A-coded; 4-poles; TPE-S, 300 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	3 m	na dotaz
CAM12.A4-11232930	M12, female, A-coded; 4-poles; TPE-S, 1500 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	15 m	na dotaz
CAM12.A4-11232931	M12, female, A-coded; 4-poles; TPE-S, 2000 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	20 m	na dotaz

LED-Kabely s volným koncem

Další podobné produkty naleznete v kategorii: Kabely a konektory

Produkt (21)	Popis	Délka kabelu	Skladová dostupnost
CAM12.A4-11230401	M12, female, A-coded, 4-poles; PUR, 500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	5 m	na dotaz
CAM12.A4-11230405	M12, female, A-coded, 4-poles; PUR, 500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	5 m	na dotaz
CAM12.A4-11230460	M12, female, A-coded; 4-poles; TPE-S, 500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	5 m	na dotaz
CAM12.A4-11230932	M12, female, A-coded, 4-poles; PUR, 200 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	2 m	na dotaz
CAM12.A4-11230933	M12, female, A-coded, 4-poles; PUR, 1000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	10 m	na dotaz
CAM12.A4-11230937	M12, female, A-coded, 4-poles; PUR, 200 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	2 m	na dotaz
CAM12.A4-11230938	M12, female, A-coded, 4-poles; PUR, 1000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	10 m	na dotaz
CAM12.A4-11230960	M12, female, A-coded; 4-poles; TPE-S, 200 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	2 m	na dotaz
CAM12.A4-11230961	M12, female, A-coded; 4-poles; TPE-S, 1000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	10 m	na dotaz
CAM12.A4-11232872	M12, female, A-coded, 4-poles; PUR, 100 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	1 m	na dotaz
CAM12.A4-11232873	M12, female, A-coded, 4-poles; PUR, 300 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	3 m	na dotaz
CAM12.A4-11232874	M12, female, A-coded, 4-poles; PUR, 1500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	15 m	na dotaz
CAM12.A4-11232875	M12, female, A-coded, 4-poles; PUR, 2000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	20 m	na dotaz
CAM12.A4-11232878	M12, female, A-coded, 4-poles; PUR, 100 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	1 m	na dotaz
CAM12.A4-11232879	M12, female, A-coded, 4-poles; PUR, 300 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	3 m	na dotaz
CAM12.A4-11232880	M12, female, A-coded, 4-poles; PUR, 1500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	15 m	na dotaz
CAM12.A4-11232881	M12, female, A-coded, 4-poles; PUR, 2000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	20 m	na dotaz
CAM12.A4-11232908	M12, female, A-coded; 4-poles; TPE-S, 100 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	1 m	na dotaz
CAM12.A4-11232909	M12, female, A-coded; 4-poles; TPE-S, 300 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	3 m	na dotaz
CAM12.A4-11232910	M12, female, A-coded; 4-poles; TPE-S, 1500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	15 m	na dotaz
CAM12.A4-11232911	M12, female, A-coded; 4-poles; TPE-S, 2000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	20 m	na dotaz

Kabely

Další podobné produkty naleznete v kategorii: Kabely a konektory

Produkt (35)	Popis	Délka kabelu	Skladová dostupnost
CAM12.A4-11230419	M12, male, A-coded, 4-poles; PUR, 100 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A4-11230420	M12, male, A-coded, 4-poles; PUR, 500 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A4-11230421	M12, male, A-coded, 4-poles; PUR, 500 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A4-11230422	M12, male, A-coded, 4-poles; PUR, 100 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A4-11230423	M12, male, A-coded, 4-poles; PUR, 500 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A4-11230941	M12, male, A-coded, 4-poles; PUR, 200 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A4-11230942	M12, male, A-coded, 4-poles; PUR, 1000 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A4-11230943	M12, male, A-coded, 4-poles; PUR, 200 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A4-11230944	M12, male, A-coded, 4-poles; PUR, 1000 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A4-11230945	M12, male, A-coded, 4-poles; PUR, 200 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A4-11230946	M12, male, A-coded, 4-poles; PUR, 1000 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A4-11232676	M12, male, A-coded, 4-poles; PUR, 100 cm, shielded; M12, female, A-coded, 4-poles Dragchain capable Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A4-11232678	M12, male, A-coded, 4-poles; PUR, 200 cm, shielded; M12, female, A-coded, 4-poles Dragchain capable Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A4-11232679	M12, male, A-coded, shielded, 4-poles; PUR, 300 cm, shielded; M12, female, A-coded, 4-poles Dragchain capable Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A4-11232681	M12, male, A-coded, 4-poles; PUR, 500 cm, shielded; M12, female, A-coded, 4-poles Dragchain capable Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A4-11232682	M12, male, A-coded, 4-poles; PUR, 1000 cm, shielded; M12, female, A-coded, 4-poles Dragchain capable Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A4-11232683	M12, male, A-coded, 4-poles; PUR, 1500 cm, shielded; M12, female, A-coded, 4-poles Dragchain capable Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A4-11232684	M12, male, A-coded, 4-poles; PUR, 2000 cm, shielded; M12, female, A-coded, 4-poles Dragchain capable Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM12.A4-11232686	M12, male, A-coded, 4-poles; PUR, 100 cm, shielded; M12, female, A-coded, 4-poles Dragchain capable Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A4-11232688	M12, male, A-coded, 4-poles; PUR, 200 cm, shielded; M12, female, A-coded, 4-poles Dragchain capable Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A4-11232689	M12, male, A-coded, 4-poles; PUR, 300 cm, shielded; M12, female, A-coded, 4-poles Dragchain capable Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A4-11232691	M12, male, A-coded, 4-poles; PUR, 500 cm, shielded; M12, female, A-coded, 4-poles Dragchain capable Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A4-11232692	M12, male, A-coded, 4-poles; PUR, 1000 cm, shielded; M12, female, A-coded, 4-poles Dragchain capable Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A4-11232693	M12, male, A-coded, 4-poles; PUR, 1500 cm, shielded; M12, female, A-coded, 4-poles Dragchain capable Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A4-11232694	M12, male, A-coded, 4-poles; PUR, 2000 cm, shielded; M12, female, A-coded, 4-poles Dragchain capable Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM12.A4-11232933	M12, male, A-coded, 4-poles; PUR, 300 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A4-11232934	M12, male, A-coded, 4-poles; PUR, 1500 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A4-11232935	M12, male, A-coded, 4-poles; PUR, 2000 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM12.A4-11232937	M12, male, A-coded, 4-poles; PUR, 100 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A4-11232938	M12, male, A-coded, 4-poles; PUR, 300 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A4-11232939	M12, male, A-coded, 4-poles; PUR, 1500 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A4-11232940	M12, male, A-coded, 4-poles; PUR, 2000 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM12.A4-11232942	M12, male, A-coded, 4-poles; PUR, 300 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A4-11232943	M12, male, A-coded, 4-poles; PUR, 1500 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A4-11232944	M12, male, A-coded, 4-poles; PUR, 2000 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz

Produkt (50)	Produktová skupina	Výstup/Rozhraní	Typ připojení	Skladová dostupnost
FEAM 08P1002 - Through beam sensors - subminiature	Vysílač/Přijímač	PNP	Kabel	na dotaz
FEAM 08P1002/S35L - Through beam sensors - subminiature	Vysílač/Přijímač	PNP	Konektor	na dotaz
FEAM 08P3002 - Through beam sensors - subminiature	Vysílač/Přijímač	PNP	Kabel	>= 15 ks
FEAM 08P3002/S35L - Through beam sensors - subminiature	Vysílač/Přijímač	PNP	Konektor	na dotaz
FECK 07N6901 - Through beam sensors - subminiature	Vysílač/Přijímač	NPN	Kabel	na dotaz
FECK 07N6901/KS35A - Through beam sensors - subminiature	Vysílač/Přijímač	NPN	Kabel s konektorem	na dotaz
FECK 07P6901 - Through beam sensors - subminiature	Vysílač/Přijímač	PNP	Kabel	na dotaz
FECK 07P6901/KS35A - Through beam sensors - subminiature	Vysílač/Přijímač	PNP	Kabel s konektorem	na dotaz
FEDK 07N6901 - Through beam sensors - subminiature	Vysílač/Přijímač	NPN	Kabel	na dotaz
FEDK 07N6901/KS35A - Through beam sensors - subminiature	Vysílač/Přijímač	NPN	Kabel s konektorem	na dotaz
FEDK 07P6901 - Through beam sensors - subminiature	Vysílač/Přijímač	PNP	Kabel	na dotaz
FEDK 07P6901/KS35A - Through beam sensors - subminiature	Vysílač/Přijímač	PNP	Kabel s konektorem	na dotaz
FEDK 10N5101 - Through beam sensors - miniature	Vysílač/Přijímač	NPN	Kabel	na dotaz
FEDK 10N5101/S35A - Through beam sensors - miniature	Vysílač/Přijímač	NPN	Konektor	na dotaz
FEDK 10P1101/KS35 - Through beam sensors - miniature	Vysílač/Přijímač	PNP	Kabel s konektorem	na dotaz
FEDK 10P3101/KS35 - Through beam sensors - miniature	Vysílač/Přijímač	PNP	Kabel s konektorem	2 ks
FEDK 10P5101 - Through beam sensors - miniature	Vysílač/Přijímač	PNP	Kabel	na dotaz
FEDK 10P5101/S35A - Through beam sensors - miniature	Vysílač/Přijímač	PNP	Konektor	1 ks
FEDK 14N5101 - Through beam sensors - standard	Vysílač/Přijímač	NPN	Kabel	na dotaz
FEDK 14N5101/S35A - Through beam sensors - standard	Vysílač/Přijímač	NPN	Konektor	na dotaz
FEDK 14P5101 - Through beam sensors - standard	Vysílač/Přijímač	PNP	Kabel	na dotaz
FEDK 14P5101/S14 - Through beam sensors - standard	Vysílač/Přijímač	PNP	Konektor	na dotaz
FEDK 14P5101/S35A - Through beam sensors - standard	Vysílač/Přijímač	PNP	Konektor	na dotaz
FEDM 08P1001 - Through beam sensors - subminiature	Vysílač/Přijímač	PNP	Kabel	na dotaz
FEDM 08P1001/S35L - Through beam sensors - subminiature	Vysílač/Přijímač	PNP	Konektor	na dotaz
FEDM 08P1002 - Through beam sensors - subminiature	Vysílač/Přijímač	PNP	Kabel	na dotaz
FEDM 08P1002/S35L - Through beam sensors - subminiature	Vysílač/Přijímač	PNP	Konektor	5 ks
FEDM 08P3001 - Through beam sensors - subminiature	Vysílač/Přijímač	PNP	Kabel	na dotaz
FEDM 08P3001/S35L - Through beam sensors - subminiature	Vysílač/Přijímač	PNP	Konektor	na dotaz
FEDM 08P3002 - Through beam sensors - subminiature	Vysílač/Přijímač	PNP	Kabel	na dotaz
FEDM 08P3002/S35L - Through beam sensors - subminiature	Vysílač/Přijímač	PNP	Konektor	1 ks
FEDM 12P5101 - Through beam sensors - miniature	Vysílač/Přijímač	PNP	Kabel	na dotaz
FEDM 12P5101/S35A - Through beam sensors - miniature	Vysílač/Přijímač	PNP	Konektor	na dotaz
FGLM 050P8001/S35L - Angle sensors	Vidlicové snímače	PNP	Konektor	na dotaz
FGLM 080P8001/S35L - Angle sensors	Vidlicové snímače	PNP	Konektor	na dotaz
FGLM 120P8001/S35L - Angle sensors	Vidlicové snímače	PNP	Konektor	na dotaz
FGUM 020P8001/S35L - Fork sensors	Vidlicové snímače	PNP	Konektor	na dotaz
FGUM 030P6901/S35A - Fork sensors	Vidlicové snímače	PNP	Konektor	1 ks
FGUM 030P8001/S35L - Fork sensors	Vidlicové snímače	PNP	Konektor	na dotaz
FGUM 050P6901/S35A - Fork sensors	Vidlicové snímače	PNP	Konektor	na dotaz
FGUM 050P8001/S35L - Fork sensors	Vidlicové snímače	PNP	Konektor	4 ks
FGUM 080P6901/S35A - Fork sensors	Vidlicové snímače	PNP	Konektor	na dotaz
FGUM 080P8001/S35L - Fork sensors	Vidlicové snímače	PNP	Konektor	na dotaz
FGUM 120P8001/S35L - Fork sensors	Vidlicové snímače	PNP	Konektor	na dotaz
FHCK 07N6901 - Diffuse sensors with background suppression - subminiature	Potlačené pozadí	NPN	Kabel	na dotaz
FHCK 07N6901/KS35A - Diffuse sensors with background suppression - subminiature	Potlačené pozadí	NPN	Kabel s konektorem	na dotaz
FHCK 07P6901 - Diffuse sensors with background suppression - subminiature	Potlačené pozadí	PNP	Kabel	5 ks
FHCK 07P6901/KS35A - Diffuse sensors with background suppression - subminiature	Potlačené pozadí	PNP	Kabel s konektorem	4 ks
FHDH 14G6901 - Diffuse sensors with background suppression - hygiene	Potlačené pozadí	Push-pull	Kabel	na dotaz
FHDH 14G6901/IO - Diffuse sensors with background suppression - hygiene	Potlačené pozadí	Push-pull	Kabel	na dotaz
