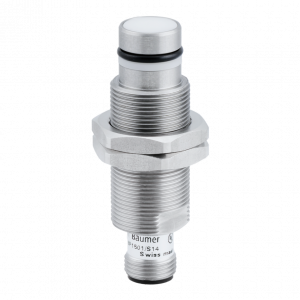

IFRP 18P1501/S14 - Inductive sensors special versions - pressure resistant

Objednací číslo: 10118745, Výrobce: Baumer Electric AG

2 mm
PNP make function (NO)
connector M12
-25 … 80 °C
IP 68/67 (sensing face/sensor)

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do poptávky

Poradím vám

Ing. Martin Bulenínec

Produktový specialista
Průmyslové snímače Baumer

+420 734 153 954

martin.buleninec@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Montážní typ:	Flush
Speciální typ:	High pressure
Nominální snímací vzdálenost Sn:	2 mm
Hystereze:	2 - 20 % of Sr

Elektrické parametry

Spínací frekvence:	3 kHz
Rozsah napájecího napětí +Vs:	6 - 30 VDC
Maximální spotřeba proudu (bez zátěže):	12 mA
Výstupní obvod:	PNP make function (NO)
Pokles napětí Vd:	<2 VDC
Výstupní proud:	200 mA
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes

Mechanické parametry

Design:	Cylindrical threaded
Materiál aktivní části:	Ceramic
Materiál pouzdra:	Stainless steel
Špičkový tlak:	1000 bar
Statický tlak:	< 500 bar
Dynamický tlak:	< 350 bar
Rozměry:	18 mm
Délka pouzdra:	60 mm
Způsoby připojení:	Connector M12

Okolní podmínky

Pracovní teplota:	-25 - +80 °C
Třída krytí:	IP 68/67 (sensing face/sensor)
