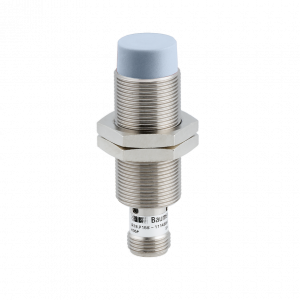

IFRM 18P13T1/S14L - Inductive proximity switch - outdoor and washdown

Objednací číslo: 11016653, Výrobce: Baumer Electric AG

12 mm
PNP make function (NO)
connector M12
-40 … 80 °C
IP 67

Dostupnost: 10 ks (zobrazit skladovou dostupnost)

Můžete mít ihned. Možnost osobního odběru v pracovní dny od 8:00 do 16:00 na adrese firmy po předchozí telefonické dohodě.

Zboží odesíláme okamžitě. Zboží, které závazně objednáte v pracovních dnech do 11:00 hodin, vám odešleme ještě tentýž den.

+Přidat do poptávky

Poradím vám

Ing. Martin Bulenínec

Produktový specialista
Průmyslové snímače Baumer

+420 734 153 954

martin.buleninec@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Skladová dostupnost

Podobné produkty

Parametry

Základní parametry

Montážní typ:	Non-flush
Speciální typ:	Outdoor design
Nominální snímací vzdálenost Sn:	12 mm
Hystereze:	2 - 15 % of Sr
Výstupní indikátor:	LED red

Elektrické parametry

Spínací frekvence:	500 Hz
Rozsah napájecího napětí +Vs:	6 - 30 VDC
Maximální spotřeba proudu (bez zátěže):	10 mA
Výstupní obvod:	PNP make function (NO)
Pokles napětí Vd:	<2 VDC
Výstupní proud:	200 mA
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes

Mechanické parametry

Design:	Cylindrical threaded
Materiál aktivní části:	PBT
Materiál pouzdra:	Brass nickel plated
Rozměry:	18 mm
Délka pouzdra:	60 mm
Způsoby připojení:	Connector M12
utahovací moment max.:	40 Nm (Front: 28 Nm)

Okolní podmínky

Pracovní teplota:	-40 - +80 °C
Třída krytí:	IP 67

Příslušenství

Obsahuje:Periferie Montážní příslušenství Kabely s volným koncem LED-Kabely s volným koncem

Periferie

Další podobné produkty naleznete v kategorii: Periferie

Produkt (3)	Produktová skupina	Skladová dostupnost
ZCONV-ALL.IMPM12 - Adapter for pulse stretching M12	Periferie	na dotaz
ZTEST-ALL.ANALOG - Test unit for sensors analog & digital	Periferie	na dotaz
ZTEST-ALL.DIGITAL - Test unit for sensors digital	Periferie	na dotaz

Montážní příslušenství

Foto	Produkt (22)
	10151658 - Sensofix series 18
	Mounting base
	Mounting base
	Mounting plate series 500 and ø18 mm
	Mounting plate series 500 and ø18 mm
	Mounting rod 200 mm
	Mounting rod 200 mm
	Mounting rod 250 mm
	Mounting rod 250 mm
	Mounting rod 300 mm
	Mounting rod 300 mm
	Mounting rod with mounting plate holder 200 mm
	Mounting rod with mounting plate holder 200 mm
	Mounting rod with mounting plate holder 250 mm
	Mounting rod with mounting plate holder 250 mm
	Mounting rod with mounting plate holder 300 mm
	Mounting rod with mounting plate holder 300 mm
	Two-way connector
	Two-way connector
	ZADAP-M18.LONG - Mounting bracket long series 18 (L design)
	ZADAP-M18.SHORT - Mounting bracket short series 18 (L design)
	ZADAP-M18.STANDARD - Mounting bracket series 18

Kabely s volným koncem

Další podobné produkty naleznete v kategorii: Kabely a konektory

Produkt (56)	Popis	Délka kabelu	Skladová dostupnost
CAM12.A3-11230331	M12, female, A-coded, 3-poles; PUR, 200 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A3-11230332	M12, female, A-coded, 3-poles; PUR, 500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A3-11230333	M12, female, A-coded, 3-poles; PUR, 1000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A3-11230340	M12, female, A-coded, 3-poles; PUR, 500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A3-11230341	M12, female, A-coded, 3-poles; PUR, 1000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A3-11230385	M12, female, A-coded, 3-poles; PUR, 200 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A3-11230407	M12, female, A-coded, 3-poles; PUR, 500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A3-11230408	M12, female, A-coded; 3-poles; PUR, 500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A3-11230502	M12, female, A-coded; 3-poles; TPE-S, 500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	5 m	na dotaz
CAM12.A3-11230503	M12, female, A-coded; 3-poles; TPE-S, 500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	5 m	na dotaz
CAM12.A3-11230506	M12, female, A-coded; 3-poles; TPE-S, 500 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	5 m	na dotaz
CAM12.A3-11230507	M12, female, A-coded; 3-poles; TPE-S, 500 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	5 m	na dotaz
CAM12.A3-11230854	M12, female, A-coded, 3-poles; PUR, 300 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A3-11230855	M12, female, A-coded, 3-poles; PUR, 1500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A3-11230856	M12, female, A-coded, 3-poles; PUR, 300 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A3-11230857	M12, female, A-coded, 3-poles; PUR, 1500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A3-11230862	M12, female, A-coded, 3-poles; PUR, 200 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A3-11230863	M12, female, A-coded, 3-poles; PUR, 1000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A3-11230864	M12, female, A-coded; 3-poles; PUR, 200 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A3-11230865	M12, female, A-coded; 3-poles; PUR, 1000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A3-11230914	M12, female, A-coded; 3-poles; TPE-S, 200 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	2 m	na dotaz
CAM12.A3-11230915	M12, female, A-coded; 3-poles; TPE-S, 1000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	10 m	na dotaz
CAM12.A3-11230916	M12, female, A-coded; 3-poles; TPE-S, 200 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	2 m	na dotaz
CAM12.A3-11230917	M12, female, A-coded; 3-poles; TPE-S, 1000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	10 m	na dotaz
CAM12.A3-11230925	M12, female, A-coded; 3-poles; TPE-S, 200 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	2 m	na dotaz
CAM12.A3-11230926	M12, female, A-coded; 3-poles; TPE-S, 1000 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	10 m	na dotaz
CAM12.A3-11230927	M12, female, A-coded; 3-poles; TPE-S, 200 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	2 m	na dotaz
CAM12.A3-11230928	M12, female, A-coded; 3-poles; TPE-S, 1000 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	10 m	na dotaz
CAM12.A3-11232807	M12, female, A-coded, 3-poles; PUR, 100 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A3-11232808	M12, female, A-coded, 3-poles; PUR, 2000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM12.A3-11232810	M12, female, A-coded, 3-poles; PUR, 100 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A3-11232811	M12, female, A-coded, 3-poles; PUR, 2000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM12.A3-11232816	M12, female, A-coded, 3-poles; PUR, 100 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A3-11232817	M12, female, A-coded, 3-poles; PUR, 300 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A3-11232818	M12, female, A-coded, 3-poles; PUR, 1500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A3-11232819	M12, female, A-coded, 3-poles; PUR, 2000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM12.A3-11232821	M12, female, A-coded; 3-poles; PUR, 100 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A3-11232822	M12, female, A-coded; 3-poles; PUR, 300 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A3-11232823	M12, female, A-coded; 3-poles; PUR, 1500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A3-11232824	M12, female, A-coded; 3-poles; PUR, 2000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM12.A3-11232836	M12, female, A-coded; 3-poles; TPE-S, 100 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	1 m	na dotaz
CAM12.A3-11232837	M12, female, A-coded; 3-poles; TPE-S, 300 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	3 m	na dotaz
CAM12.A3-11232838	M12, female, A-coded; 3-poles; TPE-S, 1500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	15 m	na dotaz
CAM12.A3-11232839	M12, female, A-coded; 3-poles; TPE-S, 2000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	20 m	na dotaz
CAM12.A3-11232841	M12, female, A-coded; 3-poles; TPE-S, 100 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	1 m	na dotaz
CAM12.A3-11232842	M12, female, A-coded; 3-poles; TPE-S, 300 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	3 m	na dotaz
CAM12.A3-11232843	M12, female, A-coded; 3-poles; TPE-S, 1500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	15 m	na dotaz
CAM12.A3-11232844	M12, female, A-coded; 3-poles; TPE-S, 2000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	20 m	na dotaz
CAM12.A3-11232861	M12, female, A-coded; 3-poles; TPE-S, 100 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	1 m	na dotaz
CAM12.A3-11232862	M12, female, A-coded; 3-poles; TPE-S, 300 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	3 m	na dotaz
CAM12.A3-11232863	M12, female, A-coded; 3-poles; TPE-S, 1500 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	15 m	na dotaz
CAM12.A3-11232864	M12, female, A-coded; 3-poles; TPE-S, 2000 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	20 m	na dotaz
CAM12.A3-11232866	M12, female, A-coded; 3-poles; TPE-S, 100 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	1 m	na dotaz
CAM12.A3-11232867	M12, female, A-coded; 3-poles; TPE-S, 300 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	3 m	na dotaz
CAM12.A3-11232868	M12, female, A-coded; 3-poles; TPE-S, 1500 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	15 m	na dotaz
CAM12.A3-11232869	M12, female, A-coded; 3-poles; TPE-S, 2000 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	20 m	na dotaz

LED-Kabely s volným koncem

Další podobné produkty naleznete v kategorii: Kabely a konektory

Produkt (21)	Popis	Délka kabelu	Skladová dostupnost
CAM12.A3-11230404	M12, female, A-coded, 3-poles; PUR, 500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	5 m	na dotaz
CAM12.A3-11230504	M12, female, A-coded; 3-poles; TPE-S, 500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	5 m	na dotaz
CAM12.A3-11230858	M12, female, A-coded, 3-poles; PUR, 200 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	2 m	na dotaz
CAM12.A3-11230859	M12, female, A-coded, 3-poles; PUR, 300 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	3 m	na dotaz
CAM12.A3-11230860	M12, female, A-coded, 3-poles; PUR, 1000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	10 m	na dotaz
CAM12.A3-11230861	M12, female, A-coded, 3-poles; PUR, 1500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	15 m	na dotaz
CAM12.A3-11230918	M12, female, A-coded; 3-poles; TPE-S, 200 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	2 m	na dotaz
CAM12.A3-11230919	M12, female, A-coded; 3-poles; TPE-S, 1000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	10 m	na dotaz
CAM12.A3-11232618	M12, female, A-coded; 3-poles; PUR, 100 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	1 m	na dotaz
CAM12.A3-11232619	M12, female, A-coded; 3-poles; PUR, 200 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	2 m	na dotaz
CAM12.A3-11232620	M12, female, A-coded; 3-poles; PUR, 300 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	3 m	na dotaz
CAM12.A3-11232621	M12, female, A-coded; 3-poles; PUR, 500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	5 m	na dotaz
CAM12.A3-11232622	M12, female, A-coded; 3-poles; PUR, 1000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	10 m	na dotaz
CAM12.A3-11232623	M12, female, A-coded; 3-poles; PUR, 1500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	15 m	na dotaz
CAM12.A3-11232624	M12, female, A-coded; 3-poles; PUR, 2000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	20 m	na dotaz
CAM12.A3-11232813	M12, female, A-coded, 3-poles; PUR, 100 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	1 m	na dotaz
CAM12.A3-11232814	M12, female, A-coded, 3-poles; PUR, 2000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	20 m	na dotaz
CAM12.A3-11232846	M12, female, A-coded; 3-poles; TPE-S, 100 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	1 m	na dotaz
CAM12.A3-11232847	M12, female, A-coded; 3-poles; TPE-S, 300 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	3 m	na dotaz
CAM12.A3-11232848	M12, female, A-coded; 3-poles; TPE-S, 1500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	15 m	na dotaz
CAM12.A3-11232849	M12, female, A-coded; 3-poles; TPE-S, 2000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	20 m	na dotaz

Název produktu	Počet na skladě
IFRM 18P13T1/S14L	10 ks

Produkt (50)	Popis	Produktová skupina	Snímací vzdálenost max.	Výstup/Rozhraní	Typ připojení	Skladová dostupnost
IARM 08P1503/S35L - Inductive sensors special versions	0,4 mm PNP make function (NO) connector M8 -25 … 75 °C IP 67	Indukční snímače speciální	0.4 mm	PNP (NO)	Konektor	na dotaz
IARM 12N15A3/S35L - Inductive sensors special versions	1,2 mm NPN make function (NO) connector M8 -25 … 75 °C IP 67	Indukční snímače speciální	1.2 mm	NPN (NO)	Konektor	na dotaz
IARM 12P15A3/S35L - Inductive sensors special versions	1,2 mm PNP make function (NO) connector M8 -25 … 75 °C IP 67	Indukční snímače speciální	1.2 mm	PNP (NO)	Konektor	na dotaz
IF250.P12S-N52.NC1Z.71CV	Ultra-flat design for installation in confined spaces Large switching distance 12 mm Robust plastic housing with metal sleeves Additional mounting material for easy installation on tubes	dvoustavové	12 mm ≤ 81 % of Sn	NPN (NC)	Kabel	na dotaz
IF250.P12S-N52.NO1Z.71CV	Ultra-flat design for installation in confined spaces Large switching distance 12 mm Robust plastic housing with metal sleeves Additional mounting material for easy installation on tubes	dvoustavové	12 mm ≤ 81 % of Sn	NPN (NO)	Kabel	na dotaz
IF250.P12S-N52.PC1Z.71CV	Ultra-flat design for installation in confined spaces Large switching distance 12 mm Robust plastic housing with metal sleeves Additional mounting material for easy installation on tubes	dvoustavové	12 mm ≤ 81 % of Sn	PNP (NC)	Kabel	na dotaz
IF250.P12S-N52.PO1Z.71CV	Ultra-flat design for installation in confined spaces Large switching distance 12 mm Robust plastic housing with metal sleeves Additional mounting material for easy installation on tubes	dvoustavové	12 mm ≤ 81 % of Sn	PNP (NO)	Kabel	na dotaz
IFBR 06N13T1/S14L-9 - Inductive proximity switch - hygiene	3 mm NPN make function (NO) connector M12 -40 … 80 °C IP 68/69K & proTect+	dvoustavové	3 mm	NPN (NO)	Konektor	na dotaz
IFBR 06N33T1/S14L-9 - Inductive proximity switch - hygiene	3 mm NPN break function (NC) connector M12 -40 … 80 °C IP 68/69K & proTect+	dvoustavové	3 mm	NPN (NC)	Konektor	na dotaz
IFBR 06P13T1/S14L-9 - Inductive proximity switch - hygiene	3 mm PNP make function (NO) connector M12 -40 … 80 °C IP 68/69K & proTect+	dvoustavové	3 mm	PNP (NO)	Konektor	na dotaz
IFBR 06P33T1/S14L-9 - Inductive proximity switch - hygiene	3 mm PNP break function (NC) connector M12 -40 … 80 °C IP 68/69K & proTect+	dvoustavové	3 mm	PNP (NC)	Konektor	na dotaz
IFBR 11N13T1/L-9 - Inductive proximity switch - hygiene	6 mm NPN make function (NO) cable PVC, 2 m -40 … 80 °C IP 68/69K & proTect+	dvoustavové	6 mm	NPN (NO)	Kabel	na dotaz
IFBR 11N13T1/S14L-9 - Inductive proximity switch - hygiene	6 mm NPN make function (NO) connector M12 -40 … 80 °C IP 68/69K & proTect+	dvoustavové	6 mm	NPN (NO)	Konektor	na dotaz
IFBR 11N17T1/L-9 - Inductive proximity switch - hygiene	4 mm NPN make function (NO) cable PVC, 2 m -40 … 80 °C IP 68/69K & proTect+	dvoustavové	4 mm	NPN (NO)	Kabel	na dotaz
IFBR 11N17T1/S14L-9 - Inductive proximity switch - hygiene	4 mm NPN make function (NO) connector M12 -40 … 80 °C IP 68/69K & proTect+	dvoustavové	4 mm	NPN (NO)	Konektor	na dotaz
IFBR 11N33T1/L-9 - Inductive proximity switch - hygiene	6 mm NPN break function (NC) cable PVC, 2 m -40 … 80 °C IP 68/69K & proTect+	dvoustavové	6 mm	NPN (NC)	Kabel	na dotaz
IFBR 11N33T1/S14L-9 - Inductive proximity switch - hygiene	6 mm NPN break function (NC) connector M12 -40 … 80 °C IP 68/69K & proTect+	dvoustavové	6 mm	NPN (NC)	Konektor	na dotaz
IFBR 11N37T1/L-9 - Inductive proximity switch - hygiene	4 mm NPN break function (NC) cable PVC, 2 m -40 … 80 °C IP 68/69K & proTect+	dvoustavové	4 mm	NPN (NC)	Kabel	na dotaz
IFBR 11N37T1/S14L-9 - Inductive proximity switch - hygiene	4 mm NPN break function (NC) connector M12 -40 … 80 °C IP 68/69K & proTect+	dvoustavové	4 mm	NPN (NC)	Konektor	na dotaz
IFBR 11P13T1/L-9 - Inductive proximity switch - hygiene	6 mm PNP make function (NO) cable PVC, 2 m -40 … 80 °C IP 68/69K & proTect+	dvoustavové	6 mm	PNP (NO)	Kabel	na dotaz
IFBR 11P13T1/S14L-9 - Inductive proximity switch - hygiene	6 mm PNP make function (NO) connector M12 -40 … 80 °C IP 68/69K & proTect+	dvoustavové	6 mm	PNP (NO)	Konektor	1 ks
IFBR 11P17T1/L-9 - Inductive proximity switch - hygiene	4 mm PNP make function (NO) cable PVC, 2 m -40 … 80 °C IP 68/69K & proTect+	dvoustavové	4 mm	PNP (NO)	Kabel	na dotaz
IFBR 11P17T1/S14L-9 - Inductive proximity switch - hygiene	4 mm PNP make function (NO) connector M12 -40 … 80 °C IP 68/69K & proTect+	dvoustavové	4 mm	PNP (NO)	Konektor	na dotaz
IFBR 11P33T1/L-9 - Inductive proximity switch - hygiene	6 mm PNP break function (NC) cable PVC, 2 m -40 … 80 °C IP 68/69K & proTect+	dvoustavové	6 mm	PNP (NC)	Kabel	na dotaz
IFBR 11P33T1/S14L-9 - Inductive proximity switch - hygiene	6 mm PNP break function (NC) connector M12 -40 … 80 °C IP 68/69K & proTect+	dvoustavové	6 mm	PNP (NC)	Konektor	na dotaz
IFBR 11P37T1/L-9 - Inductive proximity switch - hygiene	4 mm PNP break function (NC) cable PVC, 2 m -40 … 80 °C IP 68/69K & proTect+	dvoustavové	4 mm	PNP (NC)	Kabel	na dotaz
IFBR 11P37T1/S14L-9 - Inductive proximity switch - hygiene	4 mm PNP break function (NC) connector M12 -40 … 80 °C IP 68/69K & proTect+	dvoustavové	4 mm	PNP (NC)	Konektor	na dotaz
IFBR 17N13T1/L-9 - Inductive proximity switch - hygiene	12 mm NPN make function (NO) cable PVC, 2 m -40 … 80 °C IP 68/69K & proTect+	dvoustavové	12 mm	NPN (NO)	Kabel	na dotaz
IFBR 17N13T1/S14L-9 - Inductive proximity switch - hygiene	12 mm NPN make function (NO) connector M12 -40 … 80 °C IP 68/69K & proTect+	dvoustavové	12 mm	NPN (NO)	Konektor	na dotaz
IFBR 17N17T1/L-9 - Inductive proximity switch - hygiene	8 mm NPN make function (NO) cable PVC, 2 m -40 … 80 °C IP 68/69K & proTect+	dvoustavové	8 mm	NPN (NO)	Kabel	na dotaz
IFBR 17N17T1/S14L-9 - Inductive proximity switch - hygiene	8 mm NPN make function (NO) connector M12 -40 … 80 °C IP 68/69K & proTect+	dvoustavové	8 mm	NPN (NO)	Konektor	na dotaz
IFBR 17N33T1/L-9 - Inductive proximity switch - hygiene	12 mm NPN break function (NC) cable PVC, 2 m -40 … 80 °C IP 68/69K & proTect+	dvoustavové	12 mm	NPN (NC)	Kabel	na dotaz
IFBR 17N33T1/S14L-9 - Inductive proximity switch - hygiene	12 mm NPN break function (NC) connector M12 -40 … 80 °C IP 68/69K & proTect+	dvoustavové	12 mm	NPN (NC)	Konektor	na dotaz
IFBR 17N37T1/L-9 - Inductive proximity switch - hygiene	8 mm NPN break function (NC) cable PVC, 2 m -40 … 80 °C IP 68/69K & proTect+	dvoustavové	8 mm	NPN (NC)	Kabel	na dotaz
IFBR 17N37T1/S14L-9 - Inductive proximity switch - hygiene	8 mm NPN break function (NC) connector M12 -40 … 80 °C IP 68/69K & proTect+	dvoustavové	8 mm	NPN (NC)	Konektor	na dotaz
IFBR 17P13T1/L-9 - Inductive proximity switch - hygiene	12 mm PNP make function (NO) cable PVC, 2 m -40 … 80 °C IP 68/69K & proTect+	dvoustavové	12 mm	PNP (NO)	Kabel	na dotaz
IFBR 17P13T1/S14L-9 - Inductive proximity switch - hygiene	12 mm PNP make function (NO) connector M12 -40 … 80 °C IP 68/69K & proTect+	dvoustavové	12 mm	PNP (NO)	Konektor	1 ks
IFBR 17P17T1/L-9 - Inductive proximity switch - hygiene	8 mm PNP make function (NO) cable PVC, 2 m -40 … 80 °C IP 68/69K & proTect+	dvoustavové	8 mm	PNP (NO)	Kabel	na dotaz
IFBR 17P17T1/S14L-9 - Inductive proximity switch - hygiene	8 mm PNP make function (NO) connector M12 -40 … 80 °C IP 68/69K & proTect+	dvoustavové	8 mm	PNP (NO)	Konektor	1 ks
IFBR 17P33T1/L-9 - Inductive proximity switch - hygiene	12 mm PNP break function (NC) cable PVC, 2 m -40 … 80 °C IP 68/69K & proTect+	dvoustavové	12 mm	PNP (NC)	Kabel	na dotaz
IFBR 17P33T1/S14L-9 - Inductive proximity switch - hygiene	12 mm PNP break function (NC) connector M12 -40 … 80 °C IP 68/69K & proTect+	dvoustavové	12 mm	PNP (NC)	Konektor	na dotaz
IFBR 17P37T1/L-9 - Inductive proximity switch - hygiene	8 mm PNP break function (NC) cable PVC, 2 m -40 … 80 °C IP 68/69K & proTect+	dvoustavové	8 mm	PNP (NC)	Kabel	na dotaz
IFBR 17P37T1/S14L-9 - Inductive proximity switch - hygiene	8 mm PNP break function (NC) connector M12 -40 … 80 °C IP 68/69K & proTect+	dvoustavové	8 mm	PNP (NC)	Konektor	na dotaz
IFF 08.82.05 - Inductive sensors NAMUR	1,5 mm NAMUR cable, 2 m -25 … 75 °C IP 67	NAMUR	1.5 mm	NAMUR	Kabel	na dotaz
IFFK 10E9101 - Inductive sensors NAMUR	2 mm NAMUR spade lug -25 … 75 °C IP 67	NAMUR	2 mm	NAMUR	Kabel	na dotaz
IFFM 04N1501/O1L - Inductive proximity switch - subminiature	0,8 mm NPN make function (NO) cable, 2 m -25 … 75 °C IP 67	dvoustavové	0.8 mm	NPN (NO)	Kabel	na dotaz
IFFM 04N3501/O1L - Inductive proximity switch - subminiature	0,8 mm NPN break function (NC) cable, 2 m -25 … 75 °C IP 67	dvoustavové	0.8 mm	NPN (NC)	Kabel	na dotaz
IFFM 04P1501/O1L - Inductive proximity switch - subminiature	0,8 mm PNP make function (NO) cable, 2 m -25 … 75 °C IP 67	dvoustavové	0.8 mm	PNP (NO)	Kabel	3 ks
IFFM 04P3501/O1L - Inductive proximity switch - subminiature	0,8 mm PNP break function (NC) cable, 2 m -25 … 75 °C IP 67	dvoustavové	0.8 mm	PNP (NC)	Kabel	na dotaz
IFFM 06N15A1/O1L - Inductive proximity switch - miniature	1 mm NPN make function (NO) cable, 2 m -25 … 75 °C IP 67	dvoustavové	1 mm	NPN (NO)	Kabel	na dotaz
