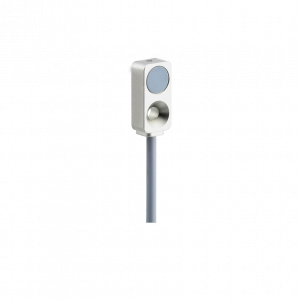

IFFM 08P37A6/KS35L - Inductive proximity switch - subminiature

Objednací číslo: 10143587, Výrobce: Baumer Electric AG

2 mm
PNP break function (NC)
flylead connector M8
-25 … 75 °C
IP 67

Dostupnost: více než 15 ks (zobrazit skladovou dostupnost)

Můžete mít ihned. Možnost osobního odběru v pracovní dny od 8:00 do 16:00 na adrese firmy po předchozí telefonické dohodě.

Zboží odesíláme okamžitě. Zboží, které závazně objednáte v pracovních dnech do 11:00 hodin, vám odešleme ještě tentýž den.

+Přidat do poptávky

Poradím vám

Ing. Martin Bulenínec

Vedoucí oddělení průmyslových snímačů a kamerových systémů
BAUMER | IOSS

+420 734 153 954

martin.buleninec@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Skladová dostupnost

Podobné produkty

Parametry

Základní parametry

Montážní typ:	Flush
Nominální snímací vzdálenost Sn:	2 mm
Hystereze:	2 - 20 % of Sr
Výstupní indikátor:	LED red

Elektrické parametry

Spínací frekvence:	5 kHz
Rozsah napájecího napětí +Vs:	6 - 30 VDC
Maximální spotřeba proudu (bez zátěže):	12 mA
Výstupní obvod:	PNP break function (NC)
Pokles napětí Vd:	<2 VDC
Výstupní proud:	100 mA
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes

Mechanické parametry

Design:	Rectangular
Materiál aktivní části:	PBT
Materiál pouzdra:	Die-cast zinc nickel plated
Rozměry:	8 mm
Délka pouzdra:	16 mm
Způsoby připojení:	Flylead connector M8
utahovací moment max.:	0.8 Nm

Okolní podmínky

Pracovní teplota:	-25 - +75 °C
Třída krytí:	IP 67

Kabel

Hlava A: Připojení:	M8
Hlava A: Pohlaví:	Male
Hlava A: Úhlový vývod:	0°
Hlava A: Kódování:	A
Hlava A: Počet pólů:	3
Hlava A: Stupeň ochrany:	IP65, IP66K, IP67
Délka kabelu:	200 mm
Tolerance délky:	+ 10 % - 0 %
Stíněný:	No
Vnější plášť: Materiál:	PVC
Průměr kabelu:	2.4 mm
AWG:	28
Průřez vodičů:	0.08 mm²
