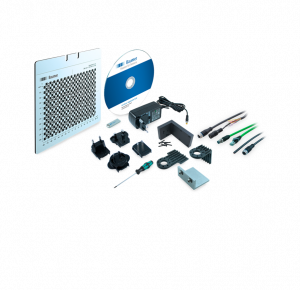

VeriSens UR Starter Kit

USB Stick with VeriSens URCap
Power Supply 24V/1.0A with confectioned connection cable M12/12-pin
Ethernet cable for robotic applications
Process interface cable for robotic applications
VeriSens 90° mounting adapter incl. screws for stationary mounting
VeriSens mounting adapter incl. screws for direct mounting on the robot
VeriSens 90° mounting adapter incl. screws for direct mounting on the robot
Smartgrid incl. mounting
Screw driver
Application Suite (Windows) via Download
VeriSens not included

Objednací číslo: 11700552
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jakub Sedlmajer

Produktový specialista pro průmyslové čtečky a kamerové systémy
BAUMER | IOSS

+420 739 087 013

jakub.sedlmajer@ajptech.cz

Parametry

Ke stažení

Podpora

Podobné produkty

Parametry

Uchycení

Číslo produktu:	11177010
Název:	ZVM-VS_Mounting Adapter
Popis:	90° angled fixation bracket incl. screws
Číslo produktu:	11700550
Název:	ZVM-Mouting Adapter VeriSens UR
Popis:	mounting for VeriSens fixation directly to robot included screws: 4x M4 for the mounting to VeriSens and 4x M6 for the mounting to the Universal Robot (UR)
Číslo produktu:	11700551
Název:	ZVM-Mountig Adapter VeriSens UR 90°
Popis:	90° anged mounting for VeriSens fixation directly to robot included screws: 4x M4 for the mounting to VeriSens and 4x M6 for the mounting to the Universal Robot (UR)

Kabel

Číslo produktu:	11700905
Název:	Robotic Ethernet cable, 5,0 m (KSG 34A/KSG45AR0500G/E)
Popis:	Ethernet cable for robotic applications M12/4-pin female connector to RJ45 shielded UL in preparation length 5,0 m

Připojovací kabel

Číslo produktu:	11195097
Název:	ESG 34JP0500GS
Popis:	process interface cable for robotic applications M12/12-pin female connector, open wires at one end shielded length 2,0 m

Jiné

Nástroje:

screw driver I6K (Torx) 3 mm

Napájení

Číslo produktu:	11079750
Název:	Power Supply 24V/1.0A int. DC Connector
Popis:	power supply 24V/1000mA adapter for EU, US, UK, AU and KR

Napájecí kabel

Číslo produktu:	11048083
Název:	Cable power adapter M12/DC connector
Popis:	connecting cable M12/12-pin to DC connector shielded length 2,0 m

Specifické příslušenství pro roboty

Číslo produktu:	11700543
Název:	ZVS-USB Stick URCap
Popis:	VeriSens URCap - user-friendly app for Universal Robots for easy installation and integration of VeriSens vision sensors direct connection of Verisens to the Polyscope Control of Universal Robots (UR) ready to use VeriSens functionality with only two additional commands automatic coordinate alignment with SmartGrid for fast and precise calibration compatible with UR3e, UR5e, UR10e und UR16e
Číslo produktu:	11700544
Název:	ZVT-Calibration Smartgrid 200x150 5mm
Popis:	SmartGrid for automatic coordinate alignment for fast and precise calibration target area 200 x 150 mm grid dimension 5 mm
Číslo produktu:	11700549
Název:	ZVM-Mounting Adapter Smartgrid 90°
Popis:	90° angled mounting incl. M6 screws for fixation to SmartGrid as a handle for Universal Robot (UR) screws can also be used for direct SmartGrid mounting to the Universal Robot flange

Foto	Produkt (10) / Popis	Skladová dostupnost
	HXGxx Starter Kit dvouportová deska rozhraní GigE PCIe x4 s podporou PoE GigE kabely 3,0 m (2 ks) kabel spouště/záblesku, 5,0 m napájecí kabel 5,0 m mezinárodní napájecí zdroj 24V/1,0A, délka kabelu 1,8 m Software (WINDOWS, LINUX, LINUX ARM) skrze stažení Neobsahuje kameru	na dotaz
	LXGxx Starter Kit dual port GigE PCIe x4 interface board with PoE support GigE cables 3,0 m (2 pieces) trigger/flash cable, 5,0 m power supply kit for LX, PX and VCXG cameras Mounting Adapter Type B (Tripod) Software (WINDOWS, LINUX, LINUX ARM) via Download camera not included	na dotaz
	Starter Kit VeriSens Universal confectioned connection cable M12/12-pin with power supply 24V/1.0A Ethernet cable 90° angled fixation bracket incl. screws screw driver Application Suite (Windows) via Download VeriSens not included	na dotaz
	VAX Starter Kit Gigabit Ethernet cable 5,0 m (M12/x-coded) Power Supply 24 V/1.6 A with adapter cable M12/12-pin to DC connector microHDMI to HDMI adapter cable Mounting Adapter Type K Tube system M47 with adapter (11185373) and tube (11185370) Camera and lens not included	na dotaz
	VCXG Starter Kit GigE PCIe interface board GigE cable 3,0 m power supply kit for LX and VCXG cameras Mounting Adapter Type E Software (WINDOWS, LINUX, LINUX ARM) via Download camera not included	na dotaz
	VCXG.I Starter Kit GigE PCIe interface board GigE cable 5,0 m (M12/x-coded) Power Supply 24 V/1.0 A with adapter cable M12/12-pin to DC connector Mounting Adapter Type B (Tripod) Tube system M47 with adapter (11185373) and tube (11185370) camera not included	na dotaz
	VCXU Starter Kit USB 3.0 PCIe interface board (2 ports) USB 3.0 cable, 3,0 m process interface cable 5,0 m Mounting Adapter Type E Software (WINDOWS, LINUX, LINUX ARM) via Download camera not included	na dotaz
	VeriSens UR Starter Kit USB Stick with VeriSens URCap Power Supply 24V/1.0A with confectioned connection cable M12/12-pin Ethernet cable for robotic applications Process interface cable for robotic applications VeriSens 90° mounting adapter incl. screws for stationary mounting VeriSens mounting adapter incl. screws for direct mounting on the robot VeriSens 90° mounting adapter incl. screws for direct mounting on the robot Smartgrid incl. mounting Screw driver Application Suite (Windows) via Download VeriSens not included	na dotaz
	VQXT Starter Kit 10-GigE PCIe interface board GigE cable 5,0 m (M12/x-coded) Power Supply Kit QX VisiLine IP int. Mounting Adapter Type F (Front), Mounting Adapter Type G (Tripod) Heat Sink Type D camera not included	na dotaz
	Z-Power Supply Kit VEXG int. universal power supply 12V/2,0A international with adapters for EU, US, UK, AU, KR power supply and process interface adapter cable for VEXG cameras, length 1,0 m	na dotaz
