ajptech.cz > Produkty > Průmyslové kamery > Instalační doplňky > Starter kity > HXGxx Starter Kit

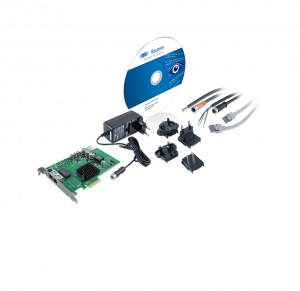

HXGxx Starter Kit

dvouportová deska rozhraní GigE PCIe x4 s podporou PoE
GigE kabely 3,0 m (2 ks)
kabel spouště/záblesku, 5,0 m
napájecí kabel 5,0 m
mezinárodní napájecí zdroj 24V/1,0A, délka kabelu 1,8 m
Software (WINDOWS, LINUX, LINUX ARM) skrze stažení
Neobsahuje kameru

Objednací číslo: 11086745
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jakub Sedlmajer

Produktový specialista pro průmyslové čtečky a kamerové systémy
BAUMER | IOSS

+420 739 087 013

jakub.sedlmajer@ajptech.cz

Parametry

Ke stažení

Podpora

Podobné produkty

Parametry

Kabel

Číslo produktu:

10170048

Název:

2x cable GigE RJ45/RJ45, 3,0 m

Vlastnosti:

GigE cable
RJ45/RJ45
CAT7
length 3,0 m

Připojovací kabel

Číslo produktu:

11118810

Název:

shielded cable 8 wires, 5,0 m (Z-ESG 32FP0500G)

Vlastnosti:

shielded cable
M8 female connector
8-pin
open wires at one side
cable carrier compatible
length 5,0 m

Komunikační karta

Číslo produktu:

11168453

Název:

PCI-1672PC Dual PoE (ZVA-PCIe-1672PC)

Vlastnosti:

2 port GigE to PCI Express host adapter
RJ45 connector
chipset: Intel^® I350-AM2
Power over Ethernet, IEEE 802.3af compliant, support class 0, 1, 2, 3, and 4, provides up to 15,4 Watt
tested Jumbo Frames: 9 kByte
Note: 4 lane PCI Express connector required

Napájení

Číslo produktu:

11084354

Název:

power supply 24V/1,0A international

Vlastnosti:

international power supply 24 V/1,0 A with M8/3-pin female connector
length 1,8 m
adapter for EU, US, UK, AU and KR

Napájecí kabel

Číslo produktu:

10125607

Název:

shielded cable 3 wires, 5,0 m

Vlastnosti:

shielded cable
M8 female connector
3-pin
open wires at one side
cable carrier compatible
length 5,0 m

Foto	Produkt (10) / Popis	Skladová dostupnost
	HXGxx Starter Kit dvouportová deska rozhraní GigE PCIe x4 s podporou PoE GigE kabely 3,0 m (2 ks) kabel spouště/záblesku, 5,0 m napájecí kabel 5,0 m mezinárodní napájecí zdroj 24V/1,0A, délka kabelu 1,8 m Software (WINDOWS, LINUX, LINUX ARM) skrze stažení Neobsahuje kameru	na dotaz
	LXGxx Starter Kit dual port GigE PCIe x4 interface board with PoE support GigE cables 3,0 m (2 pieces) trigger/flash cable, 5,0 m power supply kit for LX, PX and VCXG cameras Mounting Adapter Type B (Tripod) Software (WINDOWS, LINUX, LINUX ARM) via Download camera not included	na dotaz
	Starter Kit VeriSens Universal confectioned connection cable M12/12-pin with power supply 24V/1.0A Ethernet cable 90° angled fixation bracket incl. screws screw driver Application Suite (Windows) via Download VeriSens not included	na dotaz
	VAX Starter Kit Gigabit Ethernet cable 5,0 m (M12/x-coded) Power Supply 24 V/1.6 A with adapter cable M12/12-pin to DC connector microHDMI to HDMI adapter cable Mounting Adapter Type K Tube system M47 with adapter (11185373) and tube (11185370) Camera and lens not included	na dotaz
	VCXG Starter Kit GigE PCIe interface board GigE cable 3,0 m power supply kit for LX and VCXG cameras Mounting Adapter Type E Software (WINDOWS, LINUX, LINUX ARM) via Download camera not included	na dotaz
	VCXG.I Starter Kit GigE PCIe interface board GigE cable 5,0 m (M12/x-coded) Power Supply 24 V/1.0 A with adapter cable M12/12-pin to DC connector Mounting Adapter Type B (Tripod) Tube system M47 with adapter (11185373) and tube (11185370) camera not included	na dotaz
	VCXU Starter Kit USB 3.0 PCIe interface board (2 ports) USB 3.0 cable, 3,0 m process interface cable 5,0 m Mounting Adapter Type E Software (WINDOWS, LINUX, LINUX ARM) via Download camera not included	na dotaz
	VeriSens UR Starter Kit USB Stick with VeriSens URCap Power Supply 24V/1.0A with confectioned connection cable M12/12-pin Ethernet cable for robotic applications Process interface cable for robotic applications VeriSens 90° mounting adapter incl. screws for stationary mounting VeriSens mounting adapter incl. screws for direct mounting on the robot VeriSens 90° mounting adapter incl. screws for direct mounting on the robot Smartgrid incl. mounting Screw driver Application Suite (Windows) via Download VeriSens not included	na dotaz
	VQXT Starter Kit 10-GigE PCIe interface board GigE cable 5,0 m (M12/x-coded) Power Supply Kit QX VisiLine IP int. Mounting Adapter Type F (Front), Mounting Adapter Type G (Tripod) Heat Sink Type D camera not included	na dotaz
	Z-Power Supply Kit VEXG int. universal power supply 12V/2,0A international with adapters for EU, US, UK, AU, KR power supply and process interface adapter cable for VEXG cameras, length 1,0 m	na dotaz
