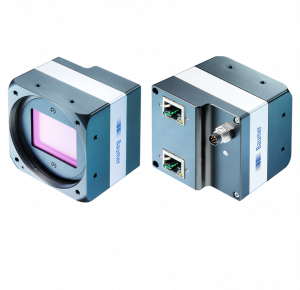

LXG-250C

5120 × 5120 px
Onsemi PYTHON 25K
APS-H CMOS
9 fps
Dual Gigabit Ethernet

Objednací číslo: 11150457
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jakub Sedlmajer

Produktový specialista pro průmyslové čtečky a kamerové systémy
BAUMER | IOSS

+420 739 087 013

jakub.sedlmajer@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Informace o snímači

Snímač:	onsemi PYTHON 25K
Mono/Color:	Color
Barevný filtr:	RGB Bayer Mosaic
Typ snímače:	APS-H CMOS
Typ závěrky:	Global shutter
Rozlišení:	5120 × 5120 px
Rozměry pixelu:	4.5 × 4.5 µm
Expoziční čas:	0.03 - 1000 ms

Kvalita dat (EMVA 1288)

Temný šum:	11.96 e-
Saturační kapacita:	8425 e-
Dynamický rozsah:	56.4 dB
Poměr signál/šum:	39.3 dB
Kvantová účinnost:	36.6 % @ 465 nm 39.7 % @ 536 nm 41.2 % @ 631 nm

Formáty obrazu

Formáty obrazu, max. frekvence snímků na komunikačním rozhraní:	Full Frame, 5120 × 5120 px, max. 9 fps Binning 2×2, 2560 × 2560 px, max. 9 fps Binning 1×2, 5120 × 2560 px, max. 9 fps Binning 2×1, 2560 × 5120 px, max. 9 fps
Formáty obrazu, maximální frekvence sběru snímků (Burst Mód):	Full Frame, 5120 × 5120 px, max. 32 fps
Formát pixelu:	BayerGB8 BayerGB12 BayerGB12 Packed

Předzpracování obrazu

Analogové ovládací prvky:	Gain (0 - 23,5 dB) Offset (0 - 63 LSB 10 Bit)
Barevné modely:	Raw Bayer
Zpracování barev:	NA

Funkce kamery

Synchronizace:	free running trigger
Zdroje spouštěcího signálu (trigger):	Hardware Software ActionCommand
Zpoždění spouštěcího signálu (trigger):	0 - 2 s, tracking and buffering of up to 256 trigger signals
Sequencer:	Automated control for series of images using different sets of parameters
Parametry sequenceru:	Exposure time gain factor Output ROI Offset x ROI Offset y
Digitální vstupy:	1 input line
Digitální výstupy:	3 output lines
Interní vyrovnávací paměť:	512 MB

Rozhraní a připojení

Datové rozhraní:	Dual Gigabit Ethernet, Transfer rate 2000 Mbits/sec, Connector: 2 x 8P8C Modular Jack (RJ45), screwable type
Rozhraní:	M8 / 8 pins
Napájení:	via M8 / 8 pins

Mechanické parametry

Závit objektivu:	M58-mount (F-mount, M42, C-mount via adapter)
Šířka:	60 mm
Výška:	60 mm
Hloubka:	56.32 mm
Hmotnost:	≤ 320 g (M58-mount)
Materiál:	housing: aluminum

Elektrické parametry

Rozsah napájecího napětí +Vs:	12 - 24 V DC (external power supply) 36 - 57 V DC (Power over Ethernet)
Spotřeba energie:	Approx. 5.4 W @ 24 VDC (sequential readout) Approx. 7.6 W @ 48 VDC (PoE. sequential readout)

Nevolatilní paměť

Velikost flash paměti:

128 kB

Podmínky prostředí

Pracovní teplota:	+5 - +68 °C @ T = measurement point
Vlhkost:	10 - 90 % (non-condensing)
Třída krytí:	IP 40

Prohlášení o shodě

Prohlášení o shodě:

CE
KC (R-REI-BkR-LXG-250M)
RoHS
EAC
