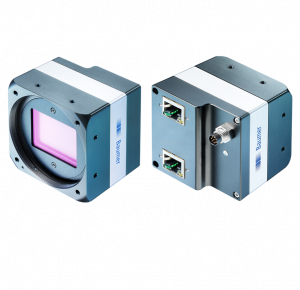

LXG-120C

4096 × 3072 px
ams (CMOSIS) CMV12000
APS-C CMOS
19 fps
Dual Gigabit Ethernet

Objednací číslo: 11117847
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jakub Sedlmajer

Produktový specialista pro průmyslové čtečky a kamerové systémy
BAUMER | IOSS

+420 739 087 013

jakub.sedlmajer@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Informace o snímači

Snímač:	ams (CMOSIS) CMV12000
Mono/Color:	Color
Barevný filtr:	RGB Bayer Mosaic
Typ snímače:	APS-C CMOS
Typ závěrky:	Global shutter
Rozlišení:	4096 × 3072 px
Rozměry pixelu:	5.5 × 5.5 µm
Expoziční čas:	0.04 - 1000 ms

Kvalita dat (EMVA 1288)

Temný šum:	12.89 e-
Saturační kapacita:	9730 e-
Dynamický rozsah:	57.2 dB
Poměr signál/šum:	39.9 dB
Kvantová účinnost:	36.3 % @ 465 nm 35.5 % @ 536 nm 34.5 % @ 631 nm

Formáty obrazu

Formáty obrazu, max. frekvence snímků na komunikačním rozhraní:	Full Frame, 4096 × 3072 px, max. 19 fps
Formáty obrazu, maximální frekvence sběru snímků (Burst Mód):	Full Frame, 4096 × 3072 px, max. 50 fps
Formát pixelu:	BayerGB8 BayerGB12 BayerGB12 Packed

Předzpracování obrazu

Analogové ovládací prvky:	Gain (0 - 12 dB) Offset (0 - 255 LSB 12 Bit)
Barevné modely:	Raw Bayer
Zpracování barev:	NA

Funkce kamery

Synchronizace:	free running trigger
Zdroje spouštěcího signálu (trigger):	Hardware Software ActionCommand
Zpoždění spouštěcího signálu (trigger):	0 - 2 s, tracking and buffering of up to 256 trigger signals
Sequencer:	Automated control for series of images using different sets of parameters
Parametry sequenceru:	Exposure time gain factor Output ROI Offset x ROI Offset y
Digitální vstupy:	1 input line
Digitální výstupy:	3 output lines
Interní vyrovnávací paměť:	512 MB

Rozhraní a připojení

Datové rozhraní:	Dual Gigabit Ethernet, Transfer rate 2000 Mbits/sec, Connector: 2 x 8P8C Modular Jack (RJ45), screwable type
Rozhraní:	M8 / 8 pins
Napájení:	via M8 / 8 pins

Mechanické parametry

Závit objektivu:	M58-mount (F-mount, M42, C-mount via adapter)
Šířka:	60 mm
Výška:	60 mm
Hloubka:	54.25 mm
Hmotnost:	≤ 290 g (M58-mount)
Materiál:	housing: aluminum

Elektrické parametry

Rozsah napájecího napětí +Vs:	12 - 24 V DC (external power supply) 36 - 57 V DC (Power over Ethernet)
Spotřeba energie:	Approx. 7.0 W @ 24 VDC Approx. 6.5 W @ 48 VDC (PoE)

Nevolatilní paměť

Velikost flash paměti:

128 kB

Podmínky prostředí

Pracovní teplota:	+5 - +66 °C @ T = measurement point
Vlhkost:	10 - 90 % (non-condensing)
Třída krytí:	IP 40

Prohlášení o shodě

Prohlášení o shodě:

CE
RoHS
EAC
BIS-CRS (R-41207004)

Foto	Produkt (1) / Popis	Skladová dostupnost
	Z-Power Supply Kit LX PX VCXG int. universal power supply 12V/2,0A international with adapters for EU, US, UK, AU, KR power supply and process interface adapter cable for LX, PX and VCXG cameras, length 5,0 m	1 ks

Foto	Produkt (1) / Popis	Skladová dostupnost
	LXGxx Starter Kit dual port GigE PCIe x4 interface board with PoE support GigE cables 3,0 m (2 pieces) trigger/flash cable, 5,0 m power supply kit for LX, PX and VCXG cameras Mounting Adapter Type B (Tripod) Software (WINDOWS, LINUX, LINUX ARM) via Download camera not included	na dotaz

Foto	Produkt (3) / Popis	Skladová dostupnost
	PCIe Ethernet Server Adapter I210 Gigabit Ethernet network adapter PCIe x1 (single lane) server adapter single GigE port supports screw lock connectors	na dotaz
	ZVA-Intel_Eth_Serv Adaptr_I350-T2V2 Gigabit Ethernet network adapter PCIe x2 (dual lane) server adapter single GigE port	na dotaz
	ZVA-PCIe-1672E-AE Gigabit Ethernet interface board PCIe x4 (quad lane) Dual GigE port Note: 4 lane PCI Express connector required	na dotaz

Foto	Produkt (7) / Popis	Skladová dostupnost
	Adapter M58 / C-Mount Adaptér M58 / C-mount	na dotaz
	Adapter M58 / F-Mount Adaptér M58 / F-mount	na dotaz
	Adapter M58 / M42x1-Mount (16 mm) Adaptér M58 / M42x1-mount (16 mm)	na dotaz
	Adapter M58 / M42x1-Mount (18 mm) Adaptér M58 / M42x1-mount (18 mm)	na dotaz
	Adapter M58 / M42x1-Mount (26,8 mm) Adaptér M58 / M42x1-mount (26,8 mm)	na dotaz
	Adapter M58 / M42x1-Mount (45,5 mm) Adaptér M58 / M42x1-mount (45,5 mm)	na dotaz
	Adapter M58 / M42x1-Mount (9,9 mm) Adaptér M58 / M42x1-mount (26,8 mm)	na dotaz

Foto	Produkt (15) / Popis	Skladová dostupnost
	ZVL-Interlock_Compact_2.4/25_M42 Carl Zeiss lens 25 mm F 2,4-22 format 43 mm M.O.D. 0,25 m locating screw for aperture and focus M42-mount	na dotaz
	ZVL-Interlock_Compact_2.4/85_M42 Carl Zeiss lens 85 mm F 2,4-22 format 43 mm M.O.D. 0,8 m locating screw for aperture and focus M42-mount	na dotaz
	ZVL-Interlock_Compact_2.8/21_M42 Carl Zeiss lens 21 mm F 2,8-22 format 43 mm M.O.D. 0,25 m locating screw for aperture and focus M42-mount	na dotaz
	ZVL-Interlock_Compact_2/35_M42 Carl Zeiss lens 35 mm F 2,0-22 format 43 mm M.O.D. 0,3 m locating screw for aperture and focus M42-mount	na dotaz
	ZVL-Interlock_Compact_2/50_M42 Carl Zeiss lens 50 mm F 2,0-22 format 43 mm M.O.D. 0,45 m locating screw for aperture and focus M42-mount	na dotaz
	ZVL-LSF10528-F Myutron lens 105 mm F 2,8-22 format 46 mm M.O.D. 0,43 m locating screw for aperture and focus F-mount	na dotaz
	ZVL-LSF10528-U58 Myutron lens 105 mm F 2,8-22 format 46 mm M.O.D. 0,43 m locating screw for aperture and focus M58-mount focal flange distance 12 mm	na dotaz
	ZVL-LSF20035-F Myutron lens 200 mm F 3,5-32 format 46 mm M.O.D. 0,85 m locating screw for aperture and focus F-mount	na dotaz
	ZVL-LSF20035-U58 Myutron lens 200 mm F 3,5-32 format 46 mm M.O.D. 0,85 m locating screw for aperture and focus M58-mount focal flange distance 12 mm	na dotaz
	ZVL-LSF2528-F Myutron lens 25 mm F 2,8-22 format 44 mm M.O.D. 0,14 m locating screw for aperture and focus F-mount	na dotaz
	ZVL-LSF2528-U58 Myutron lens 25 mm F 2,8-22 format 44 mm M.O.D. 0,14 m locating screw for aperture and focus M58-mount focal flange distance 12 mm	na dotaz
	ZVL-LSF3528-F Objektiv Myutron 35 mm F 2,8-22 formát 44 mm M.O.D. 0,23 m polohovací šroub pro clonu a ostření F-mount	na dotaz
	ZVL-LSF3528-U58 Myutron lens 35 mm F 2,8-22 format 44 mm M.O.D. 0,23 m locating screw for aperture and focus M58-mount focal flange distance 12 mm	na dotaz
	ZVL-LSF5028-F Myutron lens 50 mm F 2,8-22 format 44 mm M.O.D. 0,19 m locating screw for aperture and focus F-mount	na dotaz
	ZVL-LSF5028-U58 Myutron lens 50 mm F 2,8-22 format 44 mm M.O.D. 0,19 m locating screw for aperture and focus M58-mount focal flange distance 12 mm	na dotaz

Foto	Produkt (1) / Popis	Skladová dostupnost
	GigE Power Switch GigE switch PoE and Jumbo Frame support 4x 1000base-T DIN rail mounting operating voltage: 24-48 V; PoE requires 48 V	na dotaz

Foto	Produkt (11) / Popis	Skladová dostupnost
	Cable GigE RJ45/RJ45, 3,0 m Kabel rozhraní Gigabit Ethernet CAT7 Délka 3,0 m	na dotaz
	Cable GigE RJ45/RJ45, 6,0 m Kabel rozhraní Gigabit Ethernet CAT7 Délka 6,0 m	na dotaz
	Cable GigE RJ45s/RJ45, 10,0 m, flex v2 Kabel rozhraní Gigabit Ethernet CAT5e RJ45 (šroubovací) na RJ45 vhodné pro kabelové nosiče a torzní aplikace Délka 10,0 m	na dotaz
	Cable GigE RJ45s/RJ45, 20,0 m, flex v2 Kabel rozhraní Gigabit Ethernet CAT5e RJ45 (šroubovací) na RJ45 vhodné pro kabelové nosiče a torzní aplikace Délka 20 m	na dotaz
	Cable GigE RJ45s/RJ45, 30,0 m, flex v2 Kabel rozhraní Gigabit Ethernet CAT5e RJ45 (šroubovací) na RJ45 vhodné pro kabelové nosiče a torzní aplikace Délka 30 m	na dotaz
	Kabel GigE RJ45s/RJ45, 10,0 m, chain Gigabit Ethernet interface cable CAT6 RJ45 (screw lock) to RJ45 cable carrier compatible length 10,0 m	na dotaz
	Kabel GigE RJ45s/RJ45, 15,0 m, chain Gigabit Ethernet interface cable CAT6 RJ45 (screw lock) to RJ45 cable carrier compatible length 15,0 m	na dotaz
	Kabel GigE RJ45s/RJ45, 20,0 m, chain Gigabit Ethernet interface cable CAT6 RJ45 (screw lock) to RJ45 cable carrier compatible length 20,0 m	na dotaz
	Kabel GigE RJ45s/RJ45, 5,0 m, chain Gigabit Ethernet interface cable CAT6 RJ45 (screw lock) to RJ45 cable carrier compatible length 5,0 m	5 ks
	Z-ESG 32FP0500G shielded process interface cable M8/8-pin female connector to open wires cable carrier compatible length 5,0 m	na dotaz
	Z-ESW 31FH0500 process interface cable 90° angled M8/8-pin female connector to open wires length 5,0 m alternative article: CAM8.A8-11232605	na dotaz

Foto	Produkt (6) / Popis	Skladová dostupnost
	Heat Sink Type A heat sink for TX, VCXG.I, VisiLine, VisiLine IP, LX and HX cameras incl. screws (hexagon socket) and washers 48 mm x 33 mm x 16,5 mm	1 ks
	Heat Sink Type B heat sink for TX, VCXG.I, VisiLine, VisiLine IP, LX and HX cameras incl. screws (hexagon socket) and washers 50 mm x 50 mm x 40 mm	na dotaz
	Mounting Adapter Type B (Tripod) camera mounting adapter for TX, VisiLine, VisiLine IP, VCXG.I, LXG, LXC, PX and SX/HX cameras incl. screws (hexagon socket) and washers stable bottom and tripod mounting	na dotaz
	Mounting Adapter Type C camera mounting adapter for TX, VisiLine, VisiLine IP, VCXG.I, LX and HX cameras incl. screws (hexagon socket) and washers stable sidewise mounting	na dotaz
	Mounting Adapter Type H camera mounting adapter for cameras of the CX, LX and QX series incl. screw (hexagon socket) rotatable mounting	1 ks
	Mounting Adapter Type I laser mounting adapter for Z-Lasers ZM18 lasers rotatable mounting	1 ks

Produkt (43)	Senzor	Senzor typ	Barevné modely	Snímkovací frekvence	Rozlišení kamery	Skladová dostupnost
LXC-120C	ams (CMOSIS) CMV12000	APS-C CMOS	Raw Bayer	51 … 100 fps	> 8 – 20 MP	na dotaz
LXC-120M	ams (CMOSIS) CMV12000	APS-C CMOS	Mono	51 … 100 fps	> 8 – 20 MP	na dotaz
LXC-200C	ams (CMOSIS) CMV20000	35 mm CMOS	Raw Bayer	31 … 40 fps	> 8 – 20 MP	na dotaz
LXC-200M	ams (CMOSIS) CMV20000	35 mm CMOS	Mono	31 … 40 fps	> 8 – 20 MP	na dotaz
LXC-20C	ams (CMOSIS) CMV2000 V3	2/3″ CMOS	Raw Bayer	301 … 400 fps	> 1 – 2 MP	na dotaz
LXC-20M	ams (CMOSIS) CMV2000 V3	2/3″ CMOS	Mono	301 … 400 fps	> 1 – 2 MP	na dotaz
LXC-250C	onsemi PYTHON 25K	APS-H CMOS	Raw Bayer	31 … 40 fps	> 20 – 50 MP	na dotaz
LXC-250M	onsemi PYTHON 25K	APS-H CMOS	Mono	31 … 40 fps	> 20 – 50 MP	na dotaz
LXC-40C	ams (CMOSIS) CMV4000 V3	1″ CMOS	Raw Bayer	101 … 200 fps	> 2 – 5 MP	na dotaz
LXC-40M	ams (CMOSIS) CMV4000 V3	1″ CMOS	Mono	101 … 200 fps	> 2 – 5 MP	na dotaz
LXC-500C	ams (CMOSIS) CMV50000	35 mm CMOS	Raw Bayer	11 … 20 fps	> 20 – 50 MP	na dotaz
LXC-500M	ams (CMOSIS) CMV50000	35 mm CMOS	Mono	11 … 20 fps	> 20 – 50 MP	na dotaz
LXG-120C	ams (CMOSIS) CMV12000	APS-C CMOS	Raw Bayer	11 … 20 fps	> 8 – 20 MP	na dotaz
LXG-120M	ams (CMOSIS) CMV12000	APS-C CMOS	Mono	11 … 20 fps	> 8 – 20 MP	na dotaz
LXG-200C	ams (CMOSIS) CMV20000	35 mm CMOS	Raw Bayer	11 … 20 fps	> 8 – 20 MP	na dotaz
LXG-200M	ams (CMOSIS) CMV20000	35 mm CMOS	Mono	11 … 20 fps	> 8 – 20 MP	na dotaz
LXG-20C	ams (CMOSIS) CMV2000 V3	2/3″ CMOS	Raw Bayer	101 … 200 fps	> 1 – 2 MP	na dotaz
LXG-20M	ams (CMOSIS) CMV2000 V3	2/3″ CMOS	Mono	101 … 200 fps	> 1 – 2 MP	na dotaz
LXG-20M.JP	ams (CMOSIS) CMV2000 V3	2/3″ CMOS	Mono	101 … 200 fps	> 1 – 2 MP	na dotaz
LXG-20NIR	ams (CMOSIS) CMV2000 V3	2/3″ CMOS	Mono NIR	101 … 200 fps	> 1 – 2 MP	na dotaz
LXG-250C	onsemi PYTHON 25K	APS-H CMOS	Raw Bayer	1 … 10 fps	> 20 – 50 MP	na dotaz
LXG-250M	onsemi PYTHON 25K	APS-H CMOS	Mono	1 … 10 fps	> 20 – 50 MP	na dotaz
LXG-250M.JP	onsemi PYTHON 25K	APS-H CMOS	Mono	1 … 10 fps	> 20 – 50 MP	na dotaz
LXG-40C	ams (CMOSIS) CMV4000 V3	1″ CMOS	Raw Bayer	51 … 100 fps	> 2 – 5 MP	na dotaz
LXG-40M	ams (CMOSIS) CMV4000 V3	1″ CMOS	Mono	51 … 100 fps	> 2 – 5 MP	na dotaz
LXG-40M.JP	ams (CMOSIS) CMV4000 V3	1″ CMOS	Mono	51 … 100 fps	> 2 – 5 MP	na dotaz
LXG-40NIR	ams (CMOSIS) CMV4000 V3	1″ CMOS	Mono NIR	51 … 100 fps	> 2 – 5 MP	na dotaz
LXG-500C	ams (CMOSIS) CMV50000	35 mm CMOS	Raw Bayer	1 … 10 fps	> 20 – 50 MP	na dotaz
LXG-500M	ams (CMOSIS) CMV50000	35 mm CMOS	Mono	1 … 10 fps	> 20 – 50 MP	na dotaz
LXG-80C	ams (CMOSIS) CMV8000	4/3″ CMOS	Raw Bayer	21 … 30 fps	> 8 – 20 MP	na dotaz
LXG-80M	ams (CMOSIS) CMV8000	4/3″ CMOS	Mono	21 … 30 fps	> 8 – 20 MP	na dotaz
VLXT-06C.I.JP	Sony IMX426 Gen3	1/1.7″ CMOS	Mono Raw Bayer RGB BGR	≥ 501 fps	0.3 MP – 1 MP	na dotaz
VLXT-17M.I	Sony IMX425 Gen3	1.1″ CMOS	Mono	≥ 501 fps	> 1 – 2 MP	na dotaz
VLXT-240C.I	Sony IMX530 Gen4	1.2″ CMOS	Mono Raw Bayer RGB BGR	41 … 50 fps	> 20 – 50 MP	na dotaz
VLXT-240M.I	Sony IMX530 Gen4	1.2″ CMOS	Mono	41 … 50 fps	> 20 – 50 MP	na dotaz
VLXT-28M.I	Sony IMX421 Gen3	2/3″ CMOS	Mono	401 … 500 fps	> 2 – 5 MP	na dotaz
VLXT-28M.I.JP	Sony IMX421 Gen3	2/3″ CMOS	Mono	401 … 500 fps	> 2 – 5 MP	na dotaz
VLXT-31C.I.JP	Sony IMX252 Gen2	1/1.8″ CMOS	Mono Raw Bayer RGB BGR	201 … 300 fps	> 2 – 5 MP	na dotaz
VLXT-650C.I	Gpixel GMAX3265	2.3″ CMOS	Mono	11 … 20 fps	> 50 MP	na dotaz
VLXT-650M.I	Gpixel GMAX3265	2.3″ CMOS	Mono	11 … 20 fps	> 50 MP	na dotaz
VLXT-71C.I	Sony IMX420 Gen3	1.1″ CMOS	Mono Raw Bayer RGB BGR	101 … 200 fps	> 5 – 8 MP	na dotaz
VLXT-71M.I	Sony IMX420 Gen3	1.1″ CMOS	Mono	101 … 200 fps	> 5 – 8 MP	na dotaz
VLXT-90M.I.JP	Sony IMX255 Gen2	1″ CMOS	Mono	51 … 100 fps	> 8 – 20 MP	na dotaz

Napište nám

V případě jakéhokoli dotazu nás neváhejte kontaktovat. Velice rádi Vám odpovíme.

ajptech.cz logo

:: Generated at: 22.03.2025 16:39.41 :: Generated in: 0.797 sec :: SQL calls: 356 | SqlCacheCalls: 797 :: Max memory: 5.26mb ::
:: UserID: :: Debug all: 1 :: Version: frams_sys_func(20240408), frams_sys_form(20250224), frams_func_web_shared(20240812), frams_func_web_show(20240813), frams_web_modules(20230925), ::

Traced system calls log (436 / 437)	Taken	Runtime	Memory
SYS INIT \| Basic functions loaded	0.0001	0.0001	352.74 kb
SYS INIT \| Web functions loaded	0.0000	0.0001	354.30 kb
SQL (std)\| DB connecting start DB 477_ajptech@477_ajptech - flush before	0.0001	0.0002	361.09 kb
SQL (std)\| DB connected to DB 477_ajptech	0.0061	0.0063	404.74 kb
SQL (std)\| Charset server default: utf8mb4 (no need to change)	0.0000	0.0063	405.70 kb
SYS INIT \| Web settings from DB \| Start	0.0000	0.0063	403.81 kb
CACHE FILE \| READ \| sys_settings \| Unserialized	0.0012	0.0075	485.76 kb
SYS INIT \| Web settings from DB \| Loaded	0.0000	0.0075	450.45 kb
SYS AUTOLOAD CLASS \| mod_gallery \| Start	0.0001	0.0076	452.08 kb
SYS AUTOLOAD CLASS \| mod_gallery \| Loaded	0.0000	0.0076	453.78 kb
SYS AUTOLOAD CLASS \| mod_search \| Start	0.0000	0.0076	454.02 kb
SYS AUTOLOAD CLASS \| mod_search \| Loaded	0.0001	0.0077	455.05 kb
SYS AUTOLOAD CLASS \| mod_cookie_eu \| Start	0.0000	0.0077	455.05 kb
SYS AUTOLOAD CLASS \| mod_cookie_eu \| Loaded	0.0000	0.0077	456.69 kb
SYS AUTOLOAD CLASS \| mod_sliderbx \| Start	0.0000	0.0077	456.69 kb
SYS AUTOLOAD CLASS \| mod_sliderbx \| Loaded	0.0000	0.0077	457.55 kb
SYS INIT \| LoadWebModules \| Start	0.0001	0.0078	457.26 kb
SYS INIT \| LoadWebModules /storage/var/www/ajptech.cz/domains/www/_pr/mod_ajpcat/_functions.php \| Done	0.0001	0.0079	502.58 kb
SYS INIT \| LoadWebModules /storage/var/www/ajptech.cz/domains/www/_pr/mod_ajpeople/_functions.php \| Done	0.0000	0.0079	508.10 kb
SYS INIT \| LoadWebModules /storage/var/www/ajptech.cz/domains/www/_pr/mod_ajpart/_functions.php \| Done	0.0000	0.0079	534.80 kb
SYS INIT \| LoadWebModules /storage/var/www/ajptech.cz/domains/www/_pr/mod_ajpusec/_functions.php \| Done	0.0001	0.0080	536.57 kb
SYS INIT \| Web modules loaded	0.0000	0.0080	535.63 kb
TIMING \| GetPageInfo - Start	0.0000	0.0080	535.63 kb
SQL (std)\| SELECT * FROM `webpages_aliases` WHERE `address_complete`='produkty/prumyslove-snimace-a-kamery/kamery-a-ctecky/prumyslove-kamery/kamery-pro-narocne-aplikace/rychle-a-robustni-kamery-rady-lx-s-vysokym-rozlisenim/lxg_120c' AND `active`='1' LIMIT 1	0.0031	0.0111	554.33 kb
SQL (std)\| SELECT * FROM `mod_ajpcat_items` WHERE `id`='62' LIMIT 1	0.0012	0.0123	639.77 kb
SQL (std)\| SELECT `id` FROM `webpages_data` WHERE webpages_aliases_hash='1ec6ea64a1a84a717ff073a418396160' AND del='0'	0.0022	0.0145	616.05 kb
SQL (std)\| SELECT * FROM `mod_ajpcat_categories` WHERE `id`='226' LIMIT 1	0.0010	0.0155	635.91 kb
SQL (std)\| SELECT `id`,`id_parent`,`default_page`,`name_address_complete`,`name_address`,`webpages_aliases_hash`,`name`,`name_menu`,`name_header_force`,`idsw_languages` FROM `webpages_data` WHERE `id`='265' LIMIT 1	0.0014	0.0169	633.23 kb
SQL (std)\| SELECT `id`,`id_parent`,`default_page`,`name_address_complete`,`name_address`,`webpages_aliases_hash`,`name`,`name_menu`,`name_header_force`,`idsw_languages` FROM `webpages_data` WHERE `id`='539' LIMIT 1	0.0092	0.0261	638.63 kb
SQL (std)\| SELECT `id`,`id_parent`,`default_page`,`name_address_complete`,`name_address`,`webpages_aliases_hash`,`name`,`name_menu`,`name_header_force`,`idsw_languages` FROM `webpages_data` WHERE `id`='36' LIMIT 1	0.0011	0.0272	642.13 kb
SQL (std)\| SELECT `id`,`id_parent`,`default_page`,`name_address_complete`,`name_address`,`webpages_aliases_hash`,`name`,`name_menu`,`name_header_force`,`idsw_languages` FROM `webpages_data` WHERE `id`='17' LIMIT 1	0.0097	0.0369	644.97 kb
SQL (std)\| SELECT `id`,`id_parent`,`default_page`,`name_address_complete`,`name_address`,`webpages_aliases_hash`,`name`,`name_menu`,`name_header_force`,`idsw_languages` FROM `webpages_data` WHERE `id`='2' LIMIT 1	0.0008	0.0377	647.90 kb
TIMING \| GetPageInfo - Done	0.0001	0.0378	628.98 kb
TIMING \| OG Image - Start gen info	0.0002	0.0380	616.38 kb
TIMING \| OG Image - End gen info	0.0010	0.0390	618.05 kb
CACHE FILE \| GET \| mod_cookie_eu ()	0.0003	0.0393	622.87 kb
CACHE FILE \| READ \| mod_cookie_eu \| Unserialized	0.0010	0.0403	641.12 kb
TIMING \| Main menu - Start generate	0.0022	0.0425	641.53 kb
CACHE FILE \| GET \| sys_menu (TO_LEVEL;1\|IDSW_LANGUAGES;1\|SET_MENU_ID;menu\|SET_MENU_CLASS;menu\|PRECACHE_URLS;3765dc1068dc7251097873029d8365d2\|LEVEL;0\|)	0.0001	0.0426	653.22 kb
CACHE FILE \| READ \| sys_menu \| Unserialized	0.0011	0.0437	757.80 kb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`default_page`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `active`='1' AND (`id_webpages_data`='15')	0.0065	0.0502	726.95 kb
TIMING \| Main menu - End generate	0.0002	0.0504	708.74 kb
CACHE FILE \| GET \| mod_search_web_show (show)	0.0001	0.0505	709.49 kb
CACHE FILE \| READ \| mod_search_web_show \| Unserialized	0.0010	0.0515	718.77 kb
TIMING \| Text - Start generate	0.0004	0.0519	720.81 kb
CACHE FILE \| GET \| mod_ajpcat_show_item (;ID_ITEMS\|62;62\|;ID_CATEGORIES\|226;226\|;LANG\|cz;cz\|;\|;\|;\|;\|;\|;\|;\|;\|;\|;\|;\|USEC-LOGGED;\|)	0.0000	0.0519	725.73 kb
CACHE FILE \| FAILED \| mod_ajpcat_show_item (;ID_ITEMS\|62;62\|;ID_CATEGORIES\|226;226\|;LANG\|cz;cz\|;\|;\|;\|;\|;\|;\|;\|;\|;\|;\|;\|USEC-LOGGED;\|) \| OVERDATE / NOT EXISTS - NOT USED	0.0010	0.0529	725.91 kb
CACHE FILE \| CATCH START \| mod_ajpcat_show_item	0.0000	0.0529	726.91 kb
CACHE FILE \| CATCH ADD \| mod_ajpcat_show_item \|	0.0001	0.0530	729.74 kb
CACHE FILE \| CATCH ADD \| mod_ajpcat_show_item \|	0.0000	0.0530	730.48 kb
CACHE FILE \| CATCH ADD \| mod_ajpcat_show_item \|	0.0000	0.0530	731.69 kb
CACHE FILE \| CATCH ADD \| mod_ajpcat_show_item \|	0.0000	0.0530	732.79 kb
CACHE FILE \| CATCH ADD \| mod_ajpcat_show_item \|	0.0000	0.0530	732.05 kb
SQL (std)\| SELECT * FROM `mod_ajpcat_list_manufacturer` WHERE `id`='1' LIMIT 1	0.0020	0.0550	748.01 kb
SQL (std)\| SELECT store_card_name,sum_quantity FROM `mod_ajpcat_abra` WHERE del='0' AND id_items_grouped LIKE '%\|62\|%'	0.0352	0.0902	751.56 kb
SQL (std)\| SELECT `id`,`text_info_cz` FROM `mod_ajpcat_list_availability` WHERE `id`='1' LIMIT 1	0.0009	0.0911	769.40 kb
SQL (std)\| SELECT * FROM mod_ajpeople_items WHERE published_cz='1' AND del='0' AND ( id='31' ) ORDER BY priority DESC, name_cz ASC	0.0046	0.0957	784.31 kb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='e6c55188740b469463a111f645c33b72' LIMIT 1	0.0008	0.0965	806.02 kb
CACHE FILE \| CATCH ADD \| mod_ajpcat_show_item \|	0.0000	0.0965	794.86 kb
CACHE FILE \| CATCH ADD \| mod_ajpcat_show_item \|	0.0000	0.0965	794.13 kb
CACHE FILE \| CATCH ADD \| mod_ajpcat_show_item \|	0.0001	0.0966	794.18 kb
CACHE FILE \| CATCH ADD \| mod_ajpcat_show_item \|	0.0000	0.0966	798.13 kb
CACHE FILE \| CATCH ADD \| mod_ajpcat_show_item \|	0.0000	0.0966	797.39 kb
SQL (std)\| SELECT * FROM mod_ajpeople_items WHERE published_cz='1' AND del='0' AND ( id='31' ) ORDER BY priority DESC, name_cz ASC	0.0017	0.0983	793.62 kb
CACHE FILE \| CATCH ADD \| mod_ajpcat_show_item \|	0.0001	0.0984	803.76 kb
CACHE FILE \| CATCH ADD \| mod_ajpcat_show_item \|	0.0000	0.0984	803.02 kb
CACHE FILE \| CATCH ADD \| mod_ajpcat_show_item \|	0.0000	0.0984	803.08 kb
CACHE FILE \| CATCH ADD \| mod_ajpcat_show_item \|	0.0000	0.0984	803.02 kb
CACHE FILE \| CATCH ADD \| mod_ajpcat_show_item \|	0.0000	0.0984	802.29 kb
SQL (std)\| SELECT * FROM `mod_ajpcat_blocks` WHERE `id_items`='62' AND del='0' ORDER BY priority DESC, id ASC	0.0008	0.0992	798.85 kb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_availability` WHERE `id`='1' LIMIT 1	0.0006	0.0998	801.47 kb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_operating_temperature` WHERE `id`='45' LIMIT 1	0.0116	0.1114	801.96 kb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_resolution` WHERE `id`='45' LIMIT 1	0.0117	0.1231	803.26 kb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_data_interface` WHERE `id`='2' LIMIT 1	0.0086	0.1317	804.59 kb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_resolution1` WHERE `id`='2' LIMIT 1	0.0016	0.1333	805.85 kb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_frame_rate` WHERE `id`='10' LIMIT 1	0.0078	0.1411	807.11 kb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_protection_class` WHERE `id`='1' LIMIT 1	0.0009	0.1420	808.34 kb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_color_models` WHERE `id`='3' LIMIT 1	0.0058	0.1478	810.22 kb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor` WHERE `id`='16' LIMIT 1	0.0013	0.1491	811.85 kb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_pixel_size` WHERE `id`='5' LIMIT 1	0.0086	0.1577	813.09 kb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor_type` WHERE `id`='9' LIMIT 1	0.0050	0.1627	814.28 kb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_shutter_type` WHERE `id`='1' LIMIT 1	0.0080	0.1707	819.60 kb
SQL (std)\| SELECT id FROM `mod_ajpcat_items` WHERE `del`='0' AND ( `id_items_related_1`='62' OR `id_items_related_2`='62' OR `id_items_related_3`='62' OR `id_items_related_4`='62' OR `id_items_related_5`='62' )	0.0800	0.2507	817.15 kb
SQL (std)\| SELECT id FROM `mod_ajpcat_items` WHERE `del`='0' AND ( `id_items_related_1`='62' OR `id_items_related_2`='62' OR `id_items_related_3`='62' OR `id_items_related_4`='62' OR `id_items_related_5`='62' OR `id_items_accessories_1`='62' OR `id_items_accessories_2`='62' OR `id_items_accessories_3`='62' OR `id_items_accessories_4`='62' OR `id_items_accessories_5`='62' OR `id_items_accessories_6`='62' OR `id_items_accessories_7`='62' OR `id_items_accessories_8`='62' OR `id_items_accessories_9`='62' OR `id_items_accessories_10`='62' OR `id_items_accessories_11`='62' OR `id_items_accessories_12`='62' OR `id_items_accessories_13`='62' OR `id_items_accessories_14`='62' OR `id_items_accessories_15`='62' )	0.1107	0.3614	835.02 kb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='22678'	0.0078	0.3692	835.34 kb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='3659' AND del='0'	0.0064	0.3756	836.31 kb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='20285' AND del='0'	0.0055	0.3811	848.96 kb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20285' LIMIT 1	0.0007	0.3818	849.98 kb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Sensor'	0.0009	0.3827	850.89 kb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='28968' AND del='0'	0.0011	0.3838	855.72 kb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='28968' LIMIT 1	0.0005	0.3843	856.70 kb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Mono/Color'	0.0006	0.3849	856.92 kb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='20297' AND del='0'	0.0019	0.3868	859.52 kb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20297' LIMIT 1	0.0007	0.3875	860.53 kb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Color filter'	0.0006	0.3881	860.76 kb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='20281' AND del='0'	0.0012	0.3893	867.39 kb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20281' LIMIT 1	0.0020	0.3913	868.36 kb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Sensor type'	0.0007	0.3920	868.59 kb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='23925' AND del='0'	0.0016	0.3936	871.19 kb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='23925' LIMIT 1	0.0005	0.3941	872.16 kb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Shutter type'	0.0006	0.3947	872.38 kb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='20306' AND del='0'	0.0012	0.3959	874.98 kb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20306' LIMIT 1	0.0006	0.3965	876.02 kb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Resolution'	0.0006	0.3971	876.24 kb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='20309' AND del='0'	0.0012	0.3983	878.78 kb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20309' LIMIT 1	0.0006	0.3989	880.13 kb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Pixel size'	0.0006	0.3995	880.35 kb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='20298' AND del='0'	0.0011	0.4006	882.89 kb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20298' LIMIT 1	0.0006	0.4012	884.97 kb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Exposure time'	0.0005	0.4017	885.20 kb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='1' AND name_en='Sensor information'	0.0006	0.4023	887.23 kb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='29045' AND del='0'	0.0010	0.4033	891.57 kb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='29045' LIMIT 1	0.0005	0.4038	896.55 kb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Dark noise'	0.0006	0.4044	897.40 kb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='29046' AND del='0'	0.0010	0.4054	900.02 kb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='29046' LIMIT 1	0.0005	0.4059	900.99 kb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Saturation capacity'	0.0008	0.4067	901.23 kb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='29047' AND del='0'	0.0011	0.4078	903.86 kb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='29047' LIMIT 1	0.0006	0.4084	904.85 kb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Dynamic range'	0.0005	0.4089	905.08 kb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='29048' AND del='0'	0.0024	0.4113	907.69 kb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='29048' LIMIT 1	0.0005	0.4118	908.68 kb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Signal-to-noise ratio'	0.0007	0.4125	908.95 kb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='29049' AND del='0'	0.0021	0.4146	911.56 kb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='29049' LIMIT 1	0.0005	0.4151	912.57 kb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Quantum efficiency'	0.0007	0.4158	912.80 kb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='1' AND name_en='Data quality (EMVA 1288 typical)'	0.0006	0.4164	915.54 kb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='20312' AND del='0'	0.0013	0.4177	918.23 kb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20312' LIMIT 1	0.0009	0.4186	919.29 kb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Image formats, interface frame rate max.'	0.0006	0.4192	923.62 kb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='22798' AND del='0'	0.0010	0.4202	926.36 kb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='22798' LIMIT 1	0.0012	0.4214	928.02 kb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Image formats, aquisition frame rate max. (Burst Mode)'	0.0006	0.4220	928.41 kb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='20310' AND del='0'	0.0011	0.4231	934.89 kb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20310' LIMIT 1	0.0005	0.4236	937.76 kb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Pixel formats'	0.0005	0.4241	937.98 kb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='1' AND name_en='Acquisition formats'	0.0006	0.4247	940.15 kb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='20201' AND del='0'	0.0011	0.4258	942.73 kb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20201' LIMIT 1	0.0005	0.4263	943.86 kb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Analog controls'	0.0006	0.4269	945.34 kb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='20198' AND del='0'	0.0012	0.4281	948.04 kb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20198' LIMIT 1	0.0007	0.4288	948.93 kb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Color models'	0.0005	0.4293	949.16 kb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='20196' AND del='0'	0.0012	0.4305	951.79 kb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20196' LIMIT 1	0.0005	0.4310	952.75 kb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Color processing'	0.0005	0.4315	952.98 kb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='1' AND name_en='Image preprocessing'	0.0006	0.4321	959.13 kb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='20268' AND del='0'	0.0013	0.4334	961.81 kb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20268' LIMIT 1	0.0005	0.4339	962.84 kb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Synchronization'	0.0005	0.4344	963.06 kb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='20266' AND del='0'	0.0013	0.4357	965.68 kb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20266' LIMIT 1	0.0005	0.4362	966.70 kb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Trigger sources'	0.0006	0.4368	966.92 kb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='20267' AND del='0'	0.0011	0.4379	969.73 kb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20267' LIMIT 1	0.0010	0.4389	970.85 kb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Trigger delay'	0.0008	0.4397	971.08 kb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='20271' AND del='0'	0.0010	0.4407	973.81 kb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20271' LIMIT 1	0.0006	0.4413	974.76 kb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Sequencer'	0.0051	0.4464	974.95 kb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='20269' AND del='0'	0.0033	0.4497	977.74 kb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20269' LIMIT 1	0.0005	0.4502	978.77 kb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Sequencer parameter'	0.0062	0.4564	979.00 kb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='20236' AND del='0'	0.0034	0.4598	981.78 kb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20236' LIMIT 1	0.0006	0.4604	986.75 kb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Digital inputs'	0.0023	0.4627	986.98 kb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='20239' AND del='0'	0.0043	0.4670	989.68 kb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20239' LIMIT 1	0.0043	0.4713	990.65 kb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Digital outputs'	0.0006	0.4719	990.88 kb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='20272' AND del='0'	0.0015	0.4734	993.45 kb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20272' LIMIT 1	0.0005	0.4739	994.41 kb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Internal image buffer'	0.0035	0.4774	994.68 kb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='1' AND name_en='Camera features'	0.0008	0.4782	996.86 kb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='20188' AND del='0'	0.0013	0.4795	999.27 kb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20188' LIMIT 1	0.0005	0.4800	1 000.41 kb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Data interface'	0.0006	0.4806	1 000.63 kb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='20221' AND del='0'	0.0015	0.4821	1 010.88 kb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20221' LIMIT 1	0.0005	0.4826	1 011.85 kb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Process interface'	0.0008	0.4834	1 012.09 kb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='20175' AND del='0'	0.0014	0.4848	1 014.70 kb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20175' LIMIT 1	0.0005	0.4853	1 015.73 kb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Power supply'	0.0007	0.4860	1 019.95 kb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='1' AND name_en='Interfaces and connectors'	0.0006	0.4866	1 022.13 kb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='20163' AND del='0'	0.0021	0.4887	1.00 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20163' LIMIT 1	0.0007	0.4894	1.00 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Lens mount'	0.0008	0.4902	1.00 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='20157' AND del='0'	0.0013	0.4915	1.01 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20157' LIMIT 1	0.0049	0.4964	1.01 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Width'	0.0074	0.5038	1.01 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='20150' AND del='0'	0.0032	0.5070	1.01 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20150' LIMIT 1	0.0096	0.5166	1.01 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Height'	0.0100	0.5266	1.02 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='20143' AND del='0'	0.0044	0.5310	1.02 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20143' LIMIT 1	0.0006	0.5316	1.02 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Depth'	0.0048	0.5364	1.02 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='20152' AND del='0'	0.0068	0.5432	1.02 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20152' LIMIT 1	0.0005	0.5437	1.02 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Weight'	0.0029	0.5466	1.02 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='20147' AND del='0'	0.0081	0.5547	1.03 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20147' LIMIT 1	0.0016	0.5563	1.03 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Material'	0.0066	0.5629	1.03 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='1' AND name_en='Mechanical data'	0.0006	0.5635	1.03 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='20240' AND del='0'	0.0036	0.5671	1.04 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20240' LIMIT 1	0.0043	0.5714	1.04 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Voltage supply range +Vs'	0.0050	0.5764	1.04 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='20228' AND del='0'	0.0069	0.5833	1.04 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20228' LIMIT 1	0.0006	0.5839	1.04 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Power consumption'	0.0038	0.5877	1.04 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='1' AND name_en='Electrical data'	0.0011	0.5888	1.04 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='22248' AND del='0'	0.0012	0.5900	1.05 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='22248' LIMIT 1	0.0009	0.5909	1.05 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Flash memory size'	0.0027	0.5936	1.05 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='1' AND name_en='Non-volatile memory'	0.0006	0.5942	1.05 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='20120' AND del='0'	0.0028	0.5970	1.06 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20120' LIMIT 1	0.0016	0.5986	1.06 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Operating temperature'	0.0007	0.5993	1.06 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='20112' AND del='0'	0.0011	0.6004	1.06 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20112' LIMIT 1	0.0005	0.6009	1.06 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Humidity'	0.0005	0.6014	1.06 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='20109' AND del='0'	0.0013	0.6027	1.07 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20109' LIMIT 1	0.0005	0.6032	1.07 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Protection class'	0.0006	0.6038	1.07 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='1' AND name_en='Environmental conditions'	0.0005	0.6043	1.07 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='22340' AND del='0'	0.0014	0.6057	1.07 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='22340' LIMIT 1	0.0005	0.6062	1.07 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Conformity'	0.0007	0.6069	1.07 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='1' AND name_en='Conformity'	0.0007	0.6076	1.08 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='3679' AND del='0'	0.0034	0.6110	1.08 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='21' AND name_en='Data sheet'	0.0006	0.6116	1.12 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='21' AND name_en='Quickstart'	0.0005	0.6121	1.12 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='21' AND name_en='Operating Manual'	0.0005	0.6126	1.12 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='21' AND name_en='Certificates / approvals'	0.0005	0.6131	1.13 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='21' AND name_en='Additional information'	0.0012	0.6143	1.13 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='21' AND name_en='CAD'	0.0006	0.6149	1.14 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='22171' AND del='0'	0.0012	0.6161	1.14 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='31' AND name_en='Dimension drawing'	0.0005	0.6166	1.11 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='22172' AND del='0'	0.0005	0.6171	1.12 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='29468' AND del='0'	0.0018	0.6189	1.12 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='' AND name_en='Software'	0.0006	0.6195	1.13 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23862' AND id_baumer_attributes='22185' AND del='0'	0.0012	0.6207	1.13 mb
SQL (std)\| SELECT `id`,`id_categories` FROM `mod_ajpcat_items` WHERE ( `id_baumer_items`='24387' ) AND `del`='0'	0.0007	0.6214	1.16 mb
SQL (std)\| SELECT id, `idl_manufacturer`, `idl_type`, `idl_principle`, `idl_base`, `idl_color`, `idl_surface`, `idl_surface_type`, `idl_surface_structure`, `idl_volume`, `idl_marking_type`, `idl_marking_method`, `idl_power_supply`, `idl_marking_size`, `idl_availability`, `idl_b_product_group2`, `idl_b_model_select`, `idl_b_class`, `idl_b_emitter_reciever`, `idl_b_scanning_range`, `idl_b_sensing_distance_max`, `idl_b_features_interface`, `idl_b_type`, `idl_b_dimensions`, `idl_b_housing_version`, `idl_b_size_flange`, `idl_b_steps_turn`, `idl_b_turns_number`, `idl_b_light_source`, `idl_b_output_interface`, `idl_b_output_circuit_interface`, `idl_b_operating_temperature`, `idl_b_resolution`, `idl_b_particularchar`, `idl_b_shaft_solid`, `idl_b_shaft_hollow`, `idl_b_pulses_waves`, `idl_b_output_stages`, `idl_b_connection`, `idl_b_connection_types`, `idl_b_protection_din`, `idl_b_approvals`, `idl_b_data_interface`, `idl_b_resolution1`, `idl_b_frame_rate`, `idl_b_protection_class`, `idl_b_color_models`, `idl_b_sensor`, `idl_b_pixel_size`, `idl_b_sensor_type`, `idl_b_shutter_type`, `idl_b_application_field`, `idl_b_cable_length`, `idl_b_nominal_force`, `idl_b_options`,id_categories,id_baumer_items,abra_quantity, abra_updated, abra_codes,abra_price_czk_nvat, abra_price_eur_nvat,unavailable, last_updated,img_main, code, name_cz, name_menu_cz, auto_text_short_cz, text_short_cz FROM mod_ajpcat_items WHERE published_cz='1' AND del='0' AND (`unavailable`='0' OR `abra_quantity`>0) AND ( id='420' ) ORDER BY priority DESC, name_cz ASC	0.0008	0.6222	1.21 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_categories` WHERE `id`='271' LIMIT 1	0.0006	0.6228	1.22 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='1b694c99d16fb0aa778f2d227f3c2a29' LIMIT 1	0.0006	0.6234	1.26 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='51' AND name_en='Power supply'	0.0006	0.6240	1.23 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='7f100b7b36092fb9b06dfb4fac360931' LIMIT 1	0.0005	0.6245	1.23 mb
SQL (std)\| SELECT `id`,`id_categories` FROM `mod_ajpcat_items` WHERE ( `id_baumer_items`='24408' ) AND `del`='0'	0.0006	0.6251	1.23 mb
SQL (std)\| SELECT id, `idl_manufacturer`, `idl_type`, `idl_principle`, `idl_base`, `idl_color`, `idl_surface`, `idl_surface_type`, `idl_surface_structure`, `idl_volume`, `idl_marking_type`, `idl_marking_method`, `idl_power_supply`, `idl_marking_size`, `idl_availability`, `idl_b_product_group2`, `idl_b_model_select`, `idl_b_class`, `idl_b_emitter_reciever`, `idl_b_scanning_range`, `idl_b_sensing_distance_max`, `idl_b_features_interface`, `idl_b_type`, `idl_b_dimensions`, `idl_b_housing_version`, `idl_b_size_flange`, `idl_b_steps_turn`, `idl_b_turns_number`, `idl_b_light_source`, `idl_b_output_interface`, `idl_b_output_circuit_interface`, `idl_b_operating_temperature`, `idl_b_resolution`, `idl_b_particularchar`, `idl_b_shaft_solid`, `idl_b_shaft_hollow`, `idl_b_pulses_waves`, `idl_b_output_stages`, `idl_b_connection`, `idl_b_connection_types`, `idl_b_protection_din`, `idl_b_approvals`, `idl_b_data_interface`, `idl_b_resolution1`, `idl_b_frame_rate`, `idl_b_protection_class`, `idl_b_color_models`, `idl_b_sensor`, `idl_b_pixel_size`, `idl_b_sensor_type`, `idl_b_shutter_type`, `idl_b_application_field`, `idl_b_cable_length`, `idl_b_nominal_force`, `idl_b_options`,id_categories,id_baumer_items,abra_quantity, abra_updated, abra_codes,abra_price_czk_nvat, abra_price_eur_nvat,unavailable, last_updated,img_main, code, name_cz, name_menu_cz, auto_text_short_cz, text_short_cz FROM mod_ajpcat_items WHERE published_cz='1' AND del='0' AND (`unavailable`='0' OR `abra_quantity`>0) AND ( id='437' ) ORDER BY priority DESC, name_cz ASC	0.0008	0.6259	1.25 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_categories` WHERE `id`='276' LIMIT 1	0.0006	0.6265	1.27 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='bf3a04f03ccfd13ba70a5b1bbadd82bc' LIMIT 1	0.0006	0.6271	1.30 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='51' AND name_en='Starter Kit'	0.0006	0.6277	1.27 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='db8e1af0cb3aca1ae2d0018624204529' LIMIT 1	0.0005	0.6282	1.27 mb
SQL (std)\| SELECT `id`,`id_categories` FROM `mod_ajpcat_items` WHERE ( `id_baumer_items`='24371' OR `id_baumer_items`='24381' OR `id_baumer_items`='24368' ) AND `del`='0'	0.0007	0.6289	1.27 mb
SQL (std)\| SELECT id, `idl_manufacturer`, `idl_type`, `idl_principle`, `idl_base`, `idl_color`, `idl_surface`, `idl_surface_type`, `idl_surface_structure`, `idl_volume`, `idl_marking_type`, `idl_marking_method`, `idl_power_supply`, `idl_marking_size`, `idl_availability`, `idl_b_product_group2`, `idl_b_model_select`, `idl_b_class`, `idl_b_emitter_reciever`, `idl_b_scanning_range`, `idl_b_sensing_distance_max`, `idl_b_features_interface`, `idl_b_type`, `idl_b_dimensions`, `idl_b_housing_version`, `idl_b_size_flange`, `idl_b_steps_turn`, `idl_b_turns_number`, `idl_b_light_source`, `idl_b_output_interface`, `idl_b_output_circuit_interface`, `idl_b_operating_temperature`, `idl_b_resolution`, `idl_b_particularchar`, `idl_b_shaft_solid`, `idl_b_shaft_hollow`, `idl_b_pulses_waves`, `idl_b_output_stages`, `idl_b_connection`, `idl_b_connection_types`, `idl_b_protection_din`, `idl_b_approvals`, `idl_b_data_interface`, `idl_b_resolution1`, `idl_b_frame_rate`, `idl_b_protection_class`, `idl_b_color_models`, `idl_b_sensor`, `idl_b_pixel_size`, `idl_b_sensor_type`, `idl_b_shutter_type`, `idl_b_application_field`, `idl_b_cable_length`, `idl_b_nominal_force`, `idl_b_options`,id_categories,id_baumer_items,abra_quantity, abra_updated, abra_codes,abra_price_czk_nvat, abra_price_eur_nvat,unavailable, last_updated,img_main, code, name_cz, name_menu_cz, auto_text_short_cz, text_short_cz FROM mod_ajpcat_items WHERE published_cz='1' AND del='0' AND (`unavailable`='0' OR `abra_quantity`>0) AND ( id='411' OR id='412' OR id='416' ) ORDER BY priority DESC, name_cz ASC	0.0009	0.6298	1.30 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_categories` WHERE `id`='273' LIMIT 1	0.0006	0.6304	1.32 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='c18b79abc2d4476e3fd840c1890e19d0' LIMIT 1	0.0009	0.6313	1.35 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='7194601022511ade89c2c4325238647d' LIMIT 1	0.0006	0.6319	1.37 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='22bafadac1f4e389a7eb43f533dedc8b' LIMIT 1	0.0006	0.6325	1.39 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='51' AND name_en='PCIe/Adapter'	0.0005	0.6330	1.36 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='4734ba6f3de83d861c3176a6273cac6d' LIMIT 1	0.0005	0.6335	1.38 mb
SQL (std)\| SELECT `id`,`id_categories` FROM `mod_ajpcat_items` WHERE ( `id_baumer_items`='24334' OR `id_baumer_items`='24335' OR `id_baumer_items`='24336' OR `id_baumer_items`='24337' OR `id_baumer_items`='36324' OR `id_baumer_items`='38911' OR `id_baumer_items`='38912' ) AND `del`='0'	0.0007	0.6342	1.38 mb
SQL (std)\| SELECT id, `idl_manufacturer`, `idl_type`, `idl_principle`, `idl_base`, `idl_color`, `idl_surface`, `idl_surface_type`, `idl_surface_structure`, `idl_volume`, `idl_marking_type`, `idl_marking_method`, `idl_power_supply`, `idl_marking_size`, `idl_availability`, `idl_b_product_group2`, `idl_b_model_select`, `idl_b_class`, `idl_b_emitter_reciever`, `idl_b_scanning_range`, `idl_b_sensing_distance_max`, `idl_b_features_interface`, `idl_b_type`, `idl_b_dimensions`, `idl_b_housing_version`, `idl_b_size_flange`, `idl_b_steps_turn`, `idl_b_turns_number`, `idl_b_light_source`, `idl_b_output_interface`, `idl_b_output_circuit_interface`, `idl_b_operating_temperature`, `idl_b_resolution`, `idl_b_particularchar`, `idl_b_shaft_solid`, `idl_b_shaft_hollow`, `idl_b_pulses_waves`, `idl_b_output_stages`, `idl_b_connection`, `idl_b_connection_types`, `idl_b_protection_din`, `idl_b_approvals`, `idl_b_data_interface`, `idl_b_resolution1`, `idl_b_frame_rate`, `idl_b_protection_class`, `idl_b_color_models`, `idl_b_sensor`, `idl_b_pixel_size`, `idl_b_sensor_type`, `idl_b_shutter_type`, `idl_b_application_field`, `idl_b_cable_length`, `idl_b_nominal_force`, `idl_b_options`,id_categories,id_baumer_items,abra_quantity, abra_updated, abra_codes,abra_price_czk_nvat, abra_price_eur_nvat,unavailable, last_updated,img_main, code, name_cz, name_menu_cz, auto_text_short_cz, text_short_cz FROM mod_ajpcat_items WHERE published_cz='1' AND del='0' AND (`unavailable`='0' OR `abra_quantity`>0) AND ( id='4826' OR id='4827' OR id='4828' OR id='4829' OR id='4962' OR id='5150' OR id='5151' ) ORDER BY priority DESC, name_cz ASC	0.0011	0.6353	1.41 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_categories` WHERE `id`='268' LIMIT 1	0.0005	0.6358	1.43 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='9723b8094453ae5e02f3d802a86af32f' LIMIT 1	0.0007	0.6365	1.47 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='117d2e3b0a40ea54c81d0215a63dfe67' LIMIT 1	0.0006	0.6371	1.49 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='59947228a93bd8145eae58ab3f293592' LIMIT 1	0.0006	0.6377	1.51 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='0c4ea56c194ed6e9c54405f93a95ca1b' LIMIT 1	0.0005	0.6382	1.53 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='38a639b3dc56ca896ba243e139a4c383' LIMIT 1	0.0006	0.6388	1.56 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='8b1c439fd7c3a256e9ebd86f0856b50e' LIMIT 1	0.0006	0.6394	1.58 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='e81d9bff71158993b755f2d82be83f2d' LIMIT 1	0.0005	0.6399	1.60 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='51' AND name_en='Lens accessories'	0.0005	0.6404	1.56 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='8f121ce07d74717e0b1f21d122e04521' LIMIT 1	0.0006	0.6410	1.58 mb
SQL (std)\| SELECT `id`,`id_categories` FROM `mod_ajpcat_items` WHERE ( `id_baumer_items`='38880' OR `id_baumer_items`='38878' OR `id_baumer_items`='38881' OR `id_baumer_items`='38882' OR `id_baumer_items`='38879' OR `id_baumer_items`='38698' OR `id_baumer_items`='38699' OR `id_baumer_items`='38700' OR `id_baumer_items`='38696' OR `id_baumer_items`='38697' OR `id_baumer_items`='38504' OR `id_baumer_items`='38505' OR `id_baumer_items`='38506' OR `id_baumer_items`='38502' OR `id_baumer_items`='38503' ) AND `del`='0'	0.0009	0.6419	1.57 mb
SQL (std)\| SELECT id, `idl_manufacturer`, `idl_type`, `idl_principle`, `idl_base`, `idl_color`, `idl_surface`, `idl_surface_type`, `idl_surface_structure`, `idl_volume`, `idl_marking_type`, `idl_marking_method`, `idl_power_supply`, `idl_marking_size`, `idl_availability`, `idl_b_product_group2`, `idl_b_model_select`, `idl_b_class`, `idl_b_emitter_reciever`, `idl_b_scanning_range`, `idl_b_sensing_distance_max`, `idl_b_features_interface`, `idl_b_type`, `idl_b_dimensions`, `idl_b_housing_version`, `idl_b_size_flange`, `idl_b_steps_turn`, `idl_b_turns_number`, `idl_b_light_source`, `idl_b_output_interface`, `idl_b_output_circuit_interface`, `idl_b_operating_temperature`, `idl_b_resolution`, `idl_b_particularchar`, `idl_b_shaft_solid`, `idl_b_shaft_hollow`, `idl_b_pulses_waves`, `idl_b_output_stages`, `idl_b_connection`, `idl_b_connection_types`, `idl_b_protection_din`, `idl_b_approvals`, `idl_b_data_interface`, `idl_b_resolution1`, `idl_b_frame_rate`, `idl_b_protection_class`, `idl_b_color_models`, `idl_b_sensor`, `idl_b_pixel_size`, `idl_b_sensor_type`, `idl_b_shutter_type`, `idl_b_application_field`, `idl_b_cable_length`, `idl_b_nominal_force`, `idl_b_options`,id_categories,id_baumer_items,abra_quantity, abra_updated, abra_codes,abra_price_czk_nvat, abra_price_eur_nvat,unavailable, last_updated,img_main, code, name_cz, name_menu_cz, auto_text_short_cz, text_short_cz FROM mod_ajpcat_items WHERE published_cz='1' AND del='0' AND (`unavailable`='0' OR `abra_quantity`>0) AND ( id='5467' OR id='5553' OR id='5004' OR id='5005' OR id='5006' OR id='5468' OR id='5554' OR id='5040' OR id='5041' OR id='5042' OR id='5081' OR id='5082' OR id='5083' OR id='5084' OR id='5085' ) ORDER BY priority DESC, name_cz ASC	0.0013	0.6432	1.62 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='2f6d9c2cc66681fe5e112db2e9950f9d' LIMIT 1	0.0006	0.6438	1.65 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='a4b4e3c3145d9972f8f20e0ed45b40b6' LIMIT 1	0.0006	0.6444	1.67 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='ed3fdbde5c5d0e5e16fc427c6fd47521' LIMIT 1	0.0005	0.6449	1.70 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='f62673fd4fc6a5b3002cdf2037eccc42' LIMIT 1	0.0007	0.6456	1.72 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='7f750930ec98ffd4fd87f19915b56ec3' LIMIT 1	0.0005	0.6461	1.75 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='3d8557fdf31edf1f761425a9e4ba6a92' LIMIT 1	0.0006	0.6467	1.77 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='af72b58e14d3b1b976ceb388481ad176' LIMIT 1	0.0006	0.6473	1.79 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='d54cf38770ee39b6c15a1841f9c17a2a' LIMIT 1	0.0005	0.6478	1.82 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='d3ca981e9644eeda122208eb2ba60abb' LIMIT 1	0.0006	0.6484	1.84 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='a2053f4415685d78cd649df1a3aa19ea' LIMIT 1	0.0005	0.6489	1.86 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='4fa6478504cf5dbdda3024a2ec7bf988' LIMIT 1	0.0006	0.6495	1.88 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='c7a1465303a18fc17c2eafbc79996c16' LIMIT 1	0.0006	0.6501	1.91 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='a973b3844056fe045ebf8b53471d2d35' LIMIT 1	0.0005	0.6506	1.93 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='1763e6ef51e9487b5a7a13ebfc794d8a' LIMIT 1	0.0006	0.6512	1.95 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='86b03cc239571c2a3b4de3a58078cad4' LIMIT 1	0.0006	0.6518	1.97 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='51' AND name_en='Lens'	0.0005	0.6523	1.92 mb
SQL (std)\| SELECT `id`,`id_categories` FROM `mod_ajpcat_items` WHERE ( `id_baumer_items`='24251' OR `id_baumer_items`='24250' OR `id_baumer_items`='24249' OR `id_baumer_items`='24245' OR `id_baumer_items`='24244' OR `id_baumer_items`='24243' OR `id_baumer_items`='24247' OR `id_baumer_items`='24248' OR `id_baumer_items`='24246' ) AND `del`='0'	0.0007	0.6530	1.92 mb
SQL (std)\| SELECT id, `idl_manufacturer`, `idl_type`, `idl_principle`, `idl_base`, `idl_color`, `idl_surface`, `idl_surface_type`, `idl_surface_structure`, `idl_volume`, `idl_marking_type`, `idl_marking_method`, `idl_power_supply`, `idl_marking_size`, `idl_availability`, `idl_b_product_group2`, `idl_b_model_select`, `idl_b_class`, `idl_b_emitter_reciever`, `idl_b_scanning_range`, `idl_b_sensing_distance_max`, `idl_b_features_interface`, `idl_b_type`, `idl_b_dimensions`, `idl_b_housing_version`, `idl_b_size_flange`, `idl_b_steps_turn`, `idl_b_turns_number`, `idl_b_light_source`, `idl_b_output_interface`, `idl_b_output_circuit_interface`, `idl_b_operating_temperature`, `idl_b_resolution`, `idl_b_particularchar`, `idl_b_shaft_solid`, `idl_b_shaft_hollow`, `idl_b_pulses_waves`, `idl_b_output_stages`, `idl_b_connection`, `idl_b_connection_types`, `idl_b_protection_din`, `idl_b_approvals`, `idl_b_data_interface`, `idl_b_resolution1`, `idl_b_frame_rate`, `idl_b_protection_class`, `idl_b_color_models`, `idl_b_sensor`, `idl_b_pixel_size`, `idl_b_sensor_type`, `idl_b_shutter_type`, `idl_b_application_field`, `idl_b_cable_length`, `idl_b_nominal_force`, `idl_b_options`,id_categories,id_baumer_items,abra_quantity, abra_updated, abra_codes,abra_price_czk_nvat, abra_price_eur_nvat,unavailable, last_updated,img_main, code, name_cz, name_menu_cz, auto_text_short_cz, text_short_cz FROM mod_ajpcat_items WHERE published_cz='1' AND del='0' AND (`unavailable`='0' OR `abra_quantity`>0) AND ( id='326' ) ORDER BY priority DESC, name_cz ASC	0.0008	0.6538	1.94 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_categories` WHERE `id`='272' LIMIT 1	0.0006	0.6544	1.96 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='774a734dd0d85b38a64fa15a53fbe663' LIMIT 1	0.0006	0.6550	1.99 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='51' AND name_en='Network components'	0.0006	0.6556	1.95 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='7a614fd06c325499f1680b9896beedeb' LIMIT 1	0.0007	0.6563	1.96 mb
SQL (std)\| SELECT `id`,`id_categories` FROM `mod_ajpcat_items` WHERE ( `id_baumer_items`='24192' OR `id_baumer_items`='24193' OR `id_baumer_items`='24150' OR `id_baumer_items`='24152' OR `id_baumer_items`='24154' OR `id_baumer_items`='24155' OR `id_baumer_items`='24227' OR `id_baumer_items`='24151' OR `id_baumer_items`='24153' OR `id_baumer_items`='24156' OR `id_baumer_items`='24231' ) AND `del`='0'	0.0008	0.6571	1.95 mb
SQL (std)\| SELECT id, `idl_manufacturer`, `idl_type`, `idl_principle`, `idl_base`, `idl_color`, `idl_surface`, `idl_surface_type`, `idl_surface_structure`, `idl_volume`, `idl_marking_type`, `idl_marking_method`, `idl_power_supply`, `idl_marking_size`, `idl_availability`, `idl_b_product_group2`, `idl_b_model_select`, `idl_b_class`, `idl_b_emitter_reciever`, `idl_b_scanning_range`, `idl_b_sensing_distance_max`, `idl_b_features_interface`, `idl_b_type`, `idl_b_dimensions`, `idl_b_housing_version`, `idl_b_size_flange`, `idl_b_steps_turn`, `idl_b_turns_number`, `idl_b_light_source`, `idl_b_output_interface`, `idl_b_output_circuit_interface`, `idl_b_operating_temperature`, `idl_b_resolution`, `idl_b_particularchar`, `idl_b_shaft_solid`, `idl_b_shaft_hollow`, `idl_b_pulses_waves`, `idl_b_output_stages`, `idl_b_connection`, `idl_b_connection_types`, `idl_b_protection_din`, `idl_b_approvals`, `idl_b_data_interface`, `idl_b_resolution1`, `idl_b_frame_rate`, `idl_b_protection_class`, `idl_b_color_models`, `idl_b_sensor`, `idl_b_pixel_size`, `idl_b_sensor_type`, `idl_b_shutter_type`, `idl_b_application_field`, `idl_b_cable_length`, `idl_b_nominal_force`, `idl_b_options`,id_categories,id_baumer_items,abra_quantity, abra_updated, abra_codes,abra_price_czk_nvat, abra_price_eur_nvat,unavailable, last_updated,img_main, code, name_cz, name_menu_cz, auto_text_short_cz, text_short_cz FROM mod_ajpcat_items WHERE published_cz='1' AND del='0' AND (`unavailable`='0' OR `abra_quantity`>0) AND ( id='250' OR id='251' OR id='252' OR id='253' OR id='254' OR id='255' OR id='256' OR id='289' OR id='290' OR id='314' OR id='318' ) ORDER BY priority DESC, name_cz ASC	0.0012	0.6583	2.00 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_categories` WHERE `id`='270' LIMIT 1	0.0008	0.6591	2.02 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='3f1743c4e1d467721b7e4b64e9093344' LIMIT 1	0.0006	0.6597	2.05 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='a0ee00d999ee3f78a4a5a2b17926d7fd' LIMIT 1	0.0006	0.6603	2.07 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='3823611d104faabfc5e46eb562007271' LIMIT 1	0.0006	0.6609	2.09 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='f339ecd0a40841c7e3b39b9dd0053eec' LIMIT 1	0.0007	0.6616	2.12 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='8a9c9047c2a17a446230c248632a6a84' LIMIT 1	0.0006	0.6622	2.14 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='a8a55146d616096d595d5971870a1025' LIMIT 1	0.0006	0.6628	2.17 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='a3378d98ba999219f5720136bdf269f3' LIMIT 1	0.0005	0.6633	2.19 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='d5d5b8cd71a155c8ad4da2f951f46cac' LIMIT 1	0.0006	0.6639	2.22 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='cc3a6a2466d9d03c8605e7c0538cdfc8' LIMIT 1	0.0006	0.6645	2.24 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='8a8a7e34b1189c247a3d681e3c2170e3' LIMIT 1	0.0006	0.6651	2.26 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='9ece75066cb935e16b5131b3204c2f46' LIMIT 1	0.0006	0.6657	2.28 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='51' AND name_en='Cable'	0.0006	0.6663	2.24 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='39059724f73a9969845dfe4146c5660e' LIMIT 1	0.0005	0.6668	2.24 mb
SQL (std)\| SELECT `id`,`id_categories` FROM `mod_ajpcat_items` WHERE ( `id_baumer_items`='24144' OR `id_baumer_items`='24145' OR `id_baumer_items`='24141' OR `id_baumer_items`='36851' OR `id_baumer_items`='36850' OR `id_baumer_items`='24142' ) AND `del`='0'	0.0007	0.6675	2.23 mb
SQL (std)\| SELECT id, `idl_manufacturer`, `idl_type`, `idl_principle`, `idl_base`, `idl_color`, `idl_surface`, `idl_surface_type`, `idl_surface_structure`, `idl_volume`, `idl_marking_type`, `idl_marking_method`, `idl_power_supply`, `idl_marking_size`, `idl_availability`, `idl_b_product_group2`, `idl_b_model_select`, `idl_b_class`, `idl_b_emitter_reciever`, `idl_b_scanning_range`, `idl_b_sensing_distance_max`, `idl_b_features_interface`, `idl_b_type`, `idl_b_dimensions`, `idl_b_housing_version`, `idl_b_size_flange`, `idl_b_steps_turn`, `idl_b_turns_number`, `idl_b_light_source`, `idl_b_output_interface`, `idl_b_output_circuit_interface`, `idl_b_operating_temperature`, `idl_b_resolution`, `idl_b_particularchar`, `idl_b_shaft_solid`, `idl_b_shaft_hollow`, `idl_b_pulses_waves`, `idl_b_output_stages`, `idl_b_connection`, `idl_b_connection_types`, `idl_b_protection_din`, `idl_b_approvals`, `idl_b_data_interface`, `idl_b_resolution1`, `idl_b_frame_rate`, `idl_b_protection_class`, `idl_b_color_models`, `idl_b_sensor`, `idl_b_pixel_size`, `idl_b_sensor_type`, `idl_b_shutter_type`, `idl_b_application_field`, `idl_b_cable_length`, `idl_b_nominal_force`, `idl_b_options`,id_categories,id_baumer_items,abra_quantity, abra_updated, abra_codes,abra_price_czk_nvat, abra_price_eur_nvat,unavailable, last_updated,img_main, code, name_cz, name_menu_cz, auto_text_short_cz, text_short_cz FROM mod_ajpcat_items WHERE published_cz='1' AND del='0' AND (`unavailable`='0' OR `abra_quantity`>0) AND ( id='245' OR id='246' OR id='4823' OR id='4824' OR id='3728' OR id='3729' ) ORDER BY priority DESC, name_cz ASC	0.0011	0.6686	2.26 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_categories` WHERE `id`='267' LIMIT 1	0.0007	0.6693	2.28 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='147f6d1d16cd74a43dbfd92941e2d88c' LIMIT 1	0.0006	0.6699	2.32 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='5c356b57a5df48ce8228465bd04ff75b' LIMIT 1	0.0006	0.6705	2.34 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='30b4c882a1511d87aaf170dccc2c7f6a' LIMIT 1	0.0007	0.6712	2.36 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='b6bca058aaae04dec98a9b36d606a9fb' LIMIT 1	0.0005	0.6717	2.38 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='ff391cbe7ac55d9990d64572d3eeadba' LIMIT 1	0.0007	0.6724	2.40 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='71c06042ca35f04bddb023c3e7b10aa7' LIMIT 1	0.0006	0.6730	2.42 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='51' AND name_en='Mountings and heat sinks'	0.0006	0.6736	2.39 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='eda80a3d5b344bc40f3bc04f65b7a357' LIMIT 1	0.0005	0.6741	2.39 mb
SQL (std)\| SELECT id, `idl_manufacturer`, `idl_type`, `idl_principle`, `idl_base`, `idl_color`, `idl_surface`, `idl_surface_type`, `idl_surface_structure`, `idl_volume`, `idl_marking_type`, `idl_marking_method`, `idl_power_supply`, `idl_marking_size`, `idl_availability`, `idl_b_product_group2`, `idl_b_model_select`, `idl_b_class`, `idl_b_emitter_reciever`, `idl_b_scanning_range`, `idl_b_sensing_distance_max`, `idl_b_features_interface`, `idl_b_type`, `idl_b_dimensions`, `idl_b_housing_version`, `idl_b_size_flange`, `idl_b_steps_turn`, `idl_b_turns_number`, `idl_b_light_source`, `idl_b_output_interface`, `idl_b_output_circuit_interface`, `idl_b_operating_temperature`, `idl_b_resolution`, `idl_b_particularchar`, `idl_b_shaft_solid`, `idl_b_shaft_hollow`, `idl_b_pulses_waves`, `idl_b_output_stages`, `idl_b_connection`, `idl_b_connection_types`, `idl_b_protection_din`, `idl_b_approvals`, `idl_b_data_interface`, `idl_b_resolution1`, `idl_b_frame_rate`, `idl_b_protection_class`, `idl_b_color_models`, `idl_b_sensor`, `idl_b_pixel_size`, `idl_b_sensor_type`, `idl_b_shutter_type`, `idl_b_application_field`, `idl_b_cable_length`, `idl_b_nominal_force`, `idl_b_options`,id_categories,id_baumer_items,abra_quantity, abra_updated, abra_codes,abra_price_czk_nvat, abra_price_eur_nvat,unavailable, last_updated,img_main, code, name_cz, name_menu_cz, auto_text_short_cz, text_short_cz FROM mod_ajpcat_items WHERE published_cz='1' AND del='0' AND (`unavailable`='0' OR `abra_quantity`>0) AND ( id_categories='226' ) OR id='62' ORDER BY priority DESC, name_cz ASC LIMIT 0,50	0.0042	0.6783	2.48 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='dcfc2330ea3a5dbdcb469b73991d91b1' LIMIT 1	0.0007	0.6790	2.52 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_frame_rate` WHERE `id`='6' LIMIT 1	0.0006	0.6796	2.53 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='636ab12af8c45dfbe6efacb1015ad3fe' LIMIT 1	0.0006	0.6802	2.55 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_color_models` WHERE `id`='2' LIMIT 1	0.0005	0.6807	2.55 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='bdcc8763c090a699a47732e8f0ac80d1' LIMIT 1	0.0007	0.6814	2.57 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor` WHERE `id`='17' LIMIT 1	0.0005	0.6819	2.57 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor_type` WHERE `id`='10' LIMIT 1	0.0005	0.6824	2.57 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_frame_rate` WHERE `id`='3' LIMIT 1	0.0005	0.6829	2.57 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='6002dc62e4cde588a80700b9831b73f0' LIMIT 1	0.0006	0.6835	2.59 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='c660b368559869ba0adbda6415027340' LIMIT 1	0.0007	0.6842	2.61 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor` WHERE `id`='18' LIMIT 1	0.0005	0.6847	2.61 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor_type` WHERE `id`='5' LIMIT 1	0.0005	0.6852	2.61 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_frame_rate` WHERE `id`='11' LIMIT 1	0.0005	0.6857	2.61 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_resolution1` WHERE `id`='3' LIMIT 1	0.0005	0.6862	2.62 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='a4d558c9dd455b19156dbe69eb4b2fb3' LIMIT 1	0.0007	0.6869	2.64 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='2961a040c943df2e94feb61f4f1716b6' LIMIT 1	0.0006	0.6875	2.66 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor` WHERE `id`='88' LIMIT 1	0.0005	0.6880	2.66 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor_type` WHERE `id`='11' LIMIT 1	0.0005	0.6885	2.66 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_resolution1` WHERE `id`='6' LIMIT 1	0.0004	0.6889	2.66 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='d9bf192a87153116410aa5b0dc933cd2' LIMIT 1	0.0006	0.6895	2.68 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='32607c1ed3aa9edaf9a460544aed8fcb' LIMIT 1	0.0006	0.6901	2.71 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor` WHERE `id`='20' LIMIT 1	0.0007	0.6908	2.71 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor_type` WHERE `id`='7' LIMIT 1	0.0004	0.6912	2.71 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_frame_rate` WHERE `id`='5' LIMIT 1	0.0005	0.6917	2.71 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_resolution1` WHERE `id`='4' LIMIT 1	0.0005	0.6922	2.71 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='571de50c5b5875b6c3afb97a295ba010' LIMIT 1	0.0006	0.6928	2.74 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='9e36d47520e96625d1bc4196b39757f9' LIMIT 1	0.0006	0.6934	2.76 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor` WHERE `id`='41' LIMIT 1	0.0005	0.6939	2.76 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='0bfa51a87056dc02c855a425590abf6c' LIMIT 1	0.0005	0.6944	2.78 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='da1e527ce8e292a79013c91e598fea59' LIMIT 1	0.0008	0.6952	2.81 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='7b23d8d3ad7b462b89024d8418f89e5c' LIMIT 1	0.0006	0.6958	2.84 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='e50edd669cc967e98375e318f9688477' LIMIT 1	0.0006	0.6964	2.86 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='13b7990aac6fd225ebaa1628f452b111' LIMIT 1	0.0006	0.6970	2.88 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='c8a6a02d24bbe92ab17ff95953c70d99' LIMIT 1	0.0006	0.6976	2.90 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='0e94ef950318580cdf74030559769120' LIMIT 1	0.0006	0.6982	2.92 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='0a906250abba23207253d0ef803310a8' LIMIT 1	0.0005	0.6987	2.96 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_color_models` WHERE `id`='5' LIMIT 1	0.0005	0.6992	2.96 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='57d168e9f540b2b0b7f7ba56cca97600' LIMIT 1	0.0006	0.6998	2.98 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_frame_rate` WHERE `id`='8' LIMIT 1	0.0005	0.7003	3.00 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='3e77c30d664a391b5f45a79ad697ffaf' LIMIT 1	0.0006	0.7009	3.02 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='39f2e5076d2be6b8bc0ba708f90ef32d' LIMIT 1	0.0006	0.7015	3.04 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='51f3b00fdb38fd49df4006fc103ddb52' LIMIT 1	0.0007	0.7022	3.06 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='e476dc6e9b24bb970c961ce613e9a28c' LIMIT 1	0.0005	0.7027	3.08 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='9674d58d21926bcc163db2f4544c58c1' LIMIT 1	0.0006	0.7033	3.11 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='d1ab99a10b6eef59b23e380a28d7fb4d' LIMIT 1	0.0006	0.7039	3.13 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='8428baa0edfe18e57a424dbcea848eee' LIMIT 1	0.0006	0.7045	3.15 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='2208233bbd80173a6899ca76d9f709f9' LIMIT 1	0.0006	0.7051	3.17 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='76c400d411dff0d841d80029c1d7ed51' LIMIT 1	0.0006	0.7057	3.19 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor` WHERE `id`='21' LIMIT 1	0.0005	0.7062	3.19 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor_type` WHERE `id`='12' LIMIT 1	0.0004	0.7066	3.19 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_frame_rate` WHERE `id`='2' LIMIT 1	0.0005	0.7071	3.19 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='ffa0b7dc43f565c14080c777d91d880d' LIMIT 1	0.0005	0.7076	3.21 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='569490000a3c2980980853f12799a434' LIMIT 1	0.0006	0.7082	3.23 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor` WHERE `id`='74' LIMIT 1	0.0005	0.7087	3.23 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor_type` WHERE `id`='24' LIMIT 1	0.0005	0.7092	3.23 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_color_models` WHERE `id`='8' LIMIT 1	0.0005	0.7097	3.23 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_frame_rate` WHERE `id`='1' LIMIT 1	0.0004	0.7101	3.23 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_resolution1` WHERE `id`='1' LIMIT 1	0.0005	0.7106	3.24 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='d793bc0fbb50a9a7b8d40a68d579f5e7' LIMIT 1	0.0006	0.7112	3.26 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor` WHERE `id`='75' LIMIT 1	0.0005	0.7117	3.26 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor_type` WHERE `id`='2' LIMIT 1	0.0005	0.7122	3.26 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='0d61be7dce048190d07b3209cdd5eab8' LIMIT 1	0.0006	0.7128	3.28 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor` WHERE `id`='78' LIMIT 1	0.0005	0.7133	3.28 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor_type` WHERE `id`='29' LIMIT 1	0.0005	0.7138	3.28 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_frame_rate` WHERE `id`='9' LIMIT 1	0.0005	0.7143	3.29 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='2b408de5a75ef1be9754b6a72e5176e3' LIMIT 1	0.0005	0.7148	3.31 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='641e67f3944c24a64e9d7a6d7f895d88' LIMIT 1	0.0006	0.7154	3.33 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor` WHERE `id`='77' LIMIT 1	0.0005	0.7159	3.33 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_frame_rate` WHERE `id`='7' LIMIT 1	0.0005	0.7164	3.33 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='1749d87884c0d887b6e2c6bcdacd0f20' LIMIT 1	0.0006	0.7170	3.35 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='648d500fb028e2643bce8ee2de6888d4' LIMIT 1	0.0006	0.7176	3.37 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor` WHERE `id`='64' LIMIT 1	0.0005	0.7181	3.37 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor_type` WHERE `id`='6' LIMIT 1	0.0006	0.7187	3.37 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_frame_rate` WHERE `id`='4' LIMIT 1	0.0006	0.7193	3.38 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='0f94aa2fd032754a9bb09ea27ffa77ef' LIMIT 1	0.0006	0.7199	3.40 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor` WHERE `id`='56' LIMIT 1	0.0006	0.7205	3.40 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor_type` WHERE `id`='26' LIMIT 1	0.0005	0.7210	3.40 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_resolution1` WHERE `id`='7' LIMIT 1	0.0005	0.7215	3.40 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='2d630e209fad3828be7890ee8715b01e' LIMIT 1	0.0007	0.7222	3.42 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='7811a904210a47394edf7685d9ccc47d' LIMIT 1	0.0008	0.7230	3.44 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor` WHERE `id`='73' LIMIT 1	0.0006	0.7236	3.44 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_resolution1` WHERE `id`='5' LIMIT 1	0.0005	0.7241	3.44 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='9525b55b96a8259deb426dc4630e2481' LIMIT 1	0.0006	0.7247	3.46 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='dcee8eb4c26917945c250a5cd5898b02' LIMIT 1	0.0006	0.7253	3.48 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor` WHERE `id`='70' LIMIT 1	0.0005	0.7258	3.48 mb
CACHE FILE \| SET \| mod_ajpcat_show_item (;ID_ITEMS\|62;62\|;ID_CATEGORIES\|226;226\|;LANG\|cz;cz\|;\|;\|;\|;\|;\|;\|;\|;\|;\|;\|;\|USEC-LOGGED;\|) ()	0.0576	0.7834	5.26 mb
CACHE FILE \| GET \| mod_cform_web_show ()	0.0003	0.7837	2.56 mb
CACHE FILE \| READ \| mod_cform_web_show \| Unserialized	0.0011	0.7848	2.61 mb
TIMING \| Text - End generate	0.0006	0.7854	2.59 mb
CACHE FILE \| GET \| mod_ajpcat_show_footer_logos (all)	0.0013	0.7867	2.50 mb
CACHE FILE \| READ \| mod_ajpcat_show_footer_logos \| Unserialized	0.0010	0.7877	2.52 mb
TIMING \| Submenu menu (ID_PARENT: 2) - Start generate	0.0000	0.7877	2.51 mb
CACHE FILE \| GET \| sys_menu (ID_PARENT;2\|IDSW_LANGUAGES;1\|SET_MENU_ID;submenu\|SET_MENU_CLASS;submenu\|SCHEMA_PARENTNAME;2\|LEVEL;0\|)	0.0001	0.7878	2.51 mb
CACHE FILE \| READ \| sys_menu \| Unserialized	0.0010	0.7888	2.53 mb
TIMING \| Submenu menu (ID_PARENT: 2) - End generate	0.0001	0.7889	2.51 mb
TIMING \| Submenu menu (ID_PARENT: 3) - Start generate	0.0000	0.7889	2.51 mb
CACHE FILE \| GET \| sys_menu (ID_PARENT;3\|IDSW_LANGUAGES;1\|SET_MENU_ID;submenu\|SET_MENU_CLASS;submenu\|SCHEMA_PARENTNAME;3\|LEVEL;0\|)	0.0000	0.7889	2.52 mb
CACHE FILE \| READ \| sys_menu \| Unserialized	0.0010	0.7899	2.52 mb
TIMING \| Submenu menu (ID_PARENT: 3) - End generate	0.0000	0.7899	2.51 mb
TIMING \| Submenu menu (ID_PARENT: 7) - Start generate	0.0000	0.7899	2.51 mb
CACHE FILE \| GET \| sys_menu (ID_PARENT;7\|IDSW_LANGUAGES;1\|SET_MENU_ID;submenu\|SET_MENU_CLASS;submenu\|SCHEMA_PARENTNAME;7\|LEVEL;0\|)	0.0000	0.7899	2.52 mb
CACHE FILE \| READ \| sys_menu \| Unserialized	0.0011	0.7910	2.54 mb
TIMING \| Submenu menu (ID_PARENT: 7) - End generate	0.0001	0.7911	2.53 mb
CACHE FILE \| GET \| mod_cform_web_show ()	0.0000	0.7911	2.53 mb
CACHE FILE \| READ \| mod_cform_web_show \| Unserialized	0.0010	0.7921	2.53 mb
SQL (std)\| SELECT * FROM `mod_cform` WHERE `id`='1' LIMIT 1	0.0007	0.7928	2.54 mb
TIMING \| Footer menu - Start generate	0.0001	0.7929	2.53 mb
CACHE FILE \| GET \| sys_menu (FOOTER_MENU;1-footer_menu\|)	0.0000	0.7929	2.53 mb
CACHE FILE \| READ \| sys_menu \| Unserialized	0.0009	0.7938	2.54 mb
CACHE FILE \| GET \| mod_cform_web_show ()	0.0000	0.7938	2.53 mb
CACHE FILE \| READ \| mod_cform_web_show \| Unserialized	0.0010	0.7948	2.57 mb
FLUSH \| size:	0.0008	0.7956	2.56 mb
SQL (std)\| Disconnected link	0.0015	0.7971	2.54 mb

LXG-120C

Poradím vám

Parametry

Informace o snímači

Kvalita dat (EMVA 1288)

Formáty obrazu

Předzpracování obrazu

Funkce kamery

Rozhraní a připojení

Mechanické parametry

Elektrické parametry

Nevolatilní paměť

Podmínky prostředí

Prohlášení o shodě

Nákresy

Rozměrový výkres

Ke stažení

Datový list

Rychlý start

Manuál

Certifikáty/ osvědčení

Další informace

CAD

Software

Příslušenství

Napájení

Starter Kit

PCIe/Adapter

Příslušenství k objektivu

Objektiv

Síťové prvky

Kabel

Držáky a chladiče

Podpora

Zájem či dotaz na produkt

Podobné produkty

Napište nám
