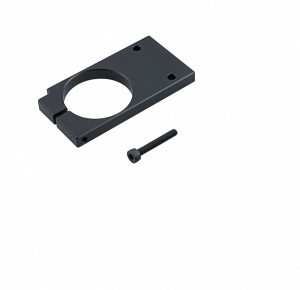

Mounting Adapter Type D (Front)

mounting adapter for VCXU, VCXG and VCXG.I cameras incl. screw (hexagon socket)
stable front side mounting

Objednací číslo: 11165176
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jakub Sedlmajer

Produktový specialista pro průmyslové čtečky a kamerové systémy
BAUMER | IOSS

+420 739 087 013

jakub.sedlmajer@ajptech.cz

Parametry

Nákresy

Ke stažení

Podpora

Podobné produkty

Parametry

Mechanické parametry

Rozměry:	61 mm × 36 mm × 6 mm
Hmotnost:	≤ 21 g
Materiál:	aluminum (shot-peened, anodized)
