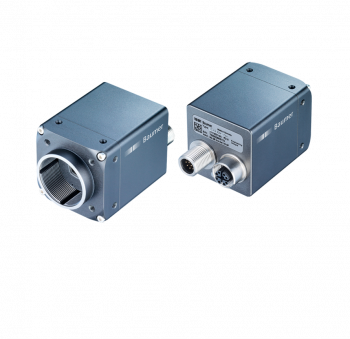

VCXG-53M.I

Name: AJP-tech spol. s.r.o.
Address: Hudcova 533/78c, Medlánky, Brno, 61200, CZ
Telephone: +420 544 525 210
Price range: $$

2592 x 2048 px
onsemi PYTHON5000
1" CMOS
23 fps
Gigabit Ethernet

Objednací číslo: 11186801
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jakub Sedlmajer

Produktový specialista pro průmyslové čtečky a kamerové systémy
BAUMER | IOSS

+420 739 087 013

jakub.sedlmajer@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Informace o snímači

Snímač:	onsemi PYTHON5000
Mono/Color:	Mono
Typ snímače:	1″ CMOS
Typ závěrky:	Global shutter
Rozlišení:	2592 × 2048 px
Rozměry pixelu:	4.8 × 4.8 µm
Expoziční čas:	0.02 - 1000 ms

Kvalita dat (EMVA 1288)

Temný šum:	11.84 e-
Saturační kapacita:	9050 e-
Dynamický rozsah:	57.1 dB
Poměr signál/šum:	39.6 dB
Kvantová účinnost:	57.5 % @ 536 nm

Formáty obrazu

Formáty obrazu, max. frekvence snímků na komunikačním rozhraní:	Full Frame, 2592 × 2048 px, max. 23 fps Binning 2×2, 1296 × 1024 px, max. 28 fps Binning 2×1, 1296 × 2048 px, max. 28 fps Binning 1×2, 2592 × 1024 px, max. 28 fps
Formáty obrazu, maximální frekvence sběru snímků (Burst Mód):	Full Frame, 2592 × 2048 px, max. 28 fps
Formát pixelu:	Mono8 Mono10

Předzpracování obrazu

Analogové ovládací prvky:	Gain (0 - 8 dB) Offset (0 - 63 LSB 10 Bit)
Barevné modely:	Mono

Funkce kamery

Základní funkce:	Exposure Gain Trigger / Exposure Active (Flash) Binning 2x2 Partial Scan Offset Free Running Mode (Live Image)
Automatické funkce:	Exposure Auto Gain Auto
Předzpracování obrazu:	Image Flipping (X/Y) LUT / Gamma
Akvizice / Rozhraní:	Burst Mode Adjustable Framerate Short Exposure Time Enable Device Link Throughput Limit Internal Image Buffer
Synchronizace:	free running trigger
Zdroje spouštěcího signálu (trigger):	Hardware Software ActionCommand
Zpoždění spouštěcího signálu (trigger):	0 - 2 s, tracking and buffering of up to 256 trigger signals
Procesní synchronizace:	Events Timer Trigger Delay Debouncer Counter Sequencer Trigger via Action CMD (GigE) Additional Output Modes (e.g. Trigger Ready) PWM (PWM Duration / PWM Duty Cycle) 4 power outputs with up to 120 W (max. 48 V / 2.5 A) Selectable Output format (e.g. Tri State, Push Pull) Chunk data inside transferred image Encoder support via Counter End trigger source
Další funkce:	User Set Integrated temperature sensor Readable additional information (e.g. sensor information) Save Custom Data
Interní vyrovnávací paměť:	122 MB 8 images (Trigger Mode) 1 image (Free Running Mode)

Rozhraní a připojení

Datové rozhraní:	Gigabit Ethernet, Transfer rate 1000 Mbits/sec, Fast Ethernet, Transfer rate 100 Mbits/sec, Connector: M12 / 8 pol x-coded, screwable TYPE090 (according to GigE Vision Mechanical Supplement)
Rozhraní:	M12 / 12 pins a-coded (SACC-CI-M12MS-12CON-L180)
Napájení:	via M12/12 pins a-coded or Power over Ethernet (PoE)

Mechanické parametry

Závit objektivu:	C-mount
Šířka:	40 mm
Výška:	40 mm
Hloubka:	50.8 mm
Hmotnost:	≤ 137 g
Materiál:	aluminum, hard-anodized

Elektrické parametry

Rozsah napájecího napětí +Vs:	12 - 24 V DC (external power supply) 36 - 57 V DC (Power over Ethernet)
Spotřeba energie:	Approx. 2.9 W @ 12 VDC and 23 fps Approx. 3.6 W @ 48 VDC (PoE) and 23 fps

Nevolatilní paměť

Velikost flash paměti:

128 kB

Podmínky prostředí

Pracovní teplota:	0 - +65 ° @ T = measurement point
Skladovací teplota:	-20 - +70 °C
Vlhkost:	10 - 90 % (non-condensing)
Třída krytí:	IP 54 (with mounted lens and cable) IP 65 (with mounted tube and cable) IP 67 (with mounted tube and cable) IP 69K (with stainless steel housing accessory)

Digitální vstupy|výstupy

Linky:

4 input lines
4 power output lines with pulse width modulation (PWM) (max. 48 V / max. 2,5 A)

Prohlášení o shodě

Prohlášení o shodě:

CE
RoHS
UL recognized
EAC
BIS-CRS (R-41207004)

Nákresy

Rozměrový výkres

11186801.png | stáhnout (png, 2025-07-12 00:39:53)

Schématický diagram

Beleuchtungssystem_VCXG.I_VLXT.I.png | stáhnout (png, 2025-07-12 03:56:11)
Prinzipdarstellung_VCXG.I_LXT.I_1_EN.png | stáhnout (png, 2025-07-12 01:46:21)
Prinzipdarstellung_VCXG.I_LXT.I_2_EN.png | stáhnout (png, 2025-07-12 05:37:15)

Ke stažení

Datový list

Data sheet – VCXG-53M.I | stáhnout | zobrazit (DE, pdf, 2025-04-11 11:46:33)
Data sheet – VCXG-53M.I | stáhnout | zobrazit (EN, pdf, 2025-04-11 11:46:35)
Detailed data sheet – VCXG-53M.I | stáhnout | zobrazit (EN, pdf, 2025-07-17 17:40:27)

Rychlý start

Quick Start Guide VCXG.I | stáhnout | zobrazit (EN, pdf, 2025-04-11 11:39:57)

Manuál

User’s Guide VCXG / VCXG.I / VCXU cameras | stáhnout | zobrazit (EN, pdf, 2025-04-11 11:41:31)

Certifikáty/ osvědčení

EU Declaration of Conformity (CE) | stáhnout | zobrazit (EN/DE/BG/CZ/DK/ES/FI/FR/GR/HU/IT/LT/LV/NL/NO/PL/PT/RO/SK/SI, pdf, 2025-04-24 16:53:15)
UL Certification | stáhnout | zobrazit (EN, pdf, 2025-04-24 16:45:12)

Další informace

EMVA 1288 Summary Sheet | stáhnout | zobrazit (EN, pdf, 2025-04-11 12:01:27)
Compliant list for Baumer industrial cameras (GigE) | stáhnout | zobrazit (EN, pdf, 2025-04-11 11:22:50)

CAD

VCXG-53M.I / STEP | stáhnout (zip, 2025-07-11 19:40:00)
ePlan macro - 11186801 | stáhnout (edz, 2023-09-20 09:51:59)

Software

Baumer IPConfig Tool v2.0.2 (Windows) | stáhnout (EN, zip, 2025-07-11 18:04:40)
