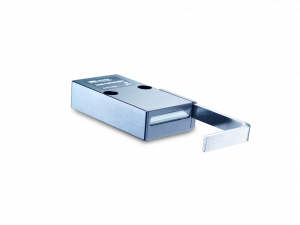

ZADM 034P240.6921 - Edge sensors - front view

ZADM 034P240.6921 - Edge sensors - front view
  • switchable
  • 24 mm
  • < 40 mm
  • pulsed infrared diode
  • PNP
  • Teach-in
  • connector M8 4 pin
  • 55 °C
  • IP 67
Objednací číslo: 10159114
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Základní parametry

Typ: Switchable
Šířka měřicího pole: 24 mm
Měřicí vzdálenost (k objektu): < 40 mm
Nastavení: Teach-in
Indikace napájení: LED green
Nejmenší velikost objektu: 0.5 mm
Rozlišení: < 0.1 mm
Hystereze: 0.4 mm

Zdroj světla

Zdroj světla: Pulsed infrared diode
Vlnová délka: 880 nm

Elektrické parametry

Měřicí frekvence: 4000 Hz
Rozsah napájecího napětí +Vs: 12 - 28 VDC
Maximální spotřeba proudu (bez zátěže): 120 mA
Výstupní obvod: PNP
Výstupní proud: 100 mA
Ochrana proti zkratu: Yes
Ochrana proti přepólování: Yes, Vs to GND
Čas odezvy: < 0.25 ms
Délka výstupního pulsu: 10 ms
Výstupní funkce: Light / dark operate
Pokles napětí Vd: <2.2 VDC

Mechanické parametry

Šířka | průměr: 34 mm
Konstrukce: Rectangular, front view
Materiál pouzdra: Aluminum
Materiál krycího skla: Glass
Způsoby připojení: Connector M8 4 pin

Okolní podmínky

Třída krytí: IP 67
Pracovní teplota: 0 - +55 °C
