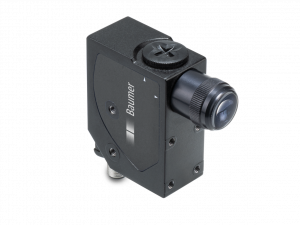

OC60.CU-DLMT.7AF/H012

Name: AJP-tech spol. s.r.o.
Address: Hudcova 533/78c, Medlánky, Brno, 61200, CZ
Telephone: +420 544 525 210
Price range: $$

Reliable detection of fluorescent substances
Adjustable sensitivity
Analog output
20 ms delay activatable
Connector rotatable to 5 positions
Pre-mounted 9 mm lens
Optional lenses for shorter or longer distances

Objednací číslo: 11224610
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák

Technik specialista pro průmyslové snímače
BAUMER

+420 733 533 400

jaroslav.dancak@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Typ:	Luminescence sensor
Snímací vzdálenost:	20 mm - 40 mm
Indikace napájení:	LED green
Výstupní indikátor:	LED yellow
Nastavení citlivosti:	Teach-in
Vzdálenost k zaostření paprsku:	24 mm
Typ paprsku:	Line, vertical
Výška paprsku:	3 mm
Šířka paprsku:	11 mm

Zdroj světla

Zdroj světla:	UV LED
Vlnová délka:	375 nm

Elektrické parametry

Doba odezvy:	< 0.25 ms
Rozsah napájecího napětí +Vs:	15 VDC - 30 VDC
Běžná spotřeba proudu:	50 mA (@ 24 VDC)
Pokles napětí Vd:	<2 VDC
Výstupní funkce:	Light operate
Výstupní obvod:	PNP NPN Analog 0,75 ... 5,5 VDC
Výstupní proud:	100 mA
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes

Mechanické parametry

Šířka \| průměr:	31.9 mm
Výška \| Délka:	60.2 mm
Hloubka:	79 mm
Konstrukce:	Rectangular
Materiál pouzdra:	Aluminum
Materiál krycího skla:	Glass
Způsoby připojení:	Connector M12 5 pin, rotatable

Okolní podmínky

Třída krytí:	IP 67
Pracovní teplota:	-10 - +55 °C
Skladovací teplota:	-20 - +70 °C

Nákresy

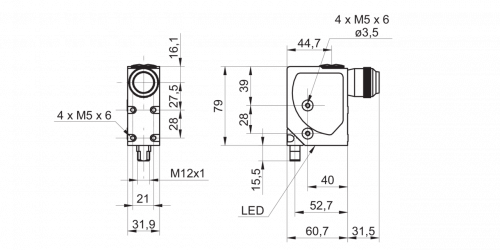

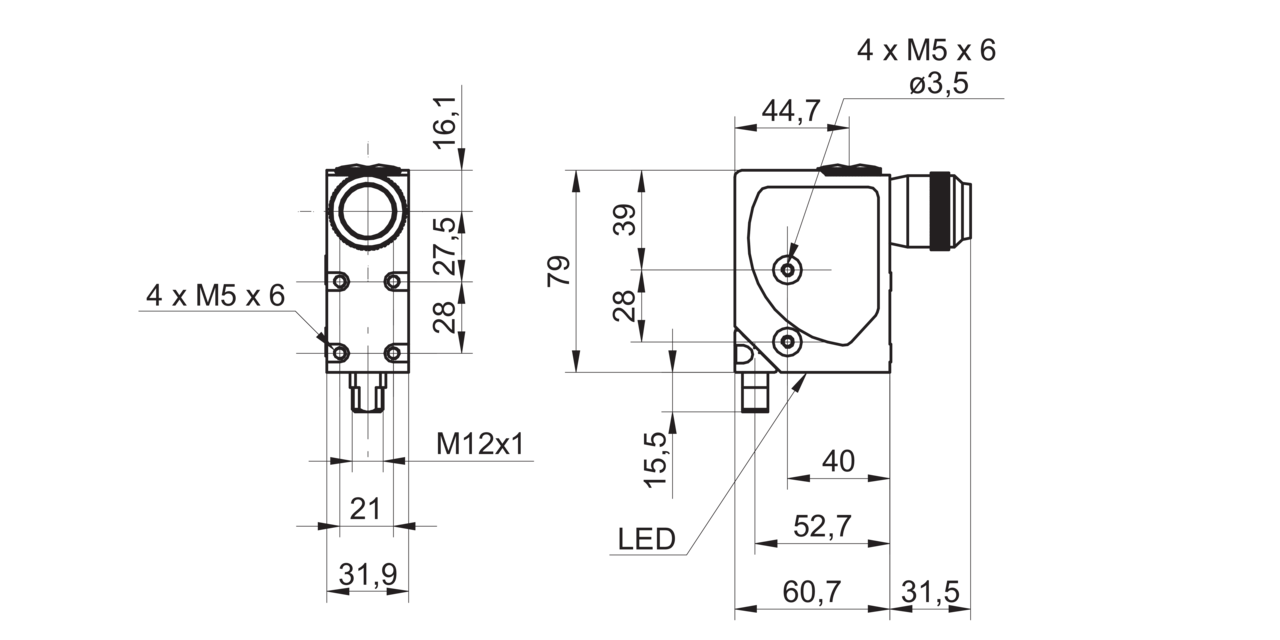

Výkresy

4633-OC60.Cx-xxxT.7AF_H012.png | stáhnout (png, 2025-07-12 04:27:03)

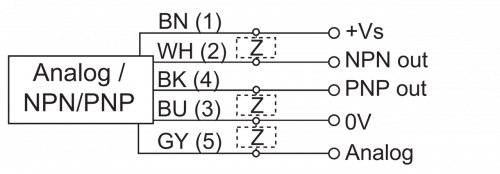

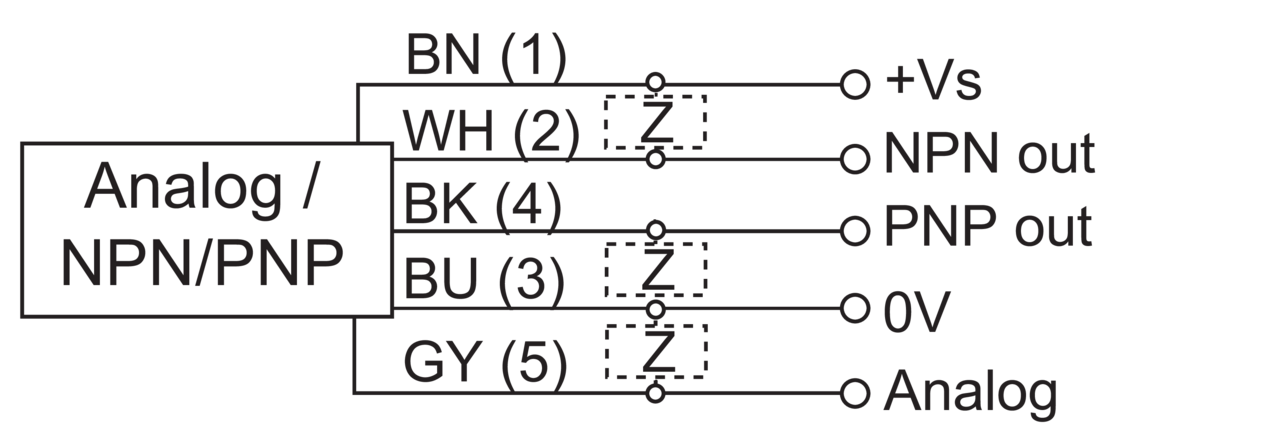

Diagram připojení

Zchn-6460-A-NPN-PNP.png | stáhnout (png, 2025-07-12 04:25:09)

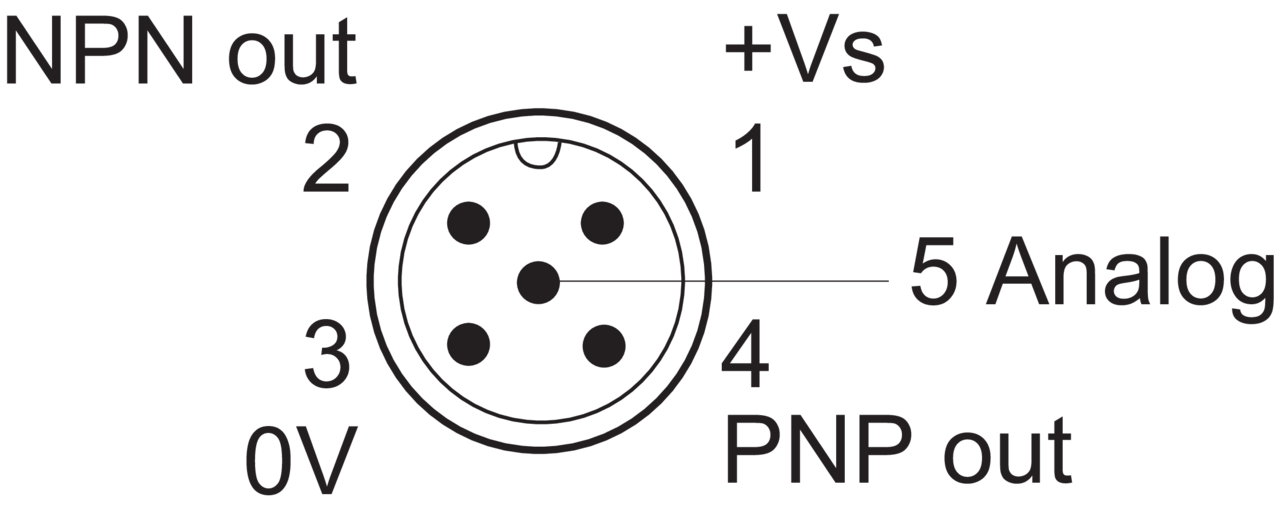

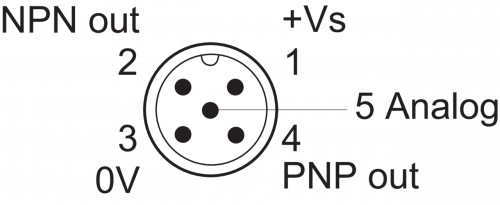

Přiřazení pinů

Zchn-5605-11-B.png | stáhnout (png, 2025-07-12 04:25:54)

Ke stažení

Datový list

Data sheet – OC60.CU-DLMT.7AF/H012 | stáhnout | zobrazit (DE, pdf, 2025-04-11 11:37:31)
Data sheet – OC60.CU-DLMT.7AF/H012 | stáhnout | zobrazit (EN, pdf, 2025-04-11 11:37:31)
Data sheet – OC60.CU-DLMT.7AF/H012 | stáhnout | zobrazit (ZH, pdf, 2025-04-11 11:37:31)

Rychlý start

Quickstart – OC60.CU-DLMT.7AF/H012 | stáhnout | zobrazit (DE/EN/FR, pdf, 2025-04-11 12:09:40)

CAD

OC60.CU-DLMT.7AF/H012 / PARASOLIDS | stáhnout (zip, 2025-04-28 18:03:14)
OC60.CU-DLMT.7AF/H012 / STEP | stáhnout (zip, 2025-07-11 16:42:23)
OC60.CU-DLMT.7AF/H012 / IGES | stáhnout (zip, 2025-04-28 18:03:15)
ePlan macro - 11224610 | stáhnout (edz, 2023-09-20 09:54:45)
