O300.RL-PV1T.72N - Retro-reflective sensors - miniature

Name: AJP-tech spol. s.r.o.
Address: Hudcova 533/78c, Medlánky, Brno, 61200, CZ
Telephone: +420 544 525 210
Price range: $$

O300.RL-PV1T.72N - Retro-reflective sensors - miniature

retro-reflective sensor
5 m
pulsed red laser diode
PNP complementary
qTeach
connector M8 4 pin
-10 … 60 °C
IP 67

Objednací číslo: 11172803
Výrobce: Baumer Electric AG

Dostupnost: 4 ks

Můžete mít ihned. Možnost osobního odběru v pracovní dny od 8:00 do 16:00 na adrese firmy po předchozí telefonické dohodě.

Zboží odesíláme okamžitě. Zboží, které závazně objednáte v pracovních dnech do 11:00 hodin, vám odešleme ještě tentýž den.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák

Technik specialista pro průmyslové snímače
BAUMER

+420 733 533 400

jaroslav.dancak@ajptech.cz

Parametry

Nákresy

Diagramy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Typ:	Retro-reflective sensor
Zdroj světla:	Pulsed red laser diode
Skutečný rozsah Sb:	5 m
jmenovitý rozsah:	6 m
Opakovatelnost:	0.2 mm at 500 mm
Polarizační filtr:	Yes
Světelný indikátor:	LED yellow
Indikace napájení:	LED green
Nastavení citlivosti:	qTeach
Třída laseru:	1
Vzdálenost k zaostření paprsku:	Parallel beam
Vlnová délka:	656 nm
Potlačení vzájemného ovlivňování:	Yes
Odklon od osy:	< 2°

Elektrické parametry

Doba odezvy:	< 0.1 ms
Rozsah napájecího napětí +Vs:	11 - 30 VDC
Maximální spotřeba proudu (bez zátěže):	30 mA
Běžná spotřeba proudu:	25 mA
Pokles napětí Vd:	<2.5 VDC
Výstupní funkce:	Light / dark operate
Výstupní obvod:	PNP complementary
Výstupní proud:	100 mA
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes

Mechanické parametry

Šířka \| průměr:	12.9 mm
Výška \| Délka:	32.3 mm
Hloubka:	23 mm
Konstrukce:	Rectangular
Materiál pouzdra:	Plastic (ASA, PMMA)
Materiál krycího skla:	PMMA
Způsoby připojení:	Connector M8 4 pin

Okolní podmínky

Pracovní teplota:	-10 - +60 °C
Třída krytí:	IP 67

Nákresy

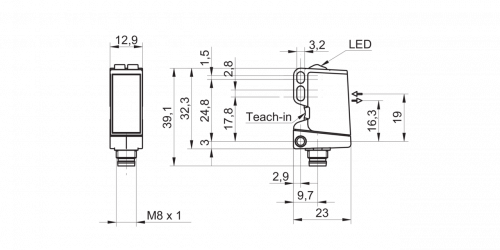

Výkresy

4050-O300-RL-S35A.png | stáhnout (png, 2025-07-12 00:14:31)

Diagram připojení

E-Zchn-0289-C-23.png | stáhnout (png, 2025-07-11 17:29:14)

Přiřazení pinů

Zchn-3743-2.png | stáhnout (png, 2025-07-11 16:31:40)

charakteristika paprsku (obvykle)

Zchn-6394.png | stáhnout (png, 2025-07-11 19:16:01)

Varování

Laserwarnung_1.png | stáhnout (png, 2025-07-11 20:18:31)

Diagramy

Křivka zesílení signálu

C_E_O300.RL_Funktionsreserve_2.png | stáhnout (png, 2025-07-11 23:38:39)
C_E_O300.RL_Funktionsreserve_1.png | stáhnout (png, 2025-07-11 23:38:38)

Ke stažení

Datový list

Data sheet – O300.RL-PV1T.72N | stáhnout | zobrazit (EN, pdf, 2025-04-11 11:36:52)
Data sheet – O300.RL-PV1T.72N | stáhnout | zobrazit (DE, pdf, 2025-04-11 11:36:52)
Data sheet – O300.RL-PV1T.72N | stáhnout | zobrazit (ZH, pdf, 2025-04-11 11:36:52)

Rychlý start

Quickstart – O300.RL-PV1T.72N | stáhnout | zobrazit (DE/EN/FR, pdf, 2025-04-11 12:09:32)

Certifikáty/ osvědčení

DoC / CoC - O300 | stáhnout | zobrazit (EN/DE/BG/CZ/DK/ES/FI/FR/GR/HU/IT/LT/LV/NL/NO/PL/PT/RO/SK/SI, pdf, 2025-04-11 11:36:47)

CAD

ePlan macro - 11172803 | stáhnout (edz, 2023-09-20 09:46:17)
