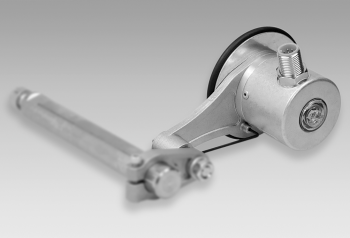

MA20

Name: AJP-tech spol. s.r.o.
Address: Hudcova 533/78c, Medlánky, Brno, 61200, CZ
Telephone: +420 544 525 210
Price range: $$

Encoder with 16 predefined resolutions
Max. 25000 pulses per revolution
Measuring wheel circumference 200 mm
Manual adjustment without any programming tool
Contact pressure seamlessly adjustable
Different degrees of rubber hardness for optimal grip

Objednací číslo: MA20
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ondřej Štěpánek

Produktový manažer
BAUMER

+420 733 101 651

ondrej.stepanek@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Elektrické vlastnosti

Napájecí napětí:	4.75...30 VDC
Spotřeba (typicky):	100 mA (24 VDC, w/o load)
Pulzů na otáčku:	100 - 25000
Typ snímání:	Optical
Výstupní frekvence:	≤300 kHz
Výstupní signál:	A 90° B
Výstupní signál \| rozhraní:	Push-pull antivalent, short-circuit proof (HTL)
Odolnost proti rušení dle:	EN 61000-6-2
Vyzařované rušení dle:	EN 61000-6-3

Mechanické provedení

Rozměr (příruby):	ø40 mm
Typ hřídele:	ø6 mm solid shaft
Ochrana EN 60529:	IP 64
Provozní rychlost:	≤3000 rpm
Velikost provozního točivého momentu.:	0.0075 Nm (3000 rpm / 20 °C)
Materiál:	Encoder housing: aluminium Measuring arm: Aluminium/steel Measuring wheel: Aluminium/NBR
Pracovní teplota:	-20...+85 °C
Relativní vlhkost:	95 % non-condensing
Odolnost:	EN 60068-2-6 Vibration 10 g, 10-200 Hz EN 60068-2-27 Shock 50 g, 11 ms
Připojení:	Connector M12, 8-pin Cable 2 m
Přibližná hmotnost:	100 g

Nákresy

Výkresy

2603-MA20_Kit.png | stáhnout (png, 2025-07-11 21:53:00)

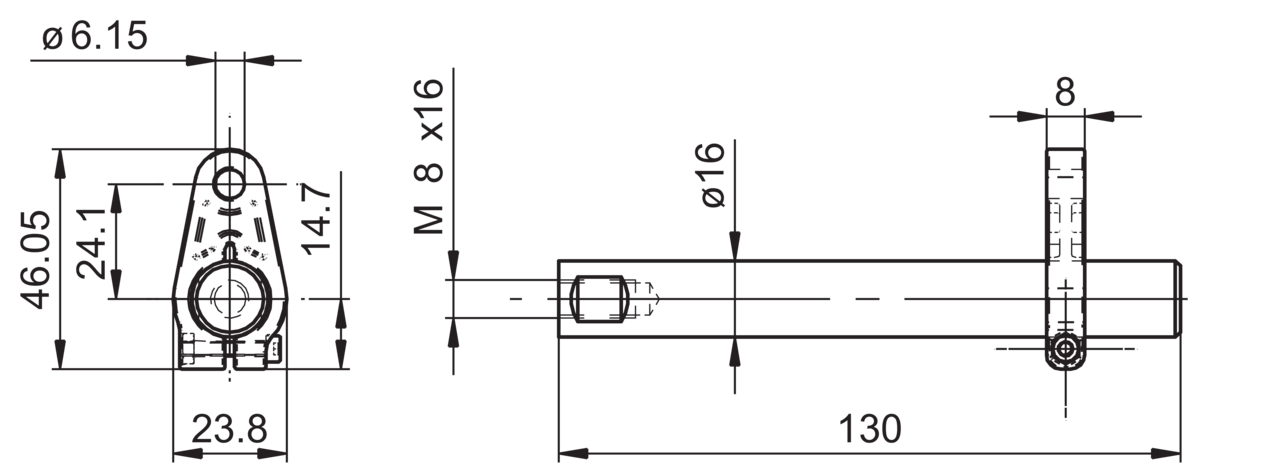

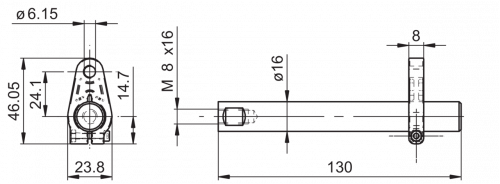

2997-11043871 Encoder Standoff Set.png | stáhnout (png, 2025-07-11 21:49:15)

Ke stažení

Datový list

MA20 | stáhnout | zobrazit (DE, pdf, 2025-04-11 11:34:13)
MA20 | stáhnout | zobrazit (EN, pdf, 2025-04-11 11:34:13)

Příslušenství

Obsahuje:Montážní příslušenství Kabely s volným koncem

Montážní příslušenství

Další podobné produkty naleznete v kategorii: Další příslušenství

Foto	Produkt (3) / Popis	Skladová dostupnost
	Encoder standoff set Obj. číslo: 11043871	na dotaz
	O-ring for wheel (shore 40), yellow Obj. číslo: 11047704	na dotaz
	O-ring for wheel (shore 70), black Obj. číslo: 11043772	na dotaz
