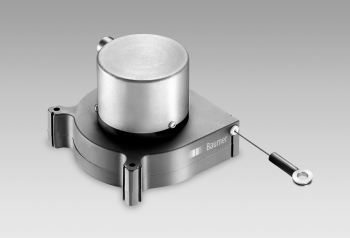

BMMS K50 analog

Name: AJP-tech spol. s.r.o.
Address: Hudcova 533/78c, Medlánky, Brno, 61200, CZ
Telephone: +420 544 525 210
Price range: $$

Magnetické snímání
Rozlišení 12 bitů
Analogové rozhraní 0...10 V / 0,5...4,5 V / 4...20 mA
Délka měření do 5 m
Odnímatelná část pro odtok vody
Vstupy pro učení
Extrémně lehké pouzdro z plastu a hliníku
K dispozici s redundantními absolutními signály

Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ondřej Štěpánek

Produktový manažer
BAUMER

+420 733 101 651

ondrej.stepanek@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Elektrické vlastnosti

Napájecí napětí:	8...30 VDC
Ochrana proti přepólování:	Yes
Odolnost proti zkratu:	Yes
Spotřeba (typicky):	35 mA (24 VDC, w/o load)
Čas inicializace:	≤ 500 ms after power on
Čas odezvy:	< 1 ms
Rozhraní:	Analog 0...10 V / 0.5...4.5 V / 4...20 mA / Resolution: 12 bit
Funkce:	Linear position feedback
Linearita:	±0.65 % full scale range (f.s.r.)
Absolutní přesnost:	±1.13 % f.s.o. (+25 °C) ±1.41 % f.s.o. (-40...+85 °C)
Typ snímání:	Magnetic
Typická opakovatelnost:	5 mm
Odolnost proti rušení dle:	EN 61000-6-2
Vyzařované rušení dle:	EN 61000-6-4
Programovatelné parametry:	Measuring range teachable
Testovací funkce:	Self-diagnosis Reading back voltage output
Tovární nastavení:	Entire measuring range Min. output at 0 m Max. output at 5 m

Mechanické provedení

Ochrana EN 60529:	IP 65 (encoder)
Materiál:	Encoder housing: aluminium Cable transducer housing: PA6 GF30 Cable: stainless steel cable coated with polyamide
Pracovní teplota:	-40...+85 °C
Životnost:	Typ. >500000 strokes
Měřicí vzdálenost:	5 m
Maximální zrychlení lanka:	≤50 m/s²
Průměr kabelu:	0.61 mm
Vtažná síla:	>3 N
Maximální přípustná síla vytažení:	≤9 N
Relativní vlhkost:	95 % temporary condensing
Odolnost:	EN 60068-2-6 Vibration 10 g, 10-2000 Hz EN 60068-2-27 Shock 50 g, 11 ms
Přibližná hmotnost:	400 g
Připojení:	Flange connector M12, 5-pin Flange connector M12, 8-pin Cable 2 m
Poloměr ohybu:	Cable: >55 mm
Speciální vlastnosti:	Coated electronic
Předpis:	Please consider the assembly instructions

Nákresy

Výkresy

3047-BMMS_K50_5_mit_Ring_EN.png | stáhnout (png, 2025-07-11 16:40:33)
2936-BMMS_K50_N_mit_Ring_EN.png | stáhnout (png, 2025-07-11 16:40:31)
3226-BMMS_K34_Ring_M_EN.png | stáhnout (png, 2025-07-11 16:40:35)

Ke stažení

Datový list

BMMS K50 analog - MAGRES redundant | stáhnout | zobrazit (DE, pdf, 2025-04-11 11:23:00)
BMMS K50 analog - MAGRES redundant | stáhnout | zobrazit (EN, pdf, 2025-04-11 11:23:00)

Rychlý start

BMMS - analog | stáhnout | zobrazit (DE/EN/FR/IT/ES, pdf, 2025-04-11 11:22:59)

Brožury / Katalogy

Brochure – Cable transducers – Linear distance measurement made easy | stáhnout | zobrazit (DE, pdf, 2024-04-04 16:26:06)
Brochure – Cable transducers – Linear distance measurement made easy | stáhnout | zobrazit (EN, pdf, 2024-04-04 16:26:06)

Prohlášení o shodě

DoC / CoC - BMMS | stáhnout | zobrazit (EN/DE/BG/CZ/DK/ES/FI/FR/GR/HU/IT/LT/LV/NL/NO/PL/PT/RO/SK/SI, pdf, 2025-04-11 11:22:59)
