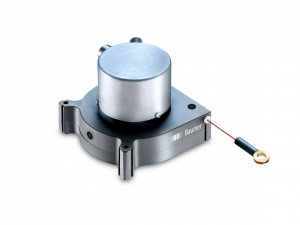

BMMS K34 CANopen®

Magnetic sensing method
Resolution: 0.1 mm/step
Interface CANopen®
Measuring length up to 3.4 m
Removable cabs for water outlet
Extremely light thanks to housing of plastic and aluminium
Available as redundant versions

Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ondřej Štěpánek

Produktový manažer
BAUMER

+420 733 101 651

ondrej.stepanek@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Elektrické vlastnosti

Napájecí napětí:	10...30 VDC
Spotřeba (typicky):	50 mA (24 VDC, w/o load)
Čas inicializace:	≤ 500 ms (not redundant) ≤ 800 ms (redundant)
Rozhraní:	CANopen®
Funkce:	Linear position feedback
Kompatibilita:	CANopen® CiA DSP 301, DSP 305, DS 406
Rozlišení:	0.1 mm/step
Linearita:	±0.52 % full scale range (f.s.r.)
Absolutní přesnost:	±0.93 % f.s.o. (+25 °C) ±1.02 % f.s.o. (-40...+85 °C)
Typ snímání:	Magnetic
Typ kódu:	Binary
Průběh kódu:	Programmable
Odolnost proti rušení dle:	EN 61000-6-2
Vyzařované rušení dle:	EN 61000-6-4
Programovatelné parametry:	Operating modes Total resolution Scaling
Testovací funkce:	Position or parameter error Multiturn sensing

Mechanické provedení

Ochrana EN 60529:	IP 65 (encoder)
Materiál:	Encoder housing: aluminium Cable transducer housing: PA6 GF30 Cable: stainless steel cable coated with polyamide
Pracovní teplota:	-40...+85 °C (not redundant) -40...+65 °C (redundant)
Životnost:	Typ. >500000 strokes
Měřicí vzdálenost:	3.4 m
Maximální zrychlení lanka:	≤50 m/s²
Průměr kabelu:	0.8 mm
Vtažná síla:	>3 N
Maximální přípustná síla vytažení:	≤9 N
Relativní vlhkost:	95 % temporary condensing
Odolnost:	EN 60068-2-6 Vibration 10 g, 10-2000 Hz EN 60068-2-27 Shock 50 g, 11 ms
Přibližná hmotnost:	400 g
Připojení:	Flange connector M12, 5-pin Cable 2 m
Poloměr ohybu:	Cable: >55 mm
Speciální vlastnosti:	Coated electronic
Předpis:	Please consider the assembly instructions
