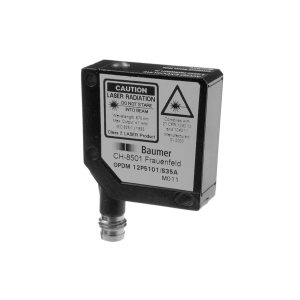

OPDM 12N5101/S35A - Retro-reflective sensors - miniature

Objednací číslo: 10132221, Výrobce: Baumer Electric AG

retro-reflective laser sensor
7 m
pulsed red laser diode
NPN
no
connector M8 4 pin
-10 … 50 °C
IP 67

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do poptávky

Poradím vám

Ing. Martin Bulenínec

Produktový specialista
Průmyslové snímače Baumer

+420 734 153 954

martin.buleninec@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Typ:	Retro-reflective laser sensor
Verze:	Single lens optics
Zdroj světla:	Pulsed red laser diode
Skutečný rozsah Sb:	7 m
jmenovitý rozsah:	8 m
Opakovatelnost:	0.1 mm at laser focus
Polarizační filtr:	Yes
Indikace znečištění:	Flashing light indicator
Světelný indikátor:	LED yellow
Indikace napájení:	LED green
Nastavení citlivosti:	No
Třída laseru:	2
Vzdálenost k zaostření paprsku:	400 mm
Vlnová délka:	650 nm

Elektrické parametry

Doba odezvy:	< 0.1 ms
Rozsah napájecího napětí +Vs:	10 - 30 VDC
Maximální spotřeba proudu (bez zátěže):	50 mA
Běžná spotřeba proudu:	40 mA
Pokles napětí Vd:	<1.8 VDC
Výstupní funkce:	Light / dark operate
Výstupní obvod:	NPN
Výstupní proud:	100 mA
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes

Mechanické parametry

Šířka \| průměr:	12.4 mm
Výška \| Délka:	35 mm
Hloubka:	35 mm
Design:	Rectangular
Materiál pouzdra:	Die-cast zinc
Materiál krycího skla:	Glass
Způsoby připojení:	Connector M8 4 pin

Okolní podmínky

Pracovní teplota:	-10 - +50 °C
Třída krytí:	IP 67
