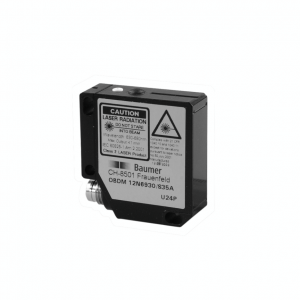

OBDM 12P6930/S35A - Difference sensors

Objednací číslo: 10158750, Výrobce: Baumer Electric AG

tolerance analysis
16 … 120 mm
pulsed red laser diode
PNP
Teach-in
connector M8 4 pin
50 °C
IP 67

Dostupnost: 1 ks (zobrazit skladovou dostupnost)

Můžete mít ihned. Možnost osobního odběru v pracovní dny od 8:00 do 16:00 na adrese firmy po předchozí telefonické dohodě.

Zboží odesíláme okamžitě. Zboží, které závazně objednáte v pracovních dnech do 11:00 hodin, vám odešleme ještě tentýž den.

+Přidat do poptávky

Poradím vám

Ing. Martin Bulenínec

Produktový specialista
Průmyslové snímače Baumer

+420 734 153 954

martin.buleninec@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Skladová dostupnost

Podobné produkty

Parametry

Základní parametry

Typ:	Tolerance analysis
Snímací vzdálenost:	16 - 120 mm
Teach-in rozsah - min.:	> 0.4 mm
Nastavení:	Teach-in
Indikace napájení:	LED green
Výstupní indikátor:	LED red
Zdroj světla:	Pulsed red laser diode
Třída laseru:	2
Vlnová délka:	650 nm
Rozměr paprsku:	0.5 - 0.2 mm

Elektrické parametry

Čas odezvy:	< 1 ms
Rozsah napájecího napětí +Vs:	12 - 28 VDC
Maximální spotřeba proudu (bez zátěže):	80 mA
Běžná spotřeba proudu:	40 mA
Výstupní obvod:	PNP
Výstupní proud:	100 mA
Pokles napětí Vd:	<2.8 VDC
Ochrana proti přepólování:	Yes, Vs to GND
Ochrana proti zkratu:	Yes

Mechanické parametry

Šířka \| průměr:	12.4 mm
Výška \| Délka:	37 mm
Hloubka:	34.5 mm
Design:	Rectangular
Materiál krycího skla:	Glass
Materiál pouzdra:	Die-cast zinc
Způsoby připojení:	Connector M8 4 pin

Okolní podmínky

Pracovní teplota:	0 - +50 °C
Třída krytí:	IP 67
