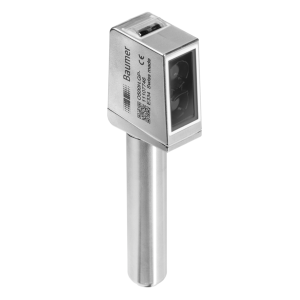

O500H.TR-ZZZZ.PVOK - Through beam sensors - hygiene

O500H.TR-ZZZZ.PVOK - Through beam sensors - hygiene
  • vysílač
  • senzor s průchozím paprskem
  • 25 m
  • pulsní červená LED dioda
  • Kabel s konektorem M12, L=200 mm
  • -25 … 60 °C
  • IP 68/69K & proTect+
Objednací číslo: 11167296
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Základní parametry

Typ: Through beam sensor
Speciální typ: Hygienic design
Vysílač / přijímač: Emitter
Zdroj světla: Pulsed red LED
Skutečný rozsah Sb: 25 m
jmenovitý rozsah: 40 m
Indikace napájení: LED green
Vlnová délka: 645 nm
Odklon od osy: < 1°
Schválení | Osvědčení:
  • Ecolab
  • Adapted from EHEDG

Elektrické parametry

Doba odezvy: < 0.49 ms
Rozsah napájecího napětí +Vs: 10 - 30 VDC
Maximální spotřeba proudu (bez zátěže): 40 mA
Běžná spotřeba proudu: 30 mA
Ochrana proti přepólování: Yes

Mechanické parametry

Šířka | průměr: 20.2 mm
Výška | Délka: 47.7 mm
Hloubka: 36.4 mm
Konstrukce: Rectangular
Materiál pouzdra: Stainless steel 1.4404 (V4A)
Materiál krycího skla: PMMA
Způsoby připojení: Flylead connector M12, L=200 mm

Okolní podmínky

Pracovní teplota: -25 - +60 °C
Třída krytí: IP 68/69K & proTect+
