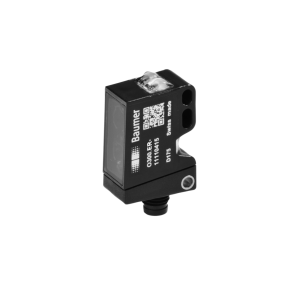

O300.ER-GW1B.72N - Through beam sensors - miniature

Objednací číslo: 11128044, Výrobce: Baumer Electric AG

receiver
through beam sensor
10 m
push-pull
qTeach / remote
connector M8 4 pin
-25 … 60 °C
IP 67

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do poptávky

Poradím vám

Ing. Martin Bulenínec

Vedoucí oddělení průmyslových snímačů a kamerových systémů
BAUMER | IOSS

+420 734 153 954

martin.buleninec@ajptech.cz

Parametry

Nákresy

Diagramy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Typ:	Through beam sensor
Vysílač / přijímač:	Receiver
Skutečný rozsah Sb:	10 m
jmenovitý rozsah:	15 m
Indikace znečištění:	Flashing light indicator
Světelný indikátor:	LED yellow
Indikace napájení:	LED green
Nastavení citlivosti:	qTeach / remote
Odklon od osy:	< 2°

Elektrické parametry

Doba odezvy:	< 0.49 ms
Rozsah napájecího napětí +Vs:	10 - 30 VDC
Maximální spotřeba proudu (bez zátěže):	40 mA
Běžná spotřeba proudu:	30 mA
Pokles napětí Vd:	<3 VDC
Výstupní funkce:	Light / dark operate
Výstupní obvod:	Push-pull
Výstupní proud:	100 mA
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes

Mechanické parametry

Šířka \| průměr:	12.9 mm
Výška \| Délka:	32.3 mm
Hloubka:	23 mm
Design:	Rectangular
Materiál pouzdra:	Plastic (ASA, PMMA)
Materiál krycího skla:	PMMA
Způsoby připojení:	Connector M8 4 pin

Okolní podmínky

Pracovní teplota:	-25 - +60 °C
Třída krytí:	IP 67

Příslušenství

Obsahuje:Vhodný vysílač Periferie Montážní příslušenství Kabely s volným koncem LED-Kabely s volným koncem Kabely

Vhodný vysílač
