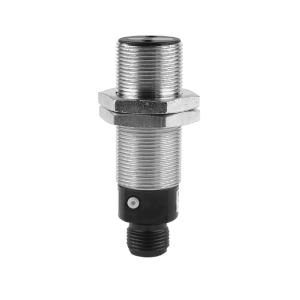

FZAM 18N6460/S14 - Diffuse sensors with intensity difference

Objednací číslo: 10128875, Výrobce: Baumer Electric AG

intensity difference
60 … 430 mm
pulsed infrared diode
NPN
Teach-in
connector M12 4 pin
-25 … 55 °C
IP 67

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do poptávky

Poradím vám

Ing. Martin Bulenínec

Produktový specialista
Průmyslové snímače Baumer

+420 734 153 954

martin.buleninec@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Typ:	Intensity difference
Zdroj světla:	Pulsed infrared diode
Snímací vzdálenost:	60 - 430 mm
Snímací vzdálenost Tw:	80 - 800 mm
Indikace znečištění:	Flashing light indicator
Světelný indikátor:	LED green
Výstupní indikátor:	LED yellow
Nastavení citlivosti:	Teach-in
Vlnová délka:	880 nm
Potlačení vzájemného ovlivňování:	Yes

Elektrické parametry

Doba odezvy:	< 1 ms
Rozsah napájecího napětí +Vs:	10 - 30 VDC
Maximální spotřeba proudu (bez zátěže):	55 mA
Běžná spotřeba proudu:	40 mA
Pokles napětí Vd:	< 1.8 VDC

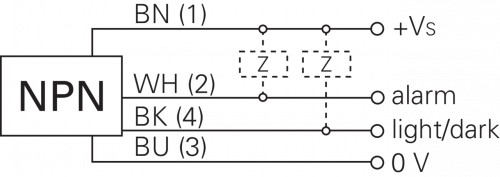

Výstupní funkce:	Light / dark operate, alarm
Výstupní obvod:	NPN
Výstupní proud:	< 200 mA
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes

Mechanické parametry

Šířka \| průměr:	18 mm
Výška \| Délka:	60 mm
Typ:	Cylindrical threaded
Materiál pouzdra:	Brass nickel plated / PC
Materiál krycího skla:	PC
Způsoby připojení:	Connector M12 4 pin

Okolní podmínky

Třída krytí:	IP 67
Pracovní teplota:	-25 - +55 °C
