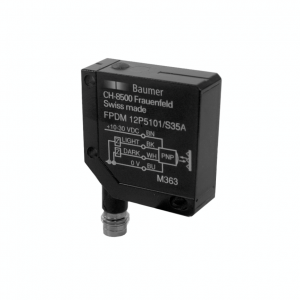

FPDM 12P5101/S35A - Retro-reflective sensors - miniature

Objednací číslo: 10234192, Výrobce: Baumer Electric AG

retro-reflective sensor
5 m
pulsed red LED
PNP
no
connector M8 4 pin
-25 … 65 °C
IP 67

Dostupnost: 1 ks (zobrazit skladovou dostupnost)

Můžete mít ihned. Možnost osobního odběru v pracovní dny od 8:00 do 16:00 na adrese firmy po předchozí telefonické dohodě.

Zboží odesíláme okamžitě. Zboží, které závazně objednáte v pracovních dnech do 11:00 hodin, vám odešleme ještě tentýž den.

+Přidat do poptávky

Poradím vám

Ing. Martin Bulenínec

Produktový specialista
Průmyslové snímače Baumer

+420 734 153 954

martin.buleninec@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Skladová dostupnost

Podobné produkty

Parametry

Základní parametry

Typ:	Retro-reflective sensor
Zdroj světla:	Pulsed red LED
Skutečný rozsah Sb:	5 m
jmenovitý rozsah:	5.2 m
Polarizační filtr:	Yes
Indikace znečištění:	Flashing light indicator
Světelný indikátor:	LED yellow
Nastavení citlivosti:	No
Vlnová délka:	660 nm
Potlačení vzájemného ovlivňování:	Yes

Elektrické parametry

Doba odezvy:	< 1 ms
Rozsah napájecího napětí +Vs:	10 - 30 VDC
Maximální spotřeba proudu (bez zátěže):	35 mA
Běžná spotřeba proudu:	25 mA
Pokles napětí Vd:	<1.8 VDC
Výstupní funkce:	Light / dark operate
Výstupní obvod:	PNP
Výstupní proud:	100 mA
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes

Mechanické parametry

Šířka \| průměr:	12.4 mm
Výška \| Délka:	35 mm
Hloubka:	35 mm
Design:	Rectangular
Materiál pouzdra:	Die-cast zinc
Materiál krycího skla:	PMMA
Způsoby připojení:	Connector M8 4 pin

Okolní podmínky

Pracovní teplota:	-25 - +65 °C
Třída krytí:	IP 67
