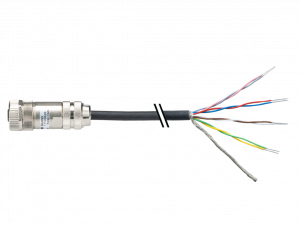

ESG 34FH2000GVS

M12, female, A-coded, 8-poles; PUR, 2000 cm, shielded, free cable end
Head A: IP67
Cable: Twisted pairs, halogen free

Objednací číslo: 11091511
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák

Technik specialista pro průmyslové snímače
BAUMER

+420 733 533 400

jaroslav.dancak@ajptech.cz

Parametry

Nákresy

Ke stažení

Podpora

Podobné produkty

Parametry

Strana A

Hlava A: Připojení:	M12
Hlava A: Úhlový vývod:	0°
Hlava A: Pohlaví:	Female
Hlava A: Kódování:	A
Hlava A: Počet pólů:	8
Hlava A: LED:	No
Hlava A: Šířka:	AF18
Hlava A: Utahovací moment:	0.6 Nm
Hlava A: Vroubkovaná matice:	CuZn,Ni
Označovací strana A:	No

Strana B

Hlava B: Připojení:	Open-ended wires
Side B: Stripping length wire 1:	10 mm
Side B: Stripping length wire 2:	10 mm
Side B: Stripping length wire 3:	10 mm
Side B: Stripping length wire 4:	10 mm
Side B: Stripping length wire 5:	10 mm
Side B: Stripping length wire 6:	10 mm
Side B: Stripping length wire 7:	10 mm
Side B: Stripping length wire 8:	10 mm
Označovací strana B:	No

Kabely

Délka kabelu:	2000 cm
Délka odizolování:	60 mm
Stíněný:	Yes
Struktura vodičů:	18 × 0.10 mm
AWG:	26
Vnější plášť: Materiál:	PUR
Vnější plášť: Barva:	Black
Průměr kabelu:	6.0 mm ± 5%
Průřez vodičů:	0.14 mm²

Kabel

Vnější plášť: Tvrdost (Shore):	0 0
Provozní napětí:	30 V AC/DC
Umožňuje napájení přes ethernetový kabel (PoE):	2 A
Průměru kabelu s tolerancí:	Ø 6.0 ± 0.3 mm
Weight [conductor]:	42 g/m
Stíněný:	Yes
Stínění: Pokrytí:	85 %
Ohýbací rádius (pevná instalace):	45 mm
Počet vodičů:	8
Délka kabelu:	2000 cm
AWG:	26
Struktura vodičů:	18 × 0.10 mm
Průměr kabelu:	6.0 mm ± 5%
Izolační odpor:	min. 0.2 MOhm x m
Vnější plášť: Materiál:	PUR
Izolace: Materiál:	TPE
Stínění: Materiál:	Copper, tinned
Provozní proud na vodič:	1.5 A
Paired stranding:	Yes
Paired stranding info:	(WH, BN); (GN, YE); (GY, PK); (BU, RD)
Průměr jednoho vodiče:	0.1 mm
Kabel: Zkušební napětí:	2 kV 0
Průřez vodičů:	0.14 mm²
Délka odizolování vodičů:	10 mm
Průměr vodiče včetně izolace:	0.9 mm ± 5%
Vnější plášť: Barva:	Black

Elektrické parametry

Pracovní napětí:	max. 30 V AC 0
Provozní napětí:	30 V AC/DC
Provozní proud na kontakt:	max. 1.5 A

Mechanické parametry

Hlava A: Stupeň ochrany:

IP67

Podmínky prostředí

Rozsah teplot:	-40 ...+ 90 °C
Rozsah teplot (fixní instalace):	- 25 ...+ 85 °C
Možná pohyblivá instalace:	No
Hlava A: Stupeň znečištění:	3
Cable: UV resistance:	Yes
