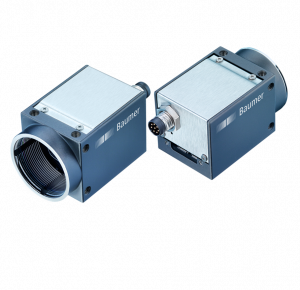

VCXU-51C

VCXU-51C
  • 2448 x 2048 px
  • Sony IMX264
  • 2/3" CMOS
  • 35 fps
  • USB 3.0
Objednací číslo: 11164501
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jakub Sedlmajer
Ing. Jakub Sedlmajer
Produktový specialista pro průmyslové čtečky a kamerové systémy
BAUMER | IOSS
Ing. Jakub Sedlmajer - QR Kontakt
+420 739 087 013
jakub.sedlmajer@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Informace o snímači

Snímač: Sony IMX264 Gen2
Mono/Color: Color
Typ snímače: 2/3″ CMOS
Typ závěrky: Global shutter
Rozlišení: 2448 × 2048 px
Rozměry pixelu: 3.45 × 3.45 µm
Expoziční čas: 0.001 - 60000 ms

Kvalita dat (EMVA 1288)

Temný šum: 2.17 e-
Saturační kapacita: 10632 e-
Dynamický rozsah: 71.4 dB
Poměr signál/šum: 40.3 dB
Kvantová účinnost:
  • 47.4 % @ 465 nm
  • 58.4 % @ 536 nm
  • 54 % @ 631 nm

Formáty obrazu

Formáty obrazu, max. frekvence snímků na komunikačním rozhraní:
  • Full Frame, 2448 × 2048 px, max. 35 fps
  • Binning 2×2, 1224 × 1024 px, max. 35 fps
  • Binning 2×1, 1224 × 2048 px, max. 35 fps
  • Binning 1×2, 2448 × 1024 px, max. 35 fps
Formáty obrazu, maximální frekvence sběru snímků (Burst Mód):
  • Full Frame, 2448 × 2048 px, max. 35 fps
  • Full Frame, 2448 × 2048 px, max. 35 fps
Formát pixelu:
  • BayerRG8
  • BayerRG10
  • BayerRG12
  • BayerRG12 Packed
  • Mono8
  • Mono10
  • Mono12
  • Mono12 Packed
  • RGB8
  • BGR8

Předzpracování obrazu

Analogové ovládací prvky:
  • Gain (0 - 48 dB)
  • Offset (0 - 255 LSB 12 Bit)
Barevné modely:
  • Mono
  • Raw Bayer
  • RGB

Funkce kamery

Základní funkce:
  • Exposure
  • Gain / Color Gain
  • Trigger / Exposure Active (Flash)
  • Binning 2x2
  • Partial Scan
  • Offset
  • Free Running Mode (Live Image)
Automatické funkce:
  • Exposure Auto
  • Gain Auto
  • White Balance Auto
  • Color Transformation Auto
Předzpracování obrazu:
  • Image Flipping (X/Y)
  • Color Processing (RGB, BGR, Mono)
  • Color Enhancement (with optimized ColorTransformationMatrix)
  • LUT / Gamma
Akvizice / Rozhraní:
  • Burst Mode
  • Adjustable Framerate
  • Short Exposure Time Enable
  • Device Link Throughput Limit
  • Internal Image Buffer
Synchronizace:
  • free running
  • trigger
Zdroje spouštěcího signálu (trigger):
  • Hardware
  • Software
Zpoždění spouštěcího signálu (trigger): 0 - 2 s, tracking and buffering of up to 256 trigger signals
Procesní synchronizace:
  • Events
  • Timer
  • Trigger Delay
  • Debouncer
  • Counter
  • Sequencer
  • Trigger via Action CMD (GigE)
  • Additional Output Modes (e.g. Trigger Ready)
  • Chunk data inside transferred image
  • Encoder support via Counter End trigger source
Další funkce:
  • User Set
  • Integrated temperature sensor
  • Readable additional information (e.g. sensor information)
  • Save Custom Data
Interní vyrovnávací paměť:
  • 445 MB
  • 31 images (Trigger Mode)
  • 1 image (Free Running Mode)

Rozhraní a připojení

Datové rozhraní: USB 3.0, Transfer Rate 5000 Mbits/sec, Connector: USB 3.0 Micro B
Rozhraní: M8 / 8 pins (SACC-DSI-M8MS-8CON-M8-L180)
Napájení: via USB 3.0 interface

Mechanické parametry

Závit objektivu: C-mount
Šířka: 29 mm
Výška: 29 mm
Hloubka: 38 mm
Hmotnost: ≤ 90 g
Materiál: zinc die casting, baked varnish (until 02-2020 nickel-chrome-plated), IP 40

Elektrické parametry

Spotřeba energie: Approx. 2.7 W @ 75 fps
Pracovní napětí: 5 VDC (via USB3.0 interface)

Nevolatilní paměť

Velikost flash paměti: 128 kB

Podmínky prostředí

Pracovní teplota: 0 - +65 ° @ T = measurement point
Skladovací teplota: -20 - +70 °C
Vlhkost: 10 - 90 % (non-condensing)
Třída krytí: IP 40 (with mounted lens and cable)

Digitální vstupy|výstupy

Linky:
  • 1 input line
  • 1 output line
  • 2 general purpose lines

Prohlášení o shodě

Prohlášení o shodě:
  • CE
  • RoHS
  • KC (MISP-REI-BkR-VCXU-50M)
  • EAC
  • BIS-CRS (R-41207004)
