ajptech.cz > Produkty > Průmyslové kamery > Instalační doplňky > Příslušenství > Kabely > Adapter Cable TX to VCXG.I VLXT

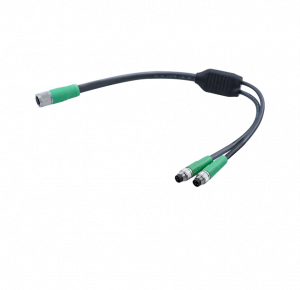

Adapter Cable TX to VCXG.I VLXT

Adapter to connect VCXG.I or VLXT cameras to existing TXG cabling
Split cable M12/12-pin male connector to 1x M8/3-pin female connector (power) and 1x M8/4-pin female connector (I/Os)
Protection class IP65/IP67
Length 0.4 m

Objednací číslo: 11701126
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jakub Sedlmajer

Produktový specialista pro průmyslové čtečky a kamerové systémy
BAUMER | IOSS

+420 739 087 013

jakub.sedlmajer@ajptech.cz

Parametry

Nákresy

Diagramy

Ke stažení

Podpora

Podobné produkty

Parametry

Elektrické parametry

Konektory:

M12/12-pin male connector
M8/3-pin female connector
M8/4-pin female connector

Mechanické parametry

Rozměry:	distribution part 50 mm x 26 mm x 13 mm
nejmenší poloměr ohybu:	42.5 mm (cable with M12/12-pin male connector) 22 mm (cable with M8/3-pin female connector) 22 mm (cable with M8/4-pin female connector)
instalace s nejmenším poloměrem ohybu:	85 mm (cable with M12/12-pin male connector) 44 mm (cable with M8/3-pin female connector) 44 mm (cable with M8/4-pin female connector)
Počet ohybových cyklů:	M12/12-pin: 2000000 M8/3-pin: 10000000 M8/4-pin: 10000000
použitelné pro pohyblivé vedení:	yes
Délka kabelu [m]:	0.4 m
Průřez vodiče:	12 × 0.14mm² 3 × 0.25mm² 4 × 0.25mm²
Materiál:	TPU PUR, halogen-free

Podmínky prostředí

Pracovní teplota (pohyblivá instalace):	-5 - +75 °C
Pracovní teplota:	-25 - +75 °C
Třída krytí:	IP 65/67 (mounted)
