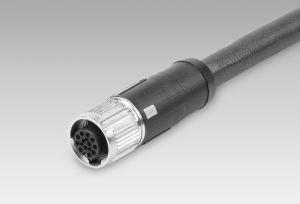

Female connector M12, 12-pin, straight, shielded, 2 m cable (ESG 34JP0200G)

Female connector M12 with screwable nut
With or without cable (shielded) in different lengths

Objednací číslo: 11048452
Výrobce: Baumer Electric AG

Dostupnost: 1 ks (zobrazit skladovou dostupnost)

Můžete mít ihned. Možnost osobního odběru v pracovní dny od 8:00 do 16:00 na adrese firmy po předchozí telefonické dohodě.

Zboží odesíláme okamžitě. Zboží, které závazně objednáte v pracovních dnech do 11:00 hodin, vám odešleme ještě tentýž den.

+Přidat do nezávazné poptávky

Poradím vám

Ondřej Štěpánek

Produktový manažer
BAUMER

+420 733 101 651

ondrej.stepanek@ajptech.cz

Parametry

Nákresy

Ke stažení

Podpora

Podobné produkty

Parametry

Technické informace

Jmenovité napětí:	30 V
Jmenovitý proud:	1.5 A
Průměr vodiče:	1.00 +0.05 mm
Rozdělení vodičů:	12 x 0.14 mm²
Délka kabelu:	2 m, 5 m, 10 m (further length upon request)
Poloměr ohybu:	85 mm
Vnější průměr:	8.5 mm
Izolační odpor:	≥100 MΩ
Odpor vodičů:	142 Ω/km (20 °C)
Materiál:	Cable sheath: PUR black

Mechanické provedení

Ochrana EN 60529:

IP 65
IP 68
IP 69K

Foto	Produkt (49) / Popis	Skladová dostupnost
	Cable connector M12, 4-pin, angled, D-coded, without cable (Z 185.S02) For cable diameter 4...8 mm Ready-made connector	na dotaz
	Cable connector M12, 4-pin, on both sides, D-coded, 1 m cable (Z 185.E01) Cable connector M12, 4-pin, for EtherNet encoder With shielded cable Cable for flexible cable carriers Protection IP 67	na dotaz
	Cable connector M12, 4-pin, on both sides, D-coded, 10 m cable (Z 185.E10) Cable connector M12, 4-pin, for EtherNet encoder With shielded cable Cable for flexible cable carriers Protection IP 67	na dotaz
	Cable connector M12, 4-pin, on both sides, D-coded, 2 m cable (Z 185.E02) Cable connector M12, 4-pin, for EtherNet encoder With shielded cable Cable for flexible cable carriers Protection IP 67	na dotaz
	Cable connector M12, 4-pin, on both sides, D-coded, 5 m cable (Z 185.E05) Cable connector M12, 4-pin, for EtherNet encoder With shielded cable Cable for flexible cable carriers Protection IP 67	na dotaz
	Cable connector M12, 4-pin, straight, D-coded, without cable (Z 185.S01) For cable diameter 4...8 mm Ready-made connector	na dotaz
	Cable connector M12, 5-pin, angled	na dotaz
	Cable connector M12, 5-pin, CAN, angled	na dotaz
	Cable connector M12, 5-pin, CAN, straight	na dotaz
	Cable connector M12, 5-pin, straight	na dotaz
	Cable connector male M12, 5-pin, A-coded, 5 m cable, connection continuative bus (Z 181.005) Cable connector M12 male, 5-pin, A-coded With cable (shielded) in different lengths	na dotaz
	Cable connector/connector M12, EtherCAT, straight, 5 m	na dotaz
	Cable with connector D-SUB/mating M12, Profibus, straight, B-coded, 3 m	na dotaz
	Cable with male/female M12, 5-pin, angled, A-coded, 2 m	na dotaz
	Cable with male/female M12, 5-pin, straight, A-coded, 200 cm M12, male, A-coded; 5-poles; PUR, 200 cm; M12, female, A-coded; 5-poles Dragchain capable; Head A: IP65, IP67; Head B: IP65, IP67 Suiteable for CANopen and DeviceNet Halogen free	na dotaz
	Cable with male/female M12, 5-pin, straight, A-coded, 30 cm (stub line) M12, male, A-coded; 5-poles; PUR, 30 cm; M12, female, A-coded; 5-poles Dragchain capable; Head A: IP65, IP67; Head B: IP65, IP67 Suiteable for CANopen and DeviceNet Halogen free	na dotaz
	Cable with male/female M12, 5-pin, straight, A-coded, 500 cm M12, male, A-coded; 5-poles; PUR, 500 cm; M12, female, A-coded; 5-poles Dragchain capable; Head A: IP65, IP67; Head B: IP65, IP67 Suiteable for CANopen and DeviceNet Halogen free	na dotaz
	Cable with male/female M12, angled, A-coded, 1 m	na dotaz
	Cable with male/female M12, angled, A-coded, 10 m	na dotaz
	Cable with male/female M12, Profibus, angled, B-coded, 2 m	na dotaz
	Cable with male/female M12, Profibus, angled, B-coded, 5 m	na dotaz
	Cable with male/female M12, Profibus, straight, B-coded, 0.3 m (stub line)	na dotaz
	Connection cable 10 m shielded with female connector M12, 8-pin, angled (ESW 33FH1000G) Connection cable shielded with female connector M12, shielding on cap nut Cable length 10 m 8-pin version Cable coating PUR Halogen-free Suitable for flexible cable carriers UL listed, number E315836	na dotaz
	Connection cable 10 m shielded with female connector M12, 8-pin, straight (ESG 34FH1000G) Connection cable shielded with female connector M12, shielding on cap nut Cable length 10 m 8-pin version Cable coating PUR Halogen-free Suitable for flexible cable carriers UL listed, number E315836	na dotaz
	Connection cable 5 m shielded with female connector M12, 8-pin, straight (ESG 34FH0500G) Connection cable shielded with female connector M12, shielding on cap nut Cable length 5 m 8-pin version Cable coating PUR Halogen-free Suitable for flexible cable carriers UL listed, number E315836	> 15 ks
	Connection cable connector M12 / connector D-SUB, 0.2 m Connecting cable shielded with connector M12, 8-pin, female contacts on connector D-SUB, 9-pin, male contacts	1 ks
	Connection cable connector M12 / connector D-SUB, 1 m Connecting cable shielded with connector M12, 8-pin, female contacts on connector D-SUB, 9-pin, male contacts	na dotaz
	Connection cable with coupling M12, 4-pin, 0.7 m Screened connection cable with coupling M12, 4-pin UL/CSA - approval Temperature range -20...+85 °C (-30...+85 °C with fixed installation) Assembly by customer possible	na dotaz
	Connection cable with coupling M12, 8-pin, 1 m Shielded connection cable with coupling M12, 8-pin UL/CSA certification Temperature range -20...+100 °C (-40...+100 °C with fixed installation) Assembly by customer possible	na dotaz
	Female connector M12, 12-pin, 1 m cable (Z 201.M01) Female connector M12 with screwable nut With shielded cable Cable for flexible cable carriers Protection IP 67, IP 69K	na dotaz
	Female connector M12, 12-pin, 10 m cable (Z 201.M10) Female connector M12 with screwable nut With shielded cable Cable for flexible cable carriers Protection IP 67, IP 69K	na dotaz
	Female connector M12, 12-pin, 5 m cable (Z 201.M05) Female connector M12 with screwable nut With shielded cable Cable for flexible cable carriers Protection IP 67, IP 69K	na dotaz
	Female connector M12, 12-pin, A-coded, 10 m cable (Z 192.007) Female connector M12 with screwable nut With cable (shielded) in different lengths	na dotaz
	Female connector M12, 12-pin, straight, shielded, 10 m cable (ESG 34JP1000G) Female connector M12 with screwable nut With or without cable (shielded) in different lengths	na dotaz
	Female connector M12, 12-pin, straight, shielded, 2 m cable (ESG 34JP0200G) Female connector M12 with screwable nut With or without cable (shielded) in different lengths	1 ks
	Female connector M12, 12-pin, straight, without cable Female connector M12 with screwable nut With or without cable (shielded) in different lengths	na dotaz
	Female connector M12, 4-pin, angled, A-coded, 2 m PUR cabel, halogen-free Cable for flexible cable carriers	8 ks
	Female connector M12, 4-pin, straight, A-coded, 2 m PUR cabel, halogen-free Cable for flexible cable carriers	2 ks
	Female connector M12, 5-pin, A-coded, 10 m cable (Z 180.007) Female connector M12 with screwable nut With cable (shielded) in different lengths	na dotaz
	Female connector M12, 5-pin, A-coded, 2 m cable (Z 180.003) Female connector M12 with screwable nut With cable (shielded) in different lengths	na dotaz
	Female connector M12, 5-pin, A-coded, 5 m cable (Z 180.005) Female connector M12 with screwable nut With cable (shielded) in different lengths	na dotaz
	Female connector M12, 5-pin, angled	na dotaz
	Female connector M12, 5-pin, CAN, angled	na dotaz
	Female connector M12, 5-pin, straight	na dotaz
	Female connector M12, 5-pin, straight, shielded, 5 m cable Female connector M12, 5-pin, straight	1 ks
	Female connector M12, 5-pin, straight, without cable Female connector M12, 5-pin, straight	1 ks
	Female connector M12, 8-pin, straight, without cable	na dotaz
	Terminating resistor CAN	na dotaz
	Terminating resistor Profibus	na dotaz
